A WORKSTATION WONDERLAND

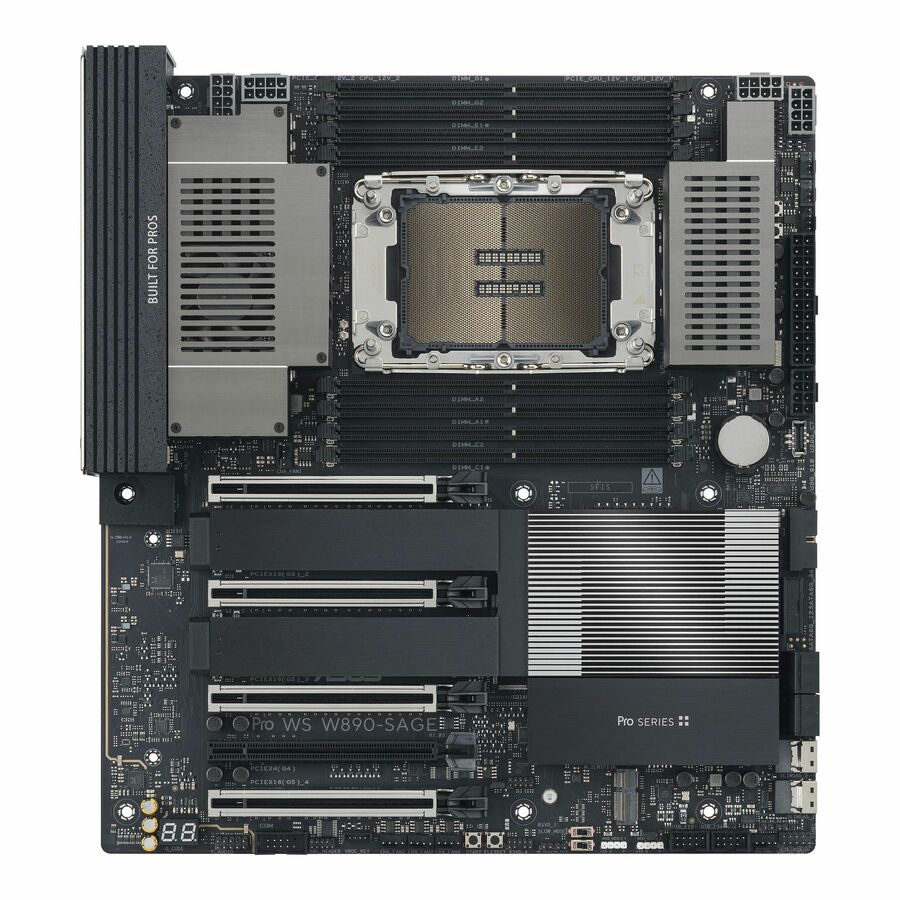

The Pro WS W890-SAGE workstation motherboard is deftly tailored for creative professionals, developers and engineers, unleashing the dominate performance of the latest Intel Xeon processors, with CPU and memory overclocking capability. Featuring an optimized memory trace layout, advanced power stage design, ready for server-grade IPMI remote management, and ultrafast PCle 5.0 and networking connectivity, Pro WS W890-SAGE melds no-compromise engineering with incredible aesthetics, and comes prepared for a wide array of scenarios and industries.
Pro WS W890-SAGE motherboard goes above and beyond the ordinary with a painstakingly cultivated collection of hardware validations to help ensure that your workstation build supports a wide variety of memory, cooler, chassis, PSU and other devices.
ULTRAFAST CONNECTIVITY | Multi-GPU Support
The Pro WS W890-SAGE motherboard features four PCIe 5.0 x16 slots that provide flexible system configurability and expandability. With high-powered graphics cards, it can bring enhanced performance in modelling, simulation and rendering applications.
ULTRAFAST CONNECTIVITY | Ultrafast Networking | Intel® E610-XAT2 dual 10 Gb Ethernet
Dual Ethernet ports provide fast data transfers simultaneously for 2.5 Gb internet streaming or uploading and 10 Gb for local network-attached storage (NAS), allowing for improved data organization and security.
USB 20 Gbps with USB Type-C®
The front panel connectors offer a transfer rate of up to 20 Gbps.
- Intel LGA4710-2 EEB workstation motherboard, 4 PCIe 5.0 x16 slots, multi-GPU support, robust 12+2+2+1+2 power-stage design, CPU and memory overclocking ready, 4 PCIe 5.0 M.2 slots, dual 10 Gb LAN, SlimSAS
- Ready for Advanced AI PC:
- Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- Intel
- ®
- LGA4710-2 Socket Supports up to 86-Core CPUs
- : Ready for Intel®Xeon®600 Processors for Workstation.
- Ultrafast Connectivity:
- Four PCIe®5.0 x16 slots, 10Gb and 2.5Gb LAN ports, four M.2 slots, two rear USB4®40Gbps Type-C®, and SlimSAS NVMe support.
- CPU and Memory Overclocking:
- Support for up to 4TB ECC R-DIMM DDR5 memory modules (2DPC).
- Robust Power and Thermal Design:
- 12+2+2+1+2 power stages for the CPU and ready for dual-PSU operation, massive VRM, chipset and M.2 heatsinks with an active fan, M.2 backplate and thermal pad.
- Ready for Server-Grade IPMI Remote Management:
- hardwa
| Brand | |
|---|---|
| Brand | ASUS Computer International |
| CPU / Processor | |
|---|---|
| Processor Supported | Xeon |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-4710-2 |
| GPU / Graphics | |
|---|---|
| Onboard Video | CPU Dependent Video |
| Memory / RAM | |
|---|---|
| Memory Technology | DDR5 SDRAM |
| Memory Form Factor | RDIMM |
| Number of Memory Slots | 8 |
| Error Checking | ECC |
| Maximum Memory Supported | 4 TB |
| Storage | |
|---|---|
| RAID Supported | Yes |
| RAID Levels | 10 |
| Networking & Connectivity | |
|---|---|
| Wireless LAN | No |
| USB Ports | |
|---|---|
| Number of USB 3.2 Gen 2 Type- | 6 |
| Total Number of Onboard USB P | 6 |
| Number of Onboard USB 2.0 Por | 4 |
| Total Number of USB Ports | 10 |
| Number of USB 2.0 Ports | 2 |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Gigabit Ethernet | Yes |
| 10Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Audio | |
|---|---|
| Audio Channels | 7.1 |
| Size / Dimensions | |
|---|---|
| Form Factor | SSI EEB |
| General Features | |
|---|---|
| Chipset Manufacturer | Intel |
| Chipset Model | W890 |
| AI-powered | Yes |
| Controller Type | Serial ATA/600 |
| Manufacturer | ASUS Computer International |
| Brand Compatibility | Intel |
| Expansion Slots | |
|---|---|
| Number of PCI Express x16 Slo | 5 |
| Total Number of PCI Express S | 5 |
| Total Number of Expansion Slots | 5 |
| PCI Express Standard | PCI Express 4.0 |
| Misc Ports | |
|---|---|
| Number of M.2 Interfaces | 4 |
| Number of SATA Interfaces | 4 |
