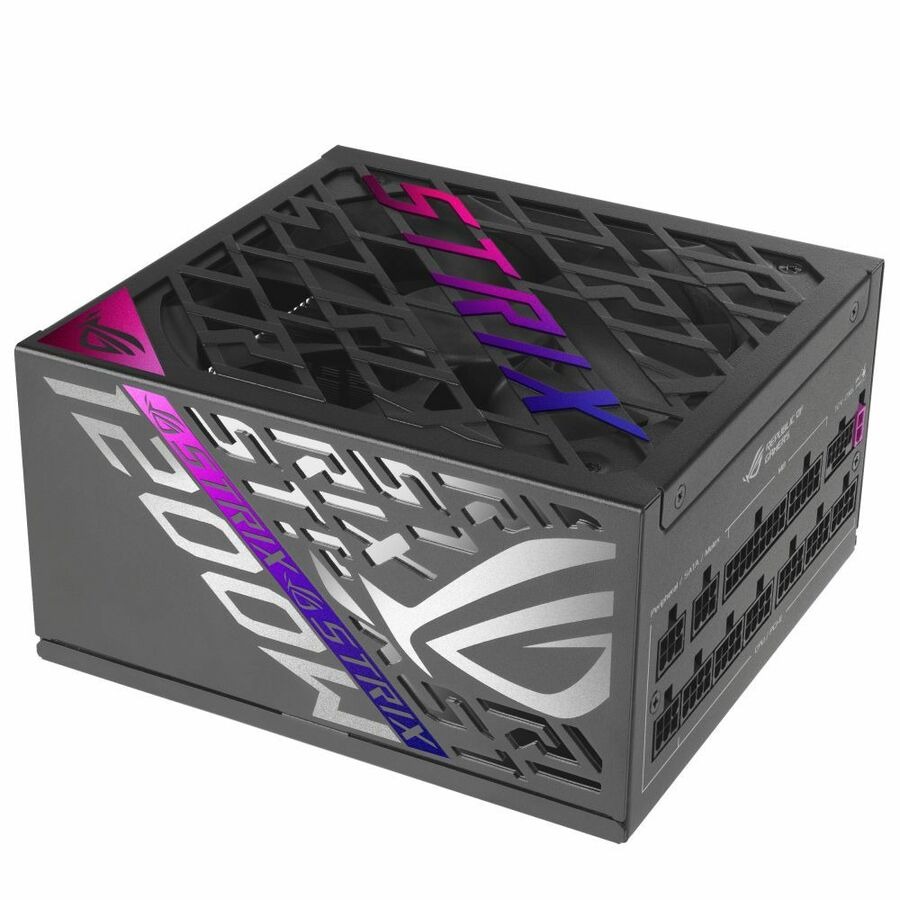

ROG STRIX 1200W PLATINUM (ROG EQUALIZER) | Superior Stability. Next-Level Efficiency
The ROG Strix 1200W Platinum PSU delivers the top-tier performance and unwavering stability demanded by gamers. Featuring a next gen GaN MOSFET for premium power efficiency, it also incorporates the patented GPU-First Intelligent Voltage Stabilizer to maintain a steady and reliable flow of power to the graphics card.
The ROG Strix 1200W Platinum further includes the ROG Equalizer, a patented 12V-2x6 PCIe power cable engineered to reduce heat stress and keep cable and connector temperatures well to protect the graphics card. With full ATX 3.1 compliance and a native 12V-2x6 connector, the ROG Strix Platinum Series ensures your high-end rig has the power to conquer any challenge.
GaN MOSFET
Improved power efficiency, lower energy waste.
Patented GPU-First Intelligent Voltage Stabilizer
Enhanced voltage stability for unwavering performance.
- 80 PLUS Platinum
- Cybenetics Platinum
- Cybenetics Lambda A
- ATX 3.1 Compatible
- PCIe 5.1® Compatible
- GeForce RTX™ 50 and Radeon™ RX 9000 Ready
Patented ROG Equalizer PCIe Power Cable
Engineered to reduce heat stress and keep cable and connector temperatures well to protect the graphics card.
EXCLUSIVE FEATURES | GaN MOSFET
The ROG Strix Platinum PSU boasts an innovative GaN MOSFET that increases power efficiency by up to 30%, resulting in lower energy waste. Plus, the smaller size of a GaN MOSFET allows for a more organized internal layout. This optimized design provides space for larger heatsinks and enhanced airflow, improving heat dissipation within the PSU.
Patented GPU-First Intelligent Voltage Stabilizer (IVS)
Activate the GPU-First voltage sensing by connecting the GPU-First IVS cable. This innovative feature enhances voltage stability by up to 45%, even during demanding gaming sessions and overclocking scenarios. With this advanced technology, you can experience smooth and consistent gameplay. If you prefer conventional CPU-focused voltage sensing, simply disconnect the purple connector.
ROG EQUALIZER
The ROG Equalizer is a soft embossed 12V-2x6 PCIe cable engineered to reduce heat stress and keep cable and connector temperatures well to protect the graphics card.
Reduced Cable Temperature
In demanding 600W scenarios, uneven current distribution can cause hot spots in conventional 12V-2x6 cables over long periods of use.
ROG Equalizer helps balance power delivery to reduce thermal stress and maintain stable temperatures. Even under extreme conditions, it keeps cable and connector temperatures within the 105°C material limit for safer, more reliable operation.
Enlarge Wire Load Capacity
Standard 12V-2x6 cables are rated for 9.2A per wire, while ROG Equalizer cables boost current capacity to 17A per wire. This is designed to improve the handling of short-term current peaks that may be produced by high-end graphics cards during extreme overclocking or when otherwise drawing a high amount of wattage from the power supply.
- Limits current to the safety level and manages electrical faults
- The compatible output voltage of 3.3 V DC ensures that the device is ready to use when needed
| Brand | |
|---|---|
| Brand | ASUS Computer International |
| Power & Battery | |
|---|---|
| Number of (6+2 pin) PCI Expre | 4 |
| Number of (4+4 pin) CPU Power | 2 |
| Number of SATA Power Connectors | 6 |
| Input Voltage Range | 100 V AC - 240 V AC |
| Input Voltage | 230 V AC |
| Output Voltage | 5 V SB |
| Output Current | 3 A |
| Output Voltage Detail | 12 V DC @ 100 A |
| Power Factor Correction (PFC) | Active |
| Number of +12V Rails | 1 |
| Size / Dimensions | |
|---|---|
| Form Factor | Internal |
| Appearance | |
|---|---|
| Color | Not Specified |
| General Features | |
|---|---|
| Protection Type | Over Temperature |
| Mean Time Between Failures (MTBF) | 120000 Hour |
| Manufacturer | ASUS Computer International |
| Fan Bearing Type | Dual Ball Fan Bearing |
| Number of Fans | 1 |
| Expansion Slots | |
|---|---|
| PCI Express Version | 5.1 |
| PCI Express Connector | Yes |
| Compliance & Certification | |
|---|---|
| Specification Compliance | ATX 3.1 |
| Brand | ASUS Computer International |
| UPC/GTIN | 199291451186 |
| MPN | ROG-STRIX-1200P-GAMING-E |
| Unit Count | 1 Units |
| Return Policy | This product is eligible for 30-day returns. See our return policy for details. |
