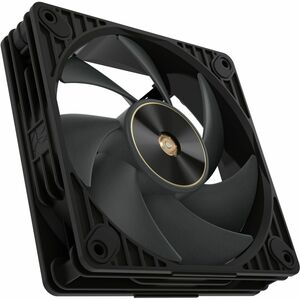

ProArt PF120 PWM Fan | The Art of Performance Cooling
The ProArt PF120 fan delivers superior cooling with premium quality and design for unmatched reliability . Boasting a 28mm frame, powerful 3-phase and 6-pole motor, CNC-milled brass bearing housing, reinforced Liquid Crystal Polymer (LCP) blades, and patented daisy-chain connectors to streamline installation and cable management, the ProArt PF120 is the ideal choice for users who demand peak performance and effortless integration.
28mm Frame Thickness
Enhances airflow with low noise
Smooth & Powerful 3-Phase and 6-Pole Fan Motor
Minimizes noise and vibration
CNC-Milled Brass Bearing Housing
Ensures reliability
- Reinforced Liquid Crystal Polymer(LCP) Blades
- Smaller 0.5mm Blade Gap for Reduced Turbulence
- Patented Daisy-Chain Connectors for Seamless Installation
Enhanced Airflow
ProArt PF120 fans provide strong airflow and static pressure to ensure a consistently perfect balance of cooling and acoustics performance.
3000rpm
Fan Speed
104.8cfm
Airflow
7.3 mmH2O
Static Pressure
Uncompromised Quality | Smooth & Powerful 3-Phase and 6-Pole Fan Motor
Powerful motor delivers smooth and robust performance by operating at a low frequency. This design minimizes noise and vibration, resulting in superior sound quality and enhanced operational efficiency.
CNC-Milled Brass Bearing Housing
The brass housing stabilizes the motor and bearings for long-term durability and reliability.
Smaller 0.5mm Blade Gap for Reduced Turbulence
A precise 0.5mm parallel gap between the fan blade and the frame enhances airflow efficiency while minimizing turbulence and noise.
Reinforced Liquid Crystal Polymer (LCP) Blades
The fan blades are made using a liquid-crystal polymer (LCP) composite that delivers exceptional strength, minimal thermal expansion, and natural vibration damping-helping to ensure high-speed operation with stable, precise performance.
PWM Fan Efficiency | PQ Curve
Under the same noise performance as competing models, ProArt PF120 fans deliver higher pressure-quantity optimization and better heat outtake efficiency.
PWM Curve
PWM support offers precise fan control via a wide speed adjustment range from 0 to 3000rpm. Users can select silent operation for lighter loads or maximum airflow for more demanding activities.
Patented Daisy-Chain Connectors
Easy fan installation and cable management are enabled via patented daisy-chain connectors, ensuring reliable, vibration-dampening connection between fans. The daisy-chain design lets users link multiple fans together using just one cable, saving time and effort while creating a cleaner, more efficient PC.
Three-Mode Fan Control
The ProArt PF120 triple pack comes with a handy fan speed controller with three speed settings that are accessible with a push of a button.
Perfectly Match Your Build
The ProArt PF120 comes in white or black, so its suitable for builders seeking to match a lighter aesthetic or a classic black look.
- The flawless rotation of up to 3000 rpm is just what you need for prolonged cooling
- Fluid Dynamic Bearing fan bearing type for maximum cooling/heating usability with added feasibility
- Helps the compatible PCs by maintaining a great balance of performance and efficiency
| Brand | |
|---|---|
| Brand | ASUS Computer International |
| Screen / Display | |
|---|---|
| Pulse-width Modulation (PWM) | Yes |
| Size / Dimensions | |
|---|---|
| Fan Depth | 1.10" |
| Fan Width | 4.72" |
| Fan Height | 4.72" |
| General Features | |
|---|---|
| Manufacturer | ASUS Computer International |
| Fan Bearing Type | Fluid Dynamic Bearing |
| Maximum Air Pressure | 7.3mmH2O |
| Fan Speed (Max) | 3000 rpm |
| Number of Fans | 3 |
| Maximum Airflow | 104.80 CFM |
| Compliance & Certification | |
|---|---|
| Noise Levels (A-Weighted) | 39 dB(A) |
