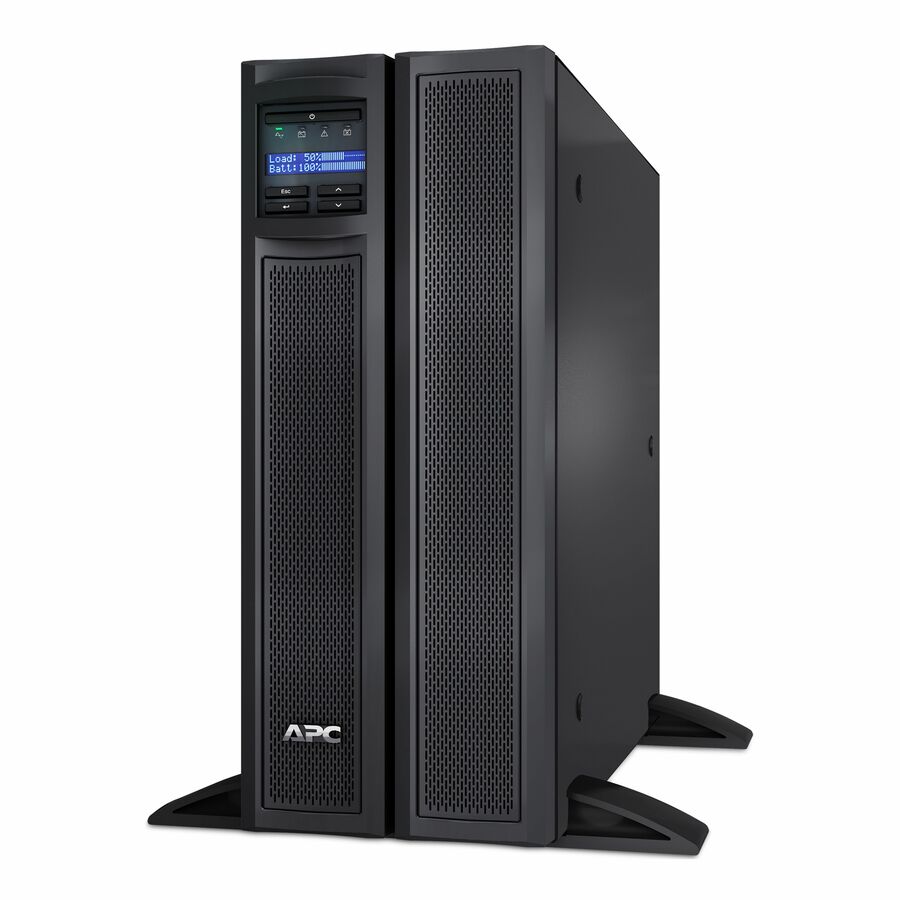

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2880VA line interactive 4U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA L5-30P input, 6x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-30R outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
- Intelligent battery management-Maximizes battery performance, life, and reliability through intelligent, precision charging.
- Temperature-compensated battery charging-Prolongs battery life by regulating the charge voltage according to battery temperature.
- SmartSlot-Customize UPS capabilities with management cards.
- Rack/Tower convertible-Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
- Cold-start capable-Provides temporary battery power when the utility power is out.
- Scalable runtime-Allows additional run time to be quickly added as needed.
- Sequenced network shutdown and reboot-Customize network shutdown and reboot sequence of connected servers and UPSs.
- Pure sine wave output on battery-Simulates utility power to provide the highest degree of compatibility for active PFC power factor corrected servers and sensitive electronics.
- Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critica
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Power & Battery | |
|---|---|
| Battery Characteristics | Maintenance-free , Spill-proof |
| Number of Battery & Surge Out | 10 |
| Emergency Power OFF | Yes |
| Receptacle Detail | 6 x NEMA 5-15R |
| Receptacle Type | NEMA L5-30P |
| Plug/Connector Type | NEMA L5-30P |
| Number of Battery & Surge Outlets | 10 |
| Battery Chemistry | Lead Acid |
| Number of Batteries | 1 |
| Typical Battery Recharge Time | 3 Hour |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Input Current | 15 A |
| Load Capacity (Watt) | 2700 W |
| Load Capacity (VA) | 2880 VA |
| Backup/Run Time (Full Load) | 6 Minute |
| Backup/Run Time (Half Load) | 18 Minute |
| Transfer Time | 4 ms |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 540 J |
| USB Ports | |
|---|---|
| USB | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Mounting Location | Front |
| Rack Height | 4U |
| Mounting Preference | Lower |
| Appearance | |
|---|---|
| Color | Black |
| General Features | |
|---|---|
| Hot Swappable | Yes |
| Manufacturer | Schneider Electric SA |
| For Country/Region | United States |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 1 |
| Cables | |
|---|---|
| Cord Length | 8 ft |
| Compliance & Certification | |
|---|---|
| California Proposition 65 War | which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov , WARNING: This product can expose you to chemicals including: Lead and lead compounds |
| Mercury Free | Yes |
| Product Take Back Program | Yes |
| Optimized Energy Efficiency | Yes |
| REACH free of SVHC | No |
| Reach Compliance Date | 12/10/2025 |
| Single-use Plastic (SUP) Free | No |
| Sustainable Packaging | No |
| Product Contributes Saved Avo | No |
| Minimum Percentage of Recycle | 0 |
| Packaging Contains Recycled C | Yes |
| Environmentally Friendly | Yes |
| Warranty & Support | |
|---|---|
| Directly Connected Equipment | $150000 Lifetime |
| Brand | Schneider Electric SA |
| UPC/GTIN | 731304292647 |
| MPN | SMX3000LV |
| Unit Count | 1 Units |
| Warranty |
3 Year
3 years repair or replace (excluding battery) and 2 years for battery, optional extended warranties available, optional on-site warranties available
|
| Return Policy | This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. |
| Customer Reviews | 4.0 (1) |
