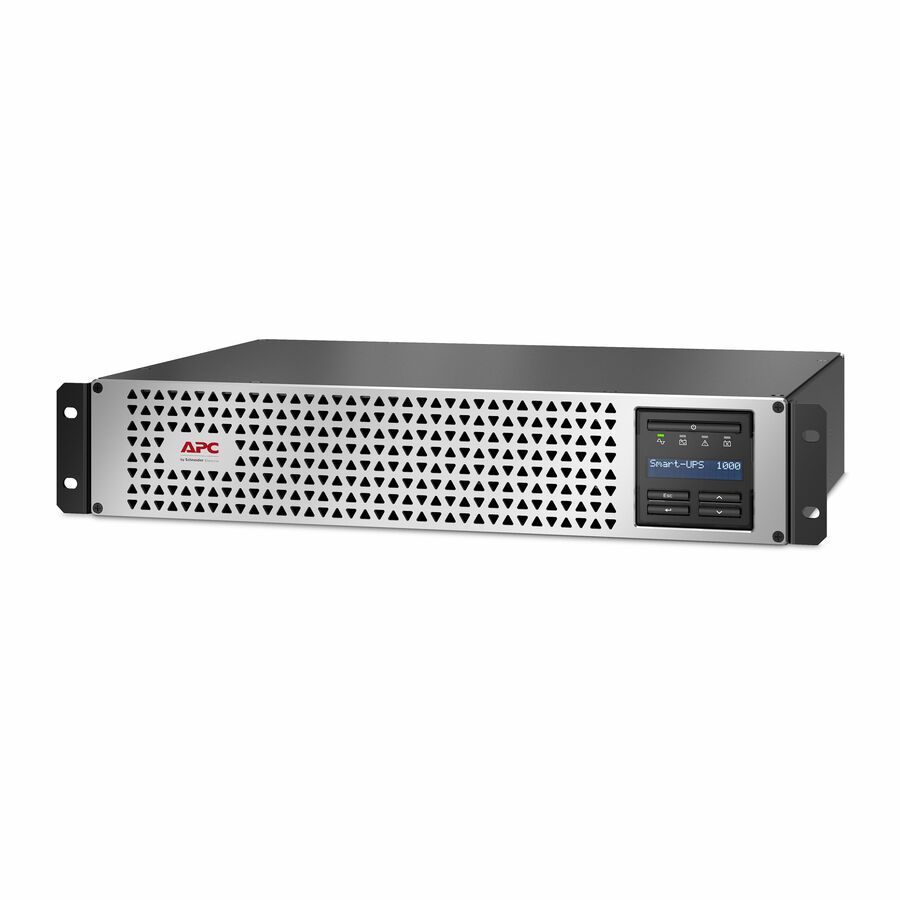

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1000VA line interactive 2U short depth rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6 NEMA 5-15R outlets. This rackmount UPS is tower convertible with the mounting stabilizing feet (SMTL2USF sold separately). It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery.
- Temperature-compensated battery charging-Prolongs battery life by regulating the charge voltage according to battery temperature.
- SmartSlot-Customize UPS capabilities with management cards.
- Cold-start capable-Provides temporary battery power when the utility power is out.
- Pure sine wave output on battery-Simulates utility power to provide the highest degree of compatibility for active PFC power factor corrected servers and sensitive electronics.
- Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- Intuitive LCD interface-Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Energy meter-Provides actual kilowatt hours of usage for energy conscious users.
- Reduces utility costs, generates less heat.
- Green m
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Power & Battery | |
|---|---|
| Phase | Single Phase |
| Input Frequency | 60 Hz |
| Receptacle Detail | 6 x NEMA 5-15R |
| Receptacle Type | NEMA 5-15P |
| Plug/Connector Type | NEMA 5-15P |
| Number of Battery & Surge Outlets | 6 |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Typical Battery Recharge Time | 3 Hour |
| Input Voltage Range | 82 V AC - 144 V AC |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Load Capacity (Watt) | 800 W |
| Load Capacity (VA) | 1000 VA |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 680 J |
| Networking & Connectivity | |
|---|---|
| Network Management | SmartConnect |
| USB Ports | |
|---|---|
| USB (HID Compliant) Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Rack Height | 2U |
| Keyboard/Keypad Weight (Approximate) | 36 lb |
| Mounting Preference | Lower |
| Maximum Height Adjustment (Above) | 3.39" |
| Appearance | |
|---|---|
| Color | Silver |
| General Features | |
|---|---|
| Alarm | Configurable Delay |
| Manufacturer | Schneider Electric SA |
| For Country/Region | United States |
| Thermal Dissipation | 20.51 W |
| Misc Ports | |
|---|---|
| Number of Serial Ports (External) | Yes |
| Cables | |
|---|---|
| Cord Length | 8 ft |
| Compliance & Certification | |
|---|---|
| Mercury Free | Yes |
| Product Take Back Program | Yes |
| Optimized Energy Efficiency | Yes |
| REACH free of SVHC | No |
| Reach Compliance Date | 12/10/2025 |
| Single-use Plastic (SUP) Free | No |
| Sustainable Packaging | No |
| SCIP Number | c151e0e4-d5aa-4595-a297-c593b8808426 |
| Packaging Contains Recycled C | Yes |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | -40°F (-40°C) - 95°F (35°C) |
| Minimum Operating Humidity (Non-condensing) | 0% - 95% |
| Storage Relative Humidity | 0% - 95% |
| Maximum Operating Elevation | 9842.52 ft |
| Maximum Storage Elevation | 24606.30 ft |
| Environmentally Friendly | Yes |
| Sound Emission | 41 dB |
| Warranty & Support | |
|---|---|
| Directly Connected Equipment | $150000 Lifetime |
| Brand | Schneider Electric SA |
| UPC/GTIN | 731304341987 |
| MPN | SMTL1000RM2UC |
| Unit Count | 1 Units |
| Warranty |
5 Year
5 year repair or replace
|
| Return Policy | This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. |
