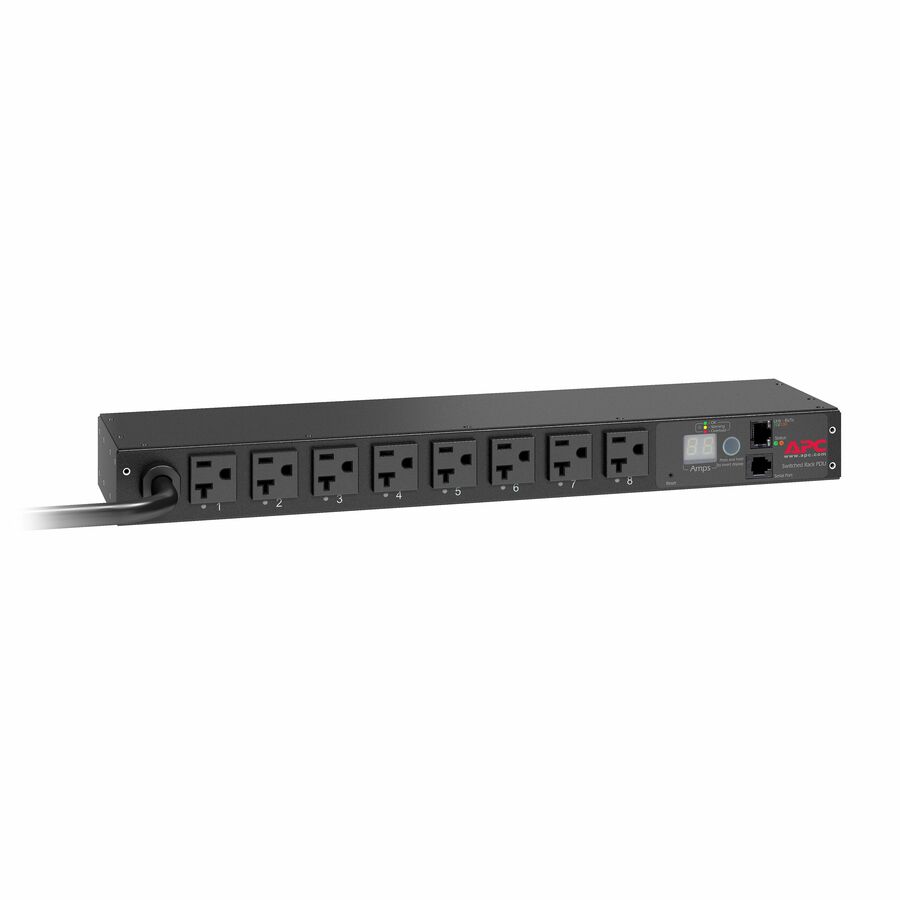

It is a switched rack PDU with a maximum current capacity of 20A and an input voltage of 120V. It features 8 NEMA 5-20R outlets and a NEMA L5-20P input connection. The PDU has a 1U form factor and a cord length of 12 feet. It supports remote monitoring and user-defined alarms, with outlet-level on/off switching capabilities. The unit is UL Listed and CSA certified, ensuring high safety and performance standards.
- Supports remote monitoring and control, enabling users to manage power distribution from a distance
- With a 1U form factor, it saves valuable rack space and allows for efficient cable management
- It features 8 NEMA 5-20R outlets, providing ample connectivity options for different devices
- It can handle a maximum current capacity of 20A, making it suitable for various applications
| Brand | |
|---|---|
| Brand | Schneider Electric SA |
| Power & Battery | |
|---|---|
| PDU Type | Switched |
| Receptacle Detail | 8 x NEMA 5-20R |
| Receptacle Type | NEMA 5-20R |
| Plug/Connector Detail | 1 x NEMA L5-20P |
| Plug/Connector Type | NEMA L5-20P |
| Input Voltage | 120 V |
| Output Voltage | 120 V AC |
| Input Current | 20 A |
| Power Rating (VA) | 2400 VA |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Mount Type | Rack-mountable |
| Mounting Orientation | Horizontal |
| Rack Height | 1U |
| Mounting Preference | No Preference |
| Appearance | |
|---|---|
| Placement | Rear |
| General Features | |
|---|---|
| Manufacturer | Schneider Electric SA |
| For Country/Region | United States |
| Cables | |
|---|---|
| Cord Length | 11.98 ft |
| Compliance & Certification | |
|---|---|
| Product Take Back Program | No |
| Environmentally Friendly | Yes |
