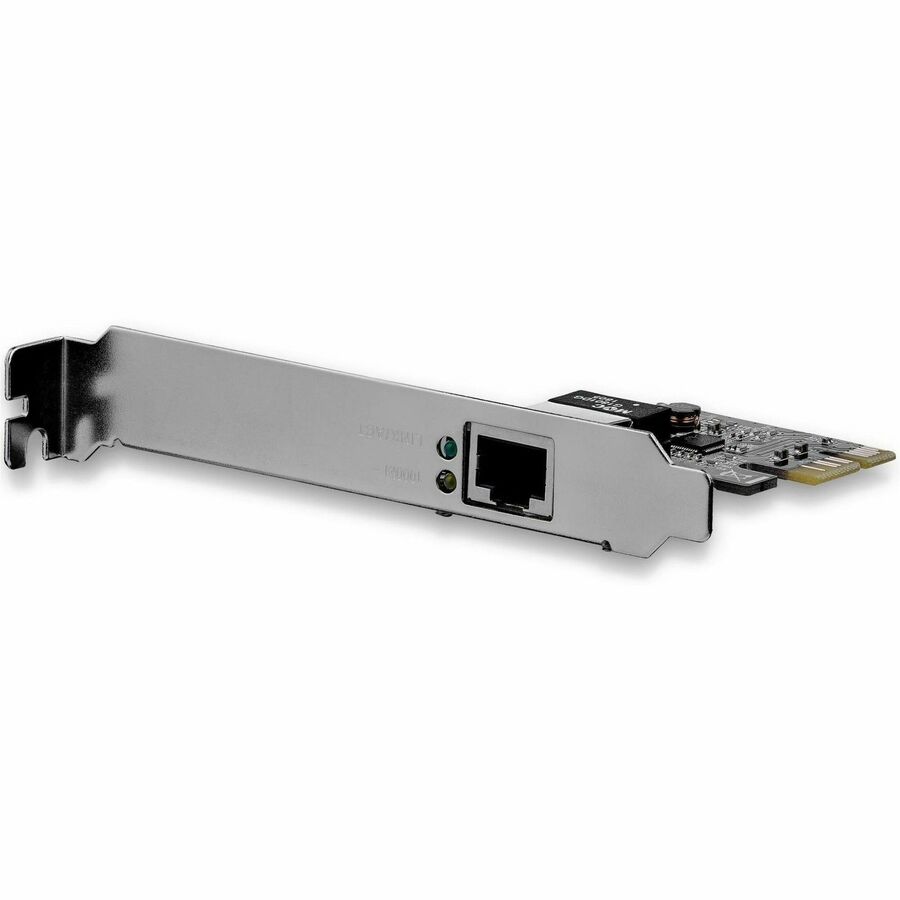

Add a 10/100/1000Mbps Ethernet port to any PC through a PCI Express slot. The ST1000SPEX2 PCIe Gigabit Ethernet Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.
Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter delivers rock-solid performance.
Plus, the card includes both full profile and low profile/half-height installation brackets for installation in a wide range of computer/server chassis, regardless of form factor.
The ST1000SPEX2 network card is backed by a 2-year StarTech.com warranty and free lifetime technical support.
More from the Manufacturer
- Crossover Detection & Auto-Correction (Auto MDI/MDI-X)
- Includes a low profile/half-height installation bracket
- Jumbo frame support
- Full and half duplex support
- Supports Wake-on-LAN function
- Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x and IEEE 802.3ab standards
- Supports IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding and IEEE 802.3x Full Duplex Flow Control
- Gigabit detection and Link/Activity LED indicators
- A single 10/100/1000Mbps compatible RJ45 Ethernet port
| Brand | |
|---|---|
| Brand | StarTech.com |
| Networking & Connectivity | |
|---|---|
| XJACK | No |
| InfiniBand | No |
| Network Technology | 10/100/1000Base-T |
| USB Ports | |
|---|---|
| USB | No |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Ethernet AUI | No |
| Network (RJ-45) | Yes |
| PoE (RJ-45) Port | No |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| Card Height | Low-profile |
| General Features | |
|---|---|
| Chipset Manufacturer | Realtek |
| Chipset Model | RTL8111 |
| Maximum Data Transfer Rate | 1 Gbit/s |
| Manufacturer | StarTech.com |
| Misc Ports | |
|---|---|
| Total Number of Ports | 1 |
| Host Interface | PCI Express x1 |
| Serial Port | No |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Compliance & Certification | |
|---|---|
| REACH free of SVHC | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
