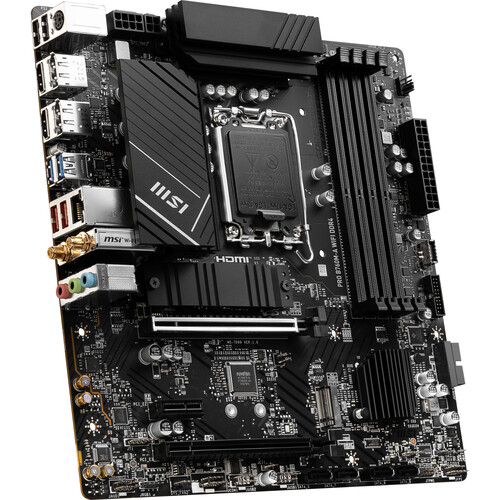

MSI PRO B760M-A Intel B760 LGA 1700 micro ATX

• Component for
  • PC
• DisplayPort version
  • 1.4
• Motherboard chipset
  • Intel B760
• Audio chip
  • Realtek ALC897
• Motherboard form factor
  • micro ATX
• Motherboard chipset family
  • Intel
• Power source type
  • ATX
• Audio output channels
  • 7.1 channels
• Processor manufacturer
  • Intel
• Processor socket
  • LGA 1700
• Compatible processor series
  • Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i7 Extreme Edition, Intel® Core™ i9, Intel Core i9 Extreme Edition, Intel® Pentium® D, Intel® Pentium® Dual-Core, Intel® Pentium® Extreme Edition, Intel Pentium G, Intel® Pentium® Gold, Intel® Pentium® III, Intel® Pentium® M
• Maximum number of SMP processors
  • 1
• Supported processor sockets
  • LGA 1700
• Width
  • 243.8 mm
• Depth
  • 243.8 mm
• Cables included
  • SATA
• Supported memory types
  • DDR4-SDRAM
• Number of memory slots
  • 4
• Memory channels
  • Dual-channel
• ECC сompatibility
  • Non-ECC
• Maximum internal memory
  • 128 GB
• Supported storage drive interfaces
  • M.2, PCI Express, SATA
• Supported storage drive types
  • HDD & SSD
• RAID support
  • Yes
• RAID levels
  • 0, 1, 5, 10
• USB connector type
  • USB Type-A
• DisplayPorts quantity
  • 2
• USB 2.0 connectors
  • 6
• USB 3.2 Gen 1 (3.1 Gen 1) connectors
  • 7
• ATX Power connector (24-pin)
  • Yes
• CPU fan connector
  • Yes
• Number of chassis fan connectors
  • 1
• Chassis intrusion connector
  • Yes
• TPM connector
  • Yes
• RGB LED pin header
  • Yes
• USB 3.2 Gen 2 (3.1 Gen 2) connectors
  • 2
• Number of SATA connectors
  • 4
• Audio connector
  • Yes
• Front panel audio connector
  • Yes
• EPS power connector (8-pin)
  • Yes
• Ethernet interface type
  • 2.5 Gigabit Ethernet
• Ethernet LAN
  • Yes
• LAN controller
  • Realtek RTL8125-BG
• Wi-Fi
  • Yes
• Top Wi-Fi standard
  • Wi-Fi 6E (802.11ax)
• Bluetooth
  • Yes
• Bluetooth version
  • 5.3
• USB 2.0 ports quantity
  • 6
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  • 6
• Ethernet LAN (RJ-45) ports
  • 1
• HDMI ports quantity
  • 2
• HDMI version
  • 2.1
• Headphone outputs
  • 1
• Line-in
  • Yes
• Microphone in
  • Yes
• USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
  • 1
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
  • 2
• S/PDIF out port
  • Yes
• PCI Express x16 (Gen 4.x) slots
  • 1
• Number of M.2 (M) slots
  • 2
• PCI Express x4 (Gen 4.x) slots
  • 1
• PCI Express x16 (Gen 3.x) slots
  • 1
• Brand
  • MSI
