Add two 10Gbps USB Type-C ports to your computer, through a PCI Express slot

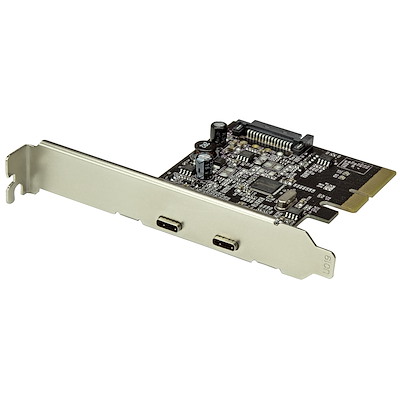

This USB 3.1 card lets you add two USB-C ports to your computer, through a PCI Express slot. It enables you to upgrade your current system by adding two USB 3.1 Gen 2 ports to your computer and giving you access to data transfer speeds up to 10Gbps.

With the addition of two USB Type-C ports, you can rest assured your computer is compatible with the growing popularity of USB-C peripherals.

Faster USB performance

By adding 10Gbps USB ports to your computer, you can harness the speed of USB 3.1 Gen 2 and rest assured you’re ready for both current and future high-bandwidth USB-C devices.

With higher data throughput support, this USB 3.1 PCIe card is a necessity for external drives, drive enclosures, and many other USB 3.1 peripherals. Plus, the USB card includes an optional SATA power connector to connect to your system power supply and deliver up to 900mA of power per port to USB 3.1 bus-powered devices (500mA for USB 2.0). The card is ideal for use with large external storage solutions.

Compatible with older USB devices

The card is backward compatible with USB 3.0 (5Gbps) and USB 2.0 (480mbps) devices. You can add the card now for use with newer USB-C devices, while still connecting your existing USB peripherals using a variety of USB-C cables and adapters.

Easy installation

The USB 3.1 card is compatible with a broad range of Windows and Linux operating systems. Plus, the high-quality card includes both standard-profile and low-profile brackets, making it easy to install in full or small form-factor PCs and servers.

The is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Transfer files and access USB 3.1 devices faster, with up to 10Gbps throughput
- Get set for the future of universal connectivity, by adding two USB-C ports to your computer
- Optional SATA power connector provides up to 900mA per USB port

Features
Chipset	ASMedia - ASM2142
UASP support	Yes
Bandwidth	10 Gbit/s

Weight & dimensions
Width	90 mm
Depth	122 mm
Height	21 mm
Weight	46 g

System requirements
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019

Packaging data
Package width	142 mm
Package depth	170 mm
Package height	30 mm
Package weight	120 g
Mounting brackets included	Yes
Quick installation guide	Yes

Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Host interface	PCIe
Output interface	USB 3.2 Gen 1 (3.1 Gen 1)
Expansion card form factor	Full-height / Low-profile
Expansion card standard	PCIe 3.0

StarTech.com Discontinued and replaced by PEXUSB312C3 - Dual Port USB-C Card - 2x USB-C - USB 3.1 PCI-e Card with SATA - USB 3.1 Expansion Card - PCI Express USB C Card

$ 39.99 39.99 USD $ 39.99

$ 39.99

Not Available For Sale
