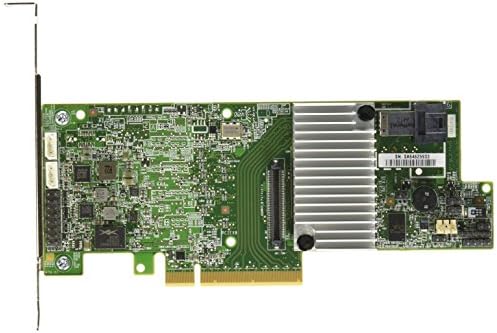

Intel RAID controller PCI Express x8 3.0 12 Gbit/s
12Gb/s SAS, 6Gb/s SATA, LSI3108 ROC Mainstream Intelligent RAID 0,1,5,10,50,60 add-in card with x8 PCIe 3.0, 4 internal ports, MD2 Low Profile form factor.
Specifications
| General Information | |
|---|---|
| Brand | Intel |
| Others | |
|---|---|
| PCI Express slots version | 3.0 |
| Host interface | PCI Express x8 |
| Data transfer rate | 12 Gbit/s |
| Internal SAS ports | 4 |
| Connector orientation | Side |
| Supported storage drive interfaces | SAS, Serial ATA |
| Internal memory | 1024 MB |
| RAID levels | 0, 1, 10, 5, 50, 6, 60 |
| Form factor | Low Profile MD2 Card |
