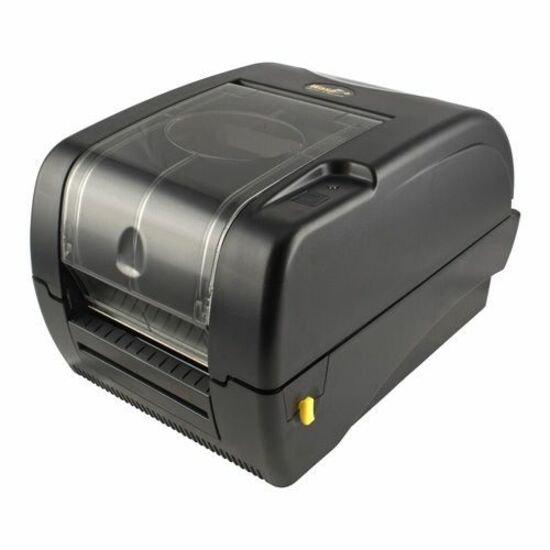

WPL305 Desktop Barcode Printer The Wasp WPL305 is a compact, powerful desktop barcode printer designed to meet your light- to medium-duty barcode printing requirements. Its durable construction, speed, and dual printing technologies make the WPL305 a leader in its class and one of the most popular printers in the Wasp line. Perfect for printing 4x6 shipping labels . The WPL305 offers both direct thermal and thermal transfer printing in one printer, reducing the need for additional printers for different printing processes. With print speeds up to 5" inches per second at 203 dpi resolution, the WPL305 is a cost effective way to print barcode labels of all types, including shipping labels, stock labels, asset tags, medical labels, and location labels. Print speed is supported by 8 MB of SDRAM, 4 MB of FLASH memory and multiple connectivity options including parallel, USB, and RS232. ZPL, EPL, and WPL emulation are also included to ensure application compatibility. The WPL305 includes a 2-year manufacturer's warranty covering material defects. If you would like to upgrade this coverage, WaspProtect extended service plans cover accidental breakage and can provide coverage beyond the original warranty. Part Numbers: 633808402006, 633808402020, 633808402013
- USB, serial (RS232), and parallel connectivity standard
- Compact, clamshell design
- See through media viewing window
- Accepts label rolls with 5" max. outer diameter
- 8 MB SDRAM, 4 MB Flash memory with SD expansion slot
- WPL, ZPL, EPL emulation
- 203 dpi print resolution
- 5" inch per second print speed
- 4.25" inch max. print width
- Thermal transfer and direct thermal printing
| Brand | |
|---|---|
| Brand | Wasp Barcode Technologies |
| Memory / RAM | |
|---|---|
| Standard Memory | 8 MB |
| Memory Technology | SDRAM |
| Storage | |
|---|---|
| Flash Memory | 4 MB |
| Power & Battery | |
|---|---|
| Input Voltage | 220 V AC |
| Power Source | AC Supply |
| USB Ports | |
|---|---|
| USB | Yes |
| Size / Dimensions | |
|---|---|
| Label Core Size | 3" |
| Ribbon Core Size | 1" |
| Appearance | |
|---|---|
| Color | Not Specified |
| General Features | |
|---|---|
| Manufacturer | Wasp Barcode Technologies |
| Recommended Use | Label Print |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Parallel Port | Yes |
| Printer/Scanner/Fax Specs | |
|---|---|
| Print Technology | Direct Thermal /Thermal Transfer |
| Maximum Mono Print Speed | 5 in/s |
| Print Color Capability | Monochrome |
| Barcode Symbology Supported | Micro PDF-417 |
| Media Sensor | Reflective Media Sensor |
| Language Emulation | ZPL |
| Media Type | Label |
| Media Size | Custom Size - 4.40" |
| Maximum Roll Diameter | 5" |
| Maximum Print Resolution (dpi) | 203 |
| Maximum Print Width | 4.25" |
| Maximum Label Width | 4.40" |
| Maximum Label Length | 39" |
| Brand | Wasp Barcode Technologies |
| UPC/GTIN | 633808402006 |
| MPN | 633808402006 |
| Unit Count | 1 Units |
| Warranty | 1 Year |
