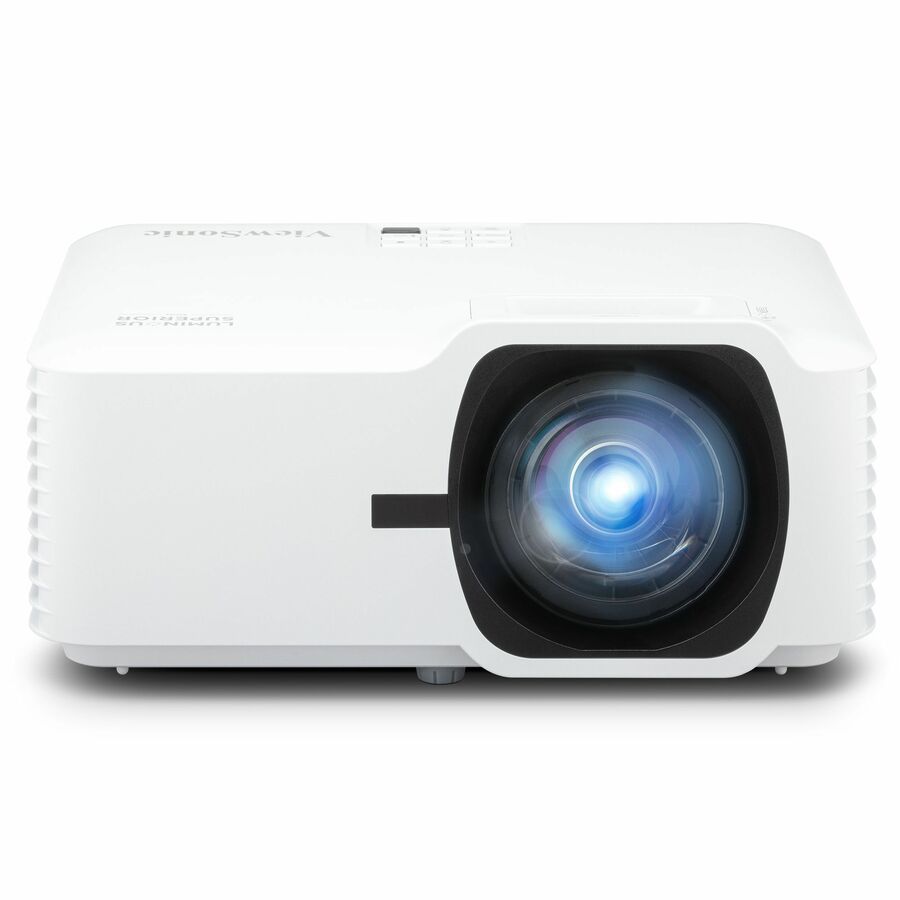

The ViewSonic® LSD400HD-ST is a high-brightness, lamp-free 1080p projector designed for modern professional and educational environments. Utilizing advanced 3rd generation laser phosphor technology, it delivers 4,000 ANSI Lumens of brightness for up to 30,000 hours, eliminating the need for frequent bulb changes and the maintenance downtime associated with traditional lamp projectors. This sustainable "fit and forget" solution is significantly more energy-efficient, reducing power usage by up to 49%. With its 0.5 short throw lens, the LSD400HD-ST projects massive, shadow-free images in tight spaces, while the IP6X sealed optical engine and high-contrast 0.65" DMD chip ensure durable, professional-grade performance. Featuring 360° projection, portrait mode, and centralized LAN control, it offers the installation flexibility required for everything from corporate boardrooms to creative digital signage.
- DLP offers a brilliant, colorful and clear visual with deep blacks
- Delivers powerful 4000 lm brightness for clear visuals
- It projects full HD images clear and crisp with brightest of whites and deepest of blacks, every color and pixel preserved
- Up to 3,000,000:1 contrast ratio
- HDMI interface for top notch video and audio
- Project image instantly from a PC or MacBook with the USB port
| Brand | |
|---|---|
| Brand | ViewSonic Corporation |
| GPU / Graphics | |
|---|---|
| Graphic Mode | Full HD |
| Screen / Display | |
|---|---|
| Contrast Ratio | 000:1 , 000 , 3 |
| Minimum Diagonal Image Size | 40" |
| Maximum Diagonal Image Size | 25 ft |
| Projection Method | Ceiling |
| Maximum Projection Distance | 10.79 ft |
| Minimum Projection Distance | 17.32" |
| Number of Lamps | 1 |
| Lamp Type | Laser |
| Normal Mode Lamp Life | 20000 Hour |
| Standard Mode Brightness | 4000 lm |
| Color Supported | 1.07 Billion Colors |
| Throw Ratio | 0.5 |
| Throw Type | Short Throw |
| Native Resolution | 1920 x 1080 |
| Economy Mode Lamp Life | 30000 Hour |
| Power & Battery | |
|---|---|
| Operating Power Consumption | 143 W |
| USB Ports | |
|---|---|
| USB | Yes |
| USB Connector Type | Type-A |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Number of HDMI Ports | 2 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Audio Ports | |
|---|---|
| Audio Line Out | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Focal Length | 7.51 mm |
| Audio | |
|---|---|
| Speaker Included | Yes |
| Speaker Output Power | 15 W |
| Size / Dimensions | |
|---|---|
| Form Factor | Ceiling Mountable |
| Appearance | |
|---|---|
| Color | Not Specified |
| General Features | |
|---|---|
| Video Signal Standard | HDTV |
| Manufacturer | ViewSonic Corporation |
| Printer/Scanner/Fax Specs | |
|---|---|
| Output Scan Format | 2160p |
| Compliance & Certification | |
|---|---|
| Energy Star | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool (EPEAT) |
| Warranty & Support | |
|---|---|
| Parts Warranty/Labor | 3 Year |
| Brand | ViewSonic Corporation |
| UPC/GTIN | 766907034301 |
| MPN | LSD400HD-ST |
| Unit Count | 1 Units |
| Warranty | 3 Year |
