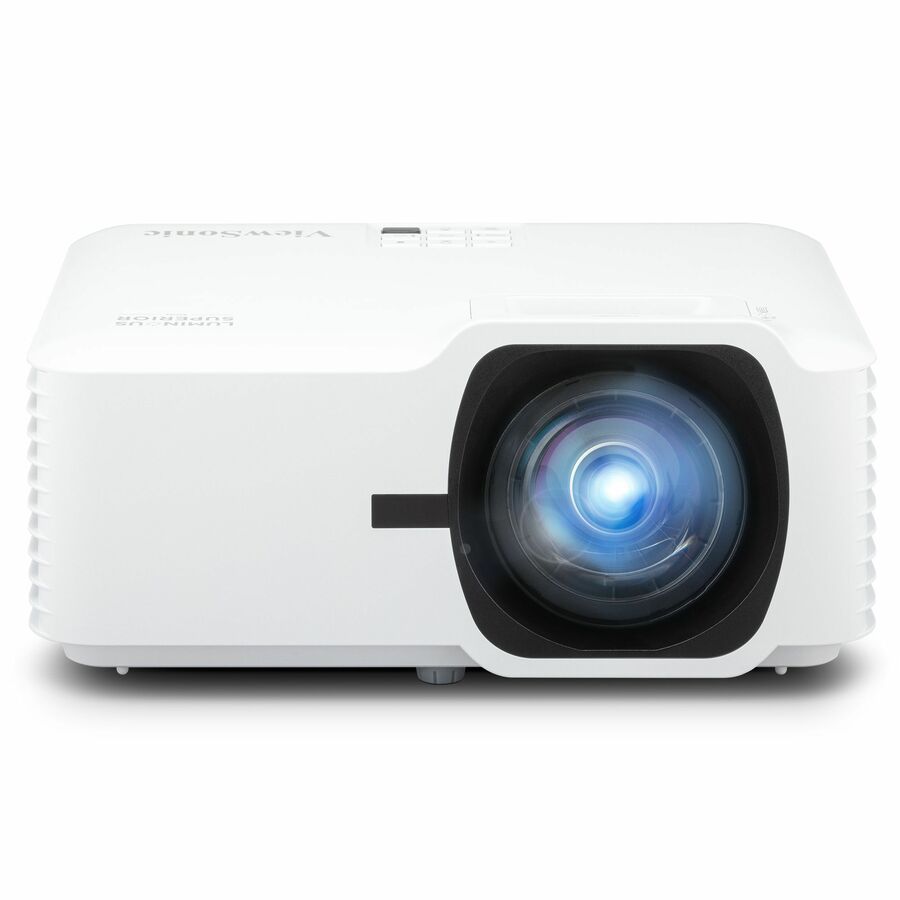

The ViewSonic® LSD400HD-ST is a high-brightness, lamp-free 1080p projector designed for modern professional and educational environments. Utilizing advanced 3rd generation laser phosphor technology, it delivers 4,000 ANSI Lumens of brightness for up to 30,000 hours, eliminating the need for frequent bulb changes and the maintenance downtime associated with traditional lamp projectors. This sustainable "fit and forget" solution is significantly more energy-efficient, reducing power usage by up to 49%. With its 0.5 short throw lens, the LSD400HD-ST projects massive, shadow-free images in tight spaces, while the IP6X sealed optical engine and high-contrast 0.65" DMD chip ensure durable, professional-grade performance. Featuring 360° projection, portrait mode, and centralized LAN control, it offers the installation flexibility required for everything from corporate boardrooms to creative digital signage.
- Big Images in Small Spaces: Projects an immersive 100-inch Full HD (1920x1080p) image from just 1.1 meters away; perfect for tight golf simulators and training rooms where space is at a premium
- Vibrant 1080p Laser Visuals: Experience sharp text and deeper contrast with a 3,000,000:1 dynamic contrast ratio and 4,000 ANSI lumens; ensuring your content stays visible in rooms with ambient light
- Dedicated Golf Simulation Mode: Fine-tune your experience with a specialized Golf Mode that boosts greens and blues; rendering fairways and course details with lifelike accuracy for training and entertainment
- Professional AV Integration: Certified for Crestron and Q-SYS, and compatible with AMX, Extron, and PJ Link; allowing IT managers to monitor and manage units remotely over the network
- Built for Reliable 24/7 Operation: Featuring an IP6X-rated sealed optical engine and advanced cooling; this lamp-free projector is designed for continuous use in demanding commercial and simulation environments
| Brand | |
|---|---|
| Brand | ViewSonic Corporation |
| GPU / Graphics | |
|---|---|
| Graphic Mode | Full HD |
| Screen / Display | |
|---|---|
| Contrast Ratio | 000:1 , 000 , 3 |
| Minimum Diagonal Image Size | 40" |
| Maximum Diagonal Image Size | 25 ft |
| Projection Method | Ceiling |
| Maximum Projection Distance | 10.79 ft |
| Minimum Projection Distance | 17.32" |
| Number of Lamps | 1 |
| Lamp Type | Laser |
| Normal Mode Lamp Life | 20000 Hour |
| Standard Mode Brightness | 4000 lm |
| Color Supported | 1.07 Billion Colors |
| Throw Ratio | 0.5 |
| Throw Type | Short Throw |
| Native Resolution | 1920 x 1080 |
| Economy Mode Lamp Life | 30000 Hour |
| Power & Battery | |
|---|---|
| Operating Power Consumption | 143 W |
| USB Ports | |
|---|---|
| USB | Yes |
| USB Connector Type | Type-A |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Number of HDMI Ports | 2 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Audio Ports | |
|---|---|
| Audio Line Out | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Focal Length | 7.51 mm |
| Audio | |
|---|---|
| Speaker Included | Yes |
| Speaker Output Power | 15 W |
| Size / Dimensions | |
|---|---|
| Form Factor | Ceiling Mountable |
| Maximum Height Adjustment (Above) | 5.1" |
| Appearance | |
|---|---|
| Color | White |
| General Features | |
|---|---|
| Video Signal Standard | HDTV |
| Manufacturer | ViewSonic Corporation |
| Printer/Scanner/Fax Specs | |
|---|---|
| Output Scan Format | 2160p |
| Compliance & Certification | |
|---|---|
| Energy Star | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool (EPEAT) |
| Warranty & Support | |
|---|---|
| Parts Warranty/Labor | 3 Year |
| Brand | ViewSonic Corporation |
| UPC/GTIN | 766907034301 |
| MPN | LSD400HD-ST |
| Unit Count | 1 Units |
| Warranty | 3 Year |
| Return Policy | This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. |
