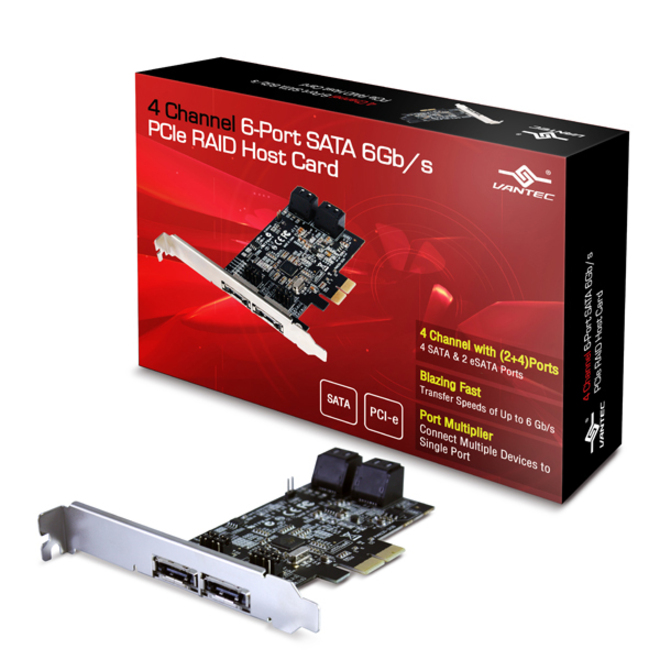

The UGT-ST644R design encompasses great design and server technology into simple RAID Host controller. It uses the latest storage technology to bring SSD caching storage to the HDD drive to gain unparalleled access speed. This RAID Host controller enables the use of the industry's newest and fastest hard drives at 6Gb/s while providing backward compatibility to legacy SATA 3Gb/s or 1.5Gb/s drives. It uses the same cable and connectors as previous SATA generations to ease integration. Come standard for PCI Express 2.0 to double the bandwidth of the existing PCI Express bus for faster data throughput thus enhancing system performance for every type of computer user. Each PCI-Express 2.0 lane provides up to 500MB/s of throughput. It is also backward compatible with previous generation of PCI Express 1.0 technology. Using the onboard RAID firmware, the 4 SATA drives attached to this controller can be easily configured as 4 individual ports with no RAID or with RAID 0, RAID 1, RAID 10, and HyperDuo capabilities.
- SATA Controller is the single answer to all your desired storage needs
- Serial ATA/600 controller type for faster, efficient data transfer rates with maximum dependability
- 0 RAID level for easy, convenient configuration and better fault tolerance and redundancy
- The PCI Express x4 interface provides smooth data transfer and outstanding performance
- Plug-in Card form factor allows hassle-free and easy usage with increased efficiency
- SATA Controller provides an affordable storage expansion solution for your PC
| Brand | |
|---|---|
| Brand | Vantec Thermal Technologies |
| Storage | |
|---|---|
| Number of SATA Ports (Interna | 4 |
| RAID Supported | Yes |
| RAID Levels | 10 |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| Thickness | 0.7" |
| Appearance | |
|---|---|
| Color | Not Specified |
| General Features | |
|---|---|
| Controller Type | Serial ATA/600 |
| Manufacturer | Vantec Thermal Technologies |
| Misc Ports | |
|---|---|
| Number of SATA Ports (Externa | 2 |
| Total Number of SATA Ports | 6 |
| Host Interface | PCI Express x4 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Brand | Vantec Thermal Technologies |
| UPC/GTIN | 844767020471 |
| MPN | UGT-ST644R |
| Unit Count | 1 Units |
