Key Features

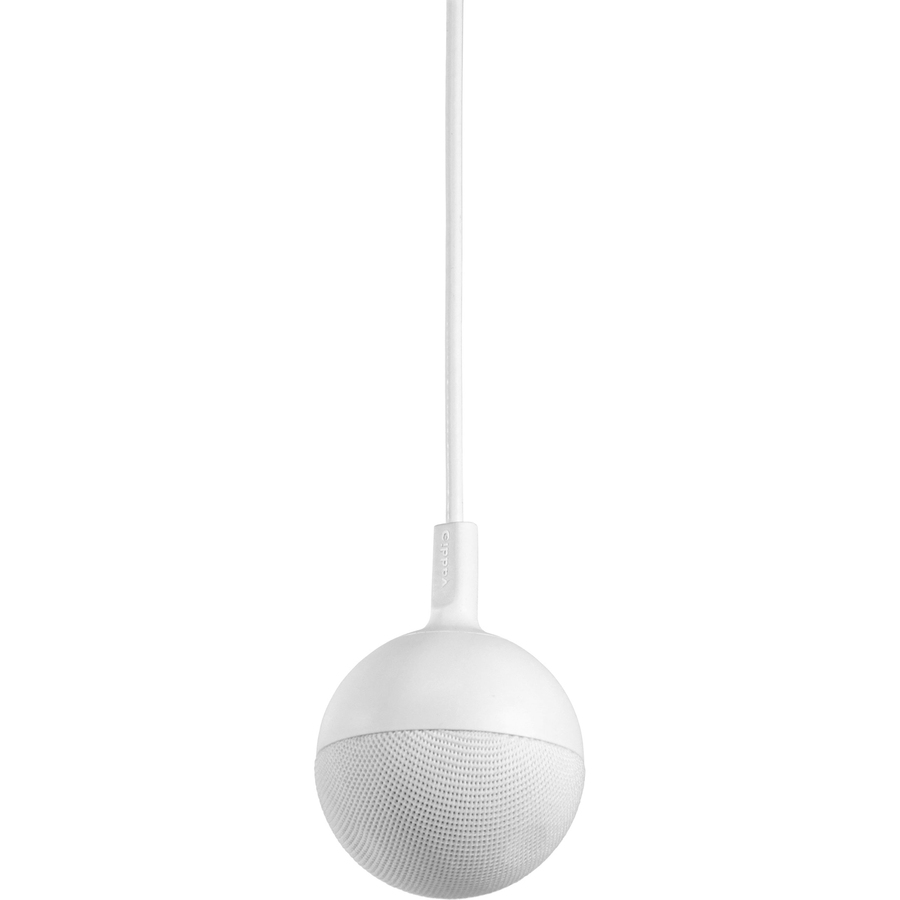

EasyIP CeilingMIC D complements most interiors with its sleek design featuring smooth lines and quality acoustical fabric wrap. These overhead microphones are a great alternative to a custom installation or table microphones. Ceiling-mounted microphones create a clean look in your conference room or meeting space and eliminate table clutter. Vaddio's EasyIP CeilingMIC D is ideal for drop tile ceilings and open-ceiling environments as well.
With full 360-degree pickup coverage, one EasyIP CeilingMIC D provides excellent coverage for an average size meeting room table. Ensure clear coverage of all meeting participants in larger spaces with multiple ceiling microphones - the number of microphones is only limited by the availability of network switch ports. Centrally manage microphone routing and system configuration with free Dante Controller software.
Each EasyIP CeilingMIC D unit delivers the performance of three microphone elements built into a single pendant hanging enclosure. Each unidirectional cardioid microphone element is equipped with integrated echo cancellation and Digital Signal Processing (DSP), including equalization, filtering and automatic gain control (AGC). The DSP in the interface box receives its AEC reference from the far end and applies it to individual mic elements, so conference calls are crystal-clear on both ends of the conversation. Configure and fine-tune the DSP easily with Vaddio's desktop configuration tool.
With its plug-and-play design, installation is as simple as connecting a Cat-5e cable between the network switch PoE port and the EasyIP CeilingMIC D microphone receiver. Power, control and audio are all incorporated into the single cable.
The CeilingMIC pendant includes a 3 ft. (0.9 meters) adjustable drop cable and with a standard RJ45 jack connection, the pendant can be extended to a total length of 15 ft. (4.6 meters) from the interface box.
- Built-in digital signal processor (DSP)
- Three-element array head with LED mute status indicator
- Design allows for custom ceiling drop cable length and easy installation
- Dante networked audio signal for easy system routing
| Brand | |
|---|---|
| Brand | Legrand Group |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| Audio | |
|---|---|
| Microphone Type | Ceiling Mount |
| Maximum Frequency Response | 16 kHz |
| Minimum Frequency Response | 100 Hz |
| Polar Pattern | Uni-directional |
| General Features | |
|---|---|
| Manufacturer | Legrand Group |
| Misc Ports | |
|---|---|
| Host Interface | RJ-45 |
| Cables | |
|---|---|
| Cable Length | 3 ft |
