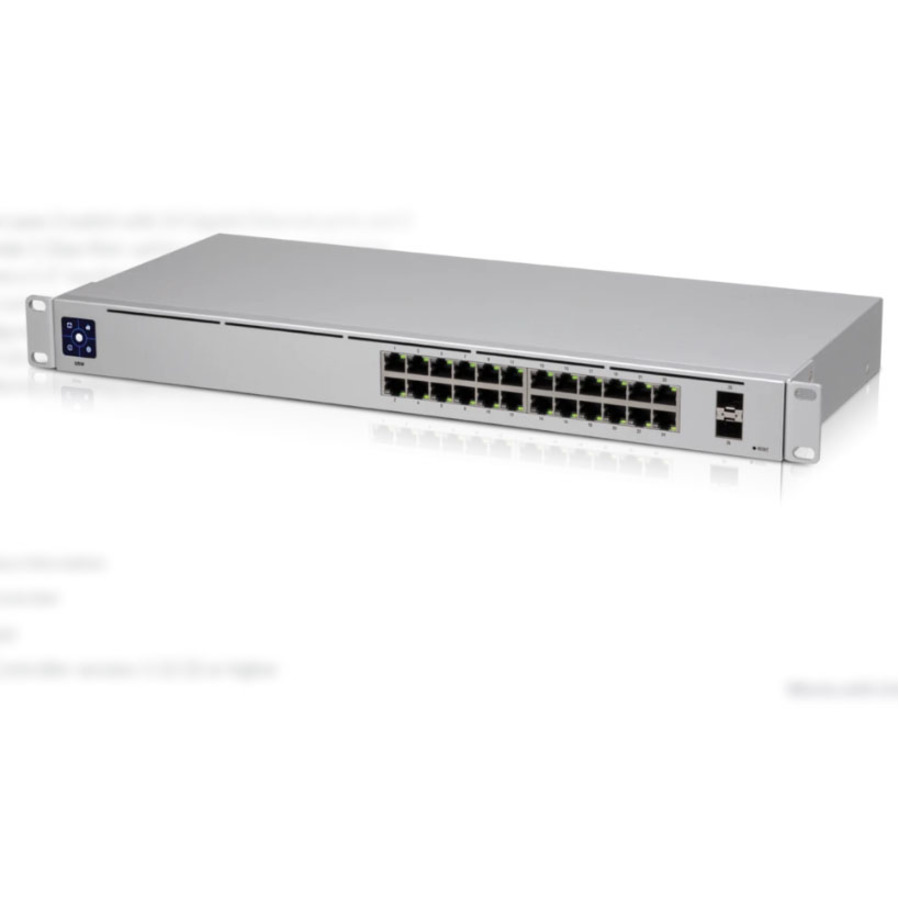

The USW-24 is a configurable Layer 2 switch with 24 Gigabit Ethernet ports and 2 SFP ports. The SFP ports provide 1 Gbps fiber uplink options to your enterprise network. The USW-24 features a 1.3" touchscreen, compact size, and fanless design. The touchscreen displays the current switch state and information for quick diagnosis. Managed and configured by the UniFi Network Application with UniFi Network mobile app support, the USW-24 switch offers an extensive suite of advanced Layer 2 switching protocols and features, including operating mode (switching, mirroring, or aggregate) per port.
Features:
- (24) Gigabit Ethernet Ports
- (2) Gigabit SFP Ports
- 1.3" color touchscreen for status information
- Managed by UniFi Network Application
- 1U rackmountable (kit included)
Managed by UniFi Network Application version: 5.12.32 or higher
- Ethernet Switch supports increased network bandwidth availability through data switching
- Features 24 networking ports to support deployment of larger wired network configurations across connected devices
- Gigabit Ethernet ports support higher network data rates than standard Ethernet connections
- Layer 2 support enables structured switching operation while maintaining convenience across business network environments
- Rack?mountable design supports installation within standard equipment racks to accommodate organized hardware placement
- Managed capability enables configuration and monitoring functions that support structured network operation
- Twisted pair cable support enables cost?efficient network connections for data transmission across distances
- Built?in power supply supports internal components by providing required operating voltage
- Cascade connections to other network devices through the uplink port to extend a local area network topology
| Brand | |
|---|---|
| Brand | Ubiquiti Inc. |
| Power & Battery | |
|---|---|
| Maximum Operating Power Consumption | 25 W |
| Power Source | Power Supply |
| Networking & Connectivity | |
|---|---|
| Network Technology | 1000Base-X |
| Layer Supported | 2 |
| Ethernet Port | |
|---|---|
| Total Number of Network Ports | 24 |
| Uplink Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Compatible Rack Unit | 1U |
| Maximum Height Adjustment (Above) | 1.7" |
| Appearance | |
|---|---|
| Color | Not Specified |
| Modular | Yes |
| General Features | |
|---|---|
| Manageable | Yes |
| Manufacturer | Ubiquiti Inc. |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 2.0 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 2 |
| Shared SFP Slot | No |
| Misc Ports | |
|---|---|
| Port/Expansion Slot Details | 2 x Gigabit Ethernet Expansion Slot |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Optical Fiber |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Brand | Ubiquiti Inc. |
| UPC/GTIN | 810010071378 |
| MPN | USW-24 |
| Unit Count | 1 Units |
| Warranty | 1 Year |
| Return Policy | This product is eligible for 30-day returns. See our return policy for details. |
