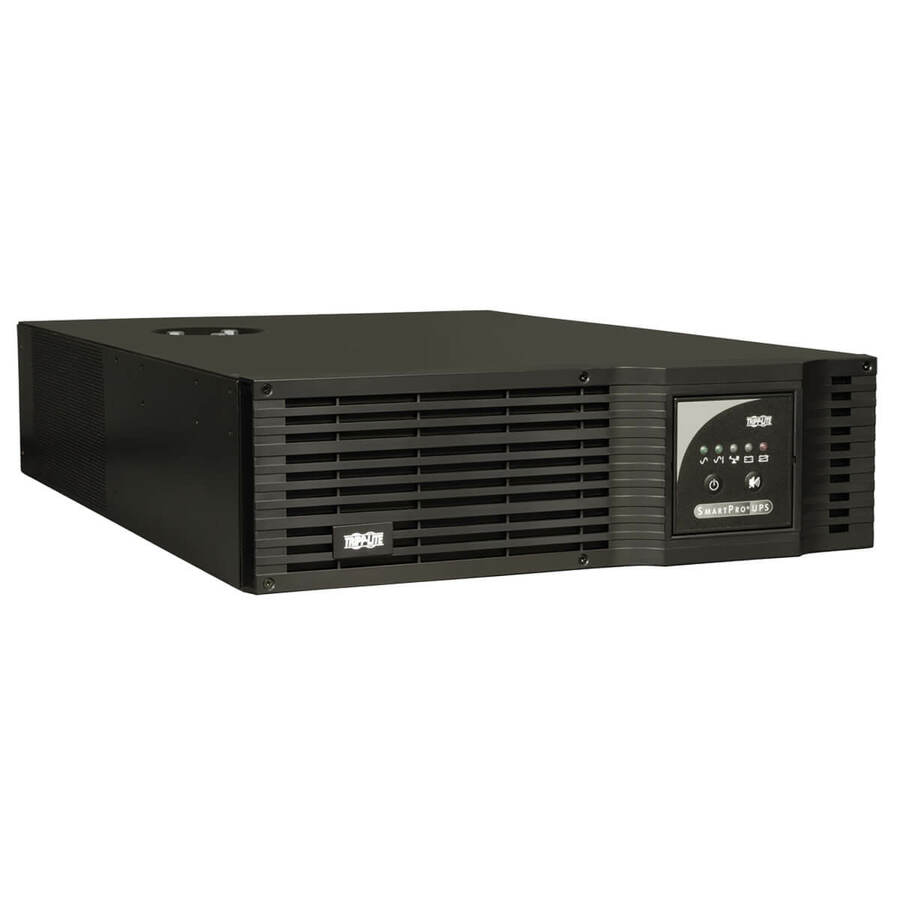

Tripp Lite 5kVA Smart RM UPS. 5000VA line-interactive UPS for server, network and telecommunications equipment. UPS with internal batteries requires 3 rack spaces installed. Accepts 208V nominal input voltage. Simultaneous 208 & 120V output. Corrects brownouts and overvoltages from 167V to 260V. Sine wave output. Maintains battery-derived AC output during blackouts and severe voltage fluctuations. Expandable runtime with optional external battery packs. 11 output receptacles. NEMA L6-30P input connection with support for user-supplied 50A or hardwire input. Network-grade AC surge and noise suppression. Network management interfaces include USB, DB9 serial and SNMPWEBCARD slot. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all network interfaces simultaneously. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. Integrated 8-bank switched PDU. 3-stage metered current monitoring and battery charge LEDs. Utility power and voltage regulation LEDs. Audible alarm. Self-test. 4-post rack mounting accessories included; 2-9USTAND and 2POSTRMKITWM accessories available. Field-replaceable, hot-swappable internal batteries and battery packs.
- 3U all-in-one chassis; 8 single-outlet switched load banks; 97% efficiency
- NEMA L6-30P input; 8 NEMA 5-15/20R, 2 L6-20R & 1 L6-30R outlets
- USB, Serial, EPO & optional SNMP/Web card monitoring options
- 5kVA / 5000VA line interactive 3U rack/tower UPS; Sine wave output
- 208 & 120V output during brownouts to 167 and overvoltages to 260V
| Brand | |
|---|---|
| Brand | Eaton Corporation |
| Power & Battery | |
|---|---|
| Emergency Power OFF | Yes |
| Receptacle Detail | 8 x NEMA 5-15/20R |
| Receptacle Type | NEMA 5-15/20R |
| Plug/Connector Type | NEMA L6-30P |
| Battery Chemistry | Lead Acid |
| Battery Characteristics | Maintenance-free |
| Typical Battery Recharge Time | 4 Hour |
| Input Voltage | 208 V AC |
| Output Voltage | 208 V AC |
| Input Current | 27 A |
| Load Capacity (Watt) | 3750 W |
| Load Capacity (VA) | 5000 VA |
| Backup/Run Time (Full Load) | 8.50 Minute |
| Backup/Run Time (Half Load) | 20 Minute |
| Transfer Time | 4 ms |
| Networking & Connectivity | |
|---|---|
| Modem (RJ-11) | Yes |
| Network Management | SNMP Manageable |
| USB Ports | |
|---|---|
| USB | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Tower |
| Rack Height | 3U |
| General Features | |
|---|---|
| Hot Swappable | Yes |
| Manufacturer | Eaton Corporation |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 1 |
| Misc Ports | |
|---|---|
| Serial Port | Yes |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Brand | Eaton Corporation |
| UPC/GTIN | 037332121462 |
| MPN | SMART5000XFMRXL |
| Unit Count | 1 Units |
| Warranty | 3 Year |
