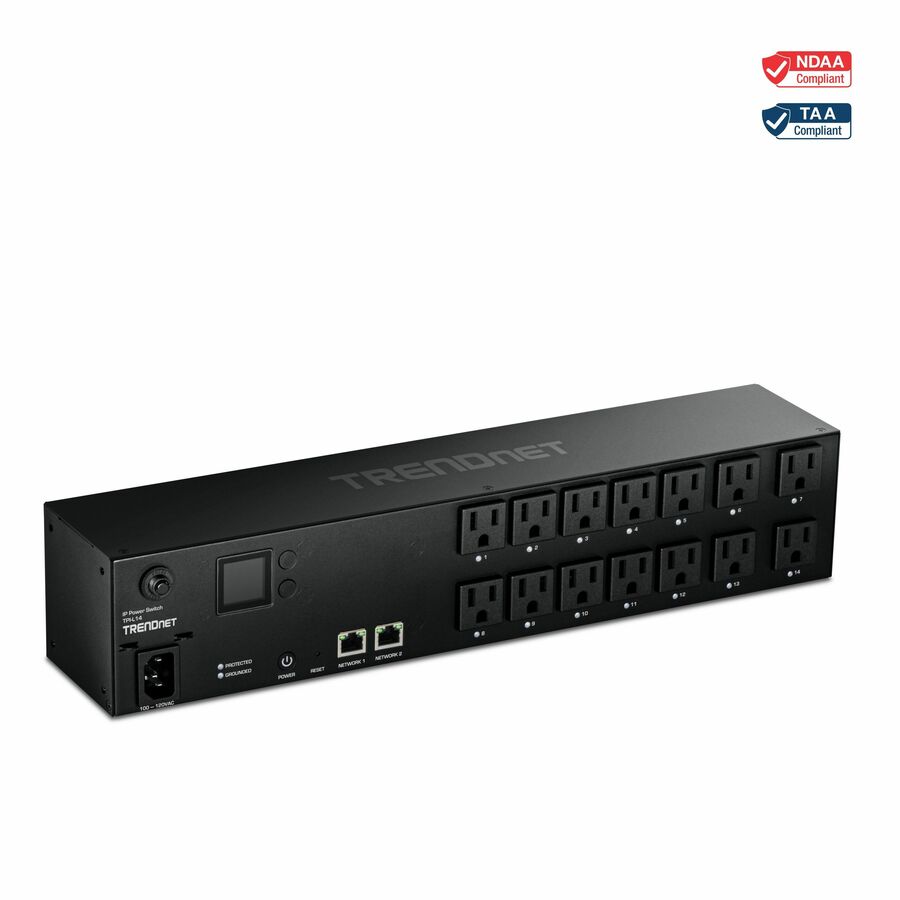

TRENDnet's 14-Outlet Managed 2U Rackmount Switched Power Distribution Unit, model TPI-L14, provides a networkable power solution with intelligent monitoring and management capabilities. Automate outlet reboot settings in case of connection loss to ensure efficient usage of available resources, control power consumption, and protect the safety of connected equipment. Fanless design eliminates operating noise.
The 14-Outlet Managed Rackmount Power Distribution Unit features 14 NEMA 5-15R managed power outlets, two gigabit ports, and an LCD screen. Each managed power outlet is controllable individually. The two gigabit ports ensure network redundancy in the event of a network failure from one of the network ports. The TPI-L14 switched PDU filters AC for best electronics performance, while simultaneously reducing excess energy usage with power scheduling. The LCD screen displays vital information, such as power usage and network information, all while allowing the ability to easily manage each individual power outlet.
Easily manage and configure the switched PDU remotely with TRENDnet Hive™. TRENDnet Hive is a network cloud manager that reduces management time and cost. No additional hardware, server, or personal cloud is required with TRENDnet's reliable cloud service.
Ports
14 x NEMA 5-15R power outlets, and 2 x Gigabit RJ45 ports for network redundancy
Managed PDU
Supports individual control of power outlets, and to assign a power schedule to automate the process.
Fanless
Fanless design eliminates operating noise.
Switched PDU
Supports individual control of power outlets, and to assign a power schedule to automate the process
Ports
14 x NEMA 5-15R managed power outlets and 2 x Gigabit RJ45 ports for network redundancy
Hive Enabled
Remotely manage, configure, and diagnose this IP power strip via TRENDnet's cloud service (Additional fee applies)
LCD Screen
Easily manage individual outlets, display energy usage, and network information on the switched PDU
Fanless
Fanless design of the switched PDU eliminates operating noise
Email Notifications
Email notifications for safe voltage, overload break, and host timeout events
2U 19" Adjustable Rack Mountable
Sturdy rack mountable metal housing with mounting kit included
Wall Mountable
Wall mountable PDU with wall mounting kit included
LED Indicators
LED indicators on this switched PDU conveniently convey AC ground status
- 14 x NEMA 5-15R managed power outlets
- 2 x Gigabit ports
- Supports STP/RSTP for network redundancy
- Individual controllable outlets
- Automate outlet reboot settings in case of connection loss
- Port power on/off delay for custom applications
- Manage outlet control and monitor power consumption
- Remote cloud management with TRENDnet Hive (Additional fee applies)
- Protects connected equipment from power surges & dangerous voltage conditions
- Filters AC for best electronics performance
- LED indicators conveniently convey AC ground status, and outlet status
- LCD screen conveniently displays power consumption, network information, and outlet controls
- View per outlet energy usage via dashboard
- Reduces excess energy consumption by creating power schedules
- Event email notifications
- 2U 19" Rack mountable
- Input Voltage 100-120VAC
- Certifications: UL 62368-1, IEC 61000-4-5 Class 3, and IEC 61000-4-2 Level 2
- NDAA / TAA compliant (U.S. and Canada only)
| Brand | |
|---|---|
| Brand | TRENDnet |
| Power & Battery | |
|---|---|
| PDU Type | Managed |
| Remote Outlet Switching | Yes |
| Input Frequency | 60 Hz |
| Circuit Breaker | Yes |
| Receptacle Detail | 14 x NEMA 5-15R |
| Receptacle Type | NEMA 5-15R |
| Plug/Connector Type | AC Power |
| Input Voltage Range | 100 V AC - 120 V AC |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Output Voltage Range | 100 V AC - 120 V AC |
| Power Source | Power Supply |
| Load Capacity (Watt) | 14.11 W |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack |
| Mount Type | Rack-mountable |
| Rack Height | 2U |
| General Features | |
|---|---|
| Protection Type | Surge Protection |
| Manufacturer | TRENDnet |
| Cables | |
|---|---|
| Cord Length | 5.91 ft |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| TAA Compliant | Yes |
| UL Listed | Yes |
