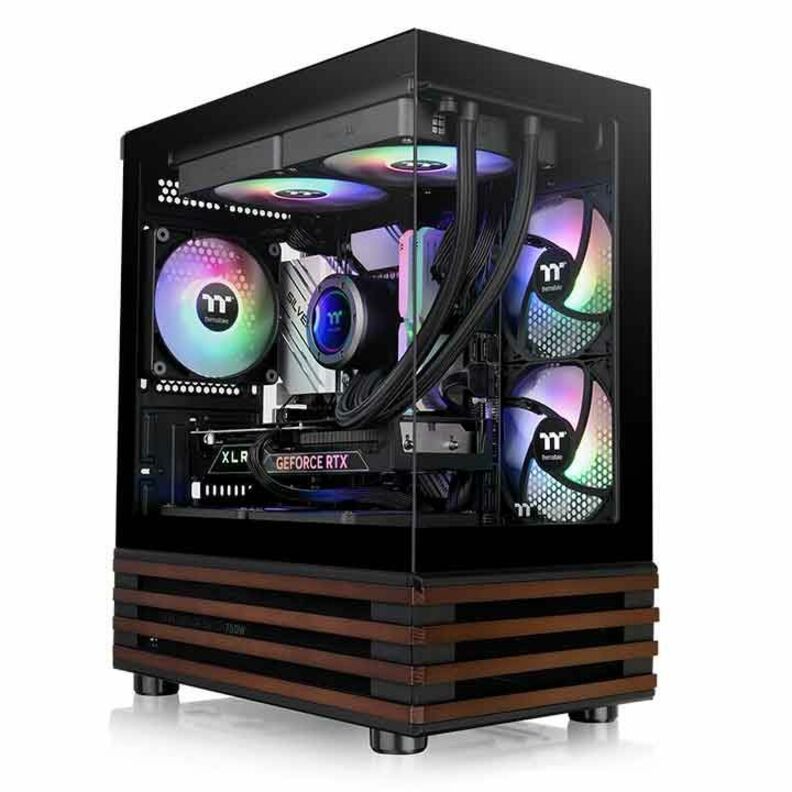

View 170 WS ARGB Micro Chassis
Built for amazing views, the View 170 WS ARGB Micro Chassis is an M-ATX case accented with stylish wood elements, featuring tempered glass front and left panels, and comes with two 120mm ARGB Lite Reverse Fan on motherboard side and one 120mm ARGB Lite Fan pre-installed. Its RGB lighting can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock. Additionally, up to seven 120mm fans can be installed in the chassis, and up to a 280mm/240mm radiator can be placed on the top of the View 170 WS ARGB Micro Chassis.
Tempered Glass Front and Left Panels
The View 170 WS ARGB Micro Chassis is designed for better visibility, allowing users to enjoy their system through the tempered glass front and left panels.
Up to a 280mm/240mm Radiator
Providing good cooling support, users can choose to place a 280mm/240mm radiator on the top of the View 170 WS ARGB Micro Chassis.
Pre-installed Fan System
The View 170 WS ARGB Micro Chassis comes with two 120mm ARGB Lite Reverse Fan on the motherboard side and one 120mm ARGB Lite Fan at the rear. It's fascinating lighting effects can be controlled by motherboard software from ASUS, GIGABYTE, MSI, and ASRock.
Flexibility to Build Your Ideal PC
The View 170 WS ARGB Micro Chassis offers good expandability. It can support a CPU cooler with a maximum height of 160mm, GPU placement up to 340mm in length, a power supply up to 180mm in length. Optimized for excellent cooling performance, the case comes with two 120mm ARGB Lite Reverse Fan on motherboard side and one 120mm ARGB Lite Fan at the rear, and up to seven 120mm fans can be installed. For radiator compatibility, it can support up to a 280mm/240mm on top, giving more options for high-end expansion!
Dimensions
CPU Cooler
Max height 160mm
Motherboard
6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX)
PSU
Max length 180mm
VGA
Length limitation 410mm (Without radiator) 340mm
Fan Capacity
- 120mm
- 140mm
Radiator Capacity:
- 120mm
- 140mm
- 240mm
- 280mm
How Much Storage Is Totally Up To You
For storage compatibility, the View 170 WS ARGB Micro Chassis gives maximum support of up to two 2.5'' SSDs and one 3.5'' HDD in total.
Handy I/O Ports
Two USB 3.0 ports and an HD audio port are located on the top panel for instant access when needed.
- Mini ITX motherboard builds a perfect symmetry of hardware components required in media server or NAS box
- 3 bays help in upgrading the system by increasing number of hardware components
| Brand | |
|---|---|
| Brand | Thermaltake Technology Co. |
| GPU / Graphics | |
|---|---|
| Maximum GPU Length | 13.39" |
| Power & Battery | |
|---|---|
| Maximum PSU Length | 7.09" |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 2 |
| Front USB | Yes |
| USB Port Details | 2 x USB 3.0 |
| Audio Ports | |
|---|---|
| Total Number of Audio Out Por | 1 |
| Total Number of Audio In Ports | 1 |
| Front Audio In | Yes |
| Front Audio Out | Yes |
| Appearance | |
|---|---|
| Window Panel | Yes |
| Window Panel Location | Left Side |
| General Features | |
|---|---|
| Motherboard Supported | Micro ATX |
| Cooler Type | Fan Cooler |
| Installed Fan Size | 4.72" |
| Installed Fan Size Details | 3 � 120mm |
| Fan Size Supported | 5.51" |
| Maximum CPU Cooler Height | 6.30" |
| Manufacturer | Thermaltake Technology Co., Ltd |
| Number of Fans Supported | 7 |
| Number of Fans Installed | 3 |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 4 |
| Drive Bays | |
|---|---|
| Number of Total Expansion Bays | 3 |
| Number of Internal 2.5" Bays | 2 |
| Number of Internal 3.5" Bays | 1 |
