Size Down, Power Up

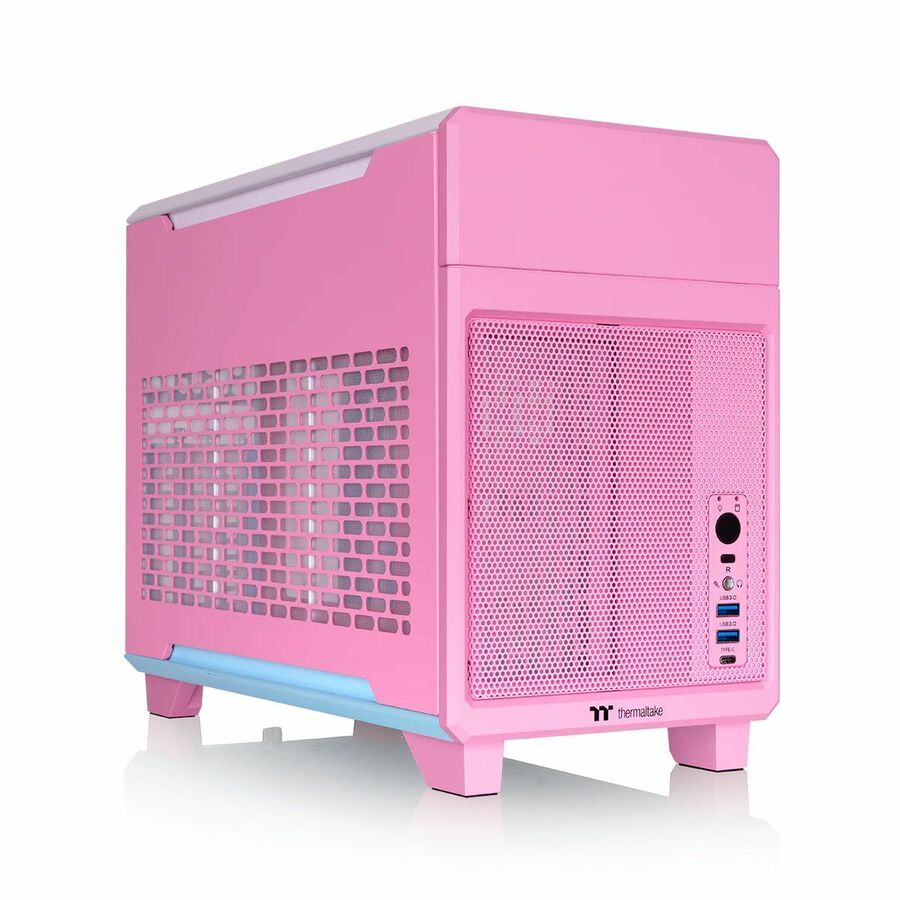

The TR100 Bubble Pink Mini Tower Chassis is a compact, dual-chamber, Mini-ITX case that is designed for those who demand performance and portability. The dual-chamber design positions the mini-ITX motherboard and SFX PSU in the right chamber, with the graphics card in the left, connected via a PCIe 4.0 riser cable. It supports two 120mm/140mm top fans and up to a 280mm AIO for cooling, plus two 2.5" SSDs, one in each chamber. All panels are removable and well-ventilated for optimal cooling and an easier build. To make it more visual appealing, a separately sold 3.9" LCD Screen Kit is also an option. Additionally, the separately sold suitcase allows users to carry the PC case and a complete gaming setup with them!
Compact Design
The TR100 Bubble Pink is an 18.4-liter SFF (Small Form Factor) chassis that offers a compact footprint, delivering exceptional flexibility for both work and gaming setups.
Superior GPU Support
The TR100 Bubble Pink supports graphics cards up to 360mm in length and 70mm in thickness. The detachable rear PCI-E panel and integrated GPU holder make it easy to install and secure large, thick GPUs in a portable gaming system.
Efficient Cooling Solutions
The TR100 Bubble Pink supports up to a 240/280mm radiator (max. thickness 53mm) on the top bracket for CPU cooling. For air cooling, it accommodates a CPU cooler up to 68mm in height and two 120/140mm fans on the top.
Redefining Portable Gaming
More than just a case, The TR100 Bubble Pink is a complete, travel-ready gaming solution. Whether you're traveling for business or pleasure, editing video or designing graphics, playing games or using VR, there's no need to sacrifice performance or leave your gaming experience behind!
TT Travel Trunk for TR100
The lightweight and durable luggage is designed to carry the PC case and a full gaming setup, including a VR headset, portable monitor, keyboard, and mouse.
Easy Access with Removable Panels
The TR100's modular design allows you detach almost every panel. The side panels are secured with magnets, while the top and bottom panels are held by spring-loaded captive screws.
Easy Access with Removable Panels
The TR100's modular design allows you detach almost every panel. The side panels are secured with magnets, while the top and bottom panels are held by spring-loaded captive screws.
SFX PSU Support
The TR100 Bubble Pink features a removable PSU bracket and two sets of screw holes, supporting both SFX and SFX-L PSUs for higher wattage needs.
Visually Pleasing, Totally Interactive
Maximize your TR100's visual effects by upgrading it with our LCD Screen Kit.
The 3.9" LCD Display allows you to monitor real-time information and upload any images or GIFs to add extra flair using the TT RGB Plus software.
Personalize Your LCD Display
Through the TT RGB Plus, the 3.9'' LCD display presents real-time information and plays JPG and GIF files with 128*480 resolution. What's more is users can even show the time and weather information on the display, bringing great visual aesthetics and highly customizable functions to your build.
- Mini ITX motherboard builds a perfect symmetry of hardware components required in media server or NAS box
- The small-sized mini-tower offers a power-pack performance and portability
| Brand | |
|---|---|
| Brand | Thermaltake Technology Co. |
| GPU / Graphics | |
|---|---|
| Maximum GPU Length | 14.17" |
| Screen / Display | |
|---|---|
| Screen Size | 3.9" |
| Power & Battery | |
|---|---|
| Maximum PSU Length | 5.12" |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 3 |
| Front USB | Yes |
| USB Port Details | 2 x USB 3.0 Type-A |
| Audio Ports | |
|---|---|
| Total Number of Audio Out Por | 1 |
| Total Number of Audio In Ports | 1 |
| Front Audio In | Yes |
| Front Audio Out | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Mini-tower |
| Appearance | |
|---|---|
| Window Panel | Yes |
| Window Panel Location | Top |
| General Features | |
|---|---|
| Motherboard Supported | Mini ITX |
| Cooler Type | Fan Cooler |
| Fan Size Supported | 5.51" |
| Maximum CPU Cooler Height | 2.68" |
| Manufacturer | Thermaltake Technology Co., Ltd |
| Number of Fans Supported | 2 |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 3 |
| Drive Bays | |
|---|---|
| Number of Internal 2.5" Bays | 2 |
