Immersive Multi-Screen Fusion
Reimagine the art of creative expression and transform your cooling into an interactive centerpiece. Run each screen independently for a mix of custom backgrounds and toggleable real-time data for a personalized showcase look, or using the provided presets to combine the displays into one expansive canvas to show off graphics that stretch around the cube.
TT LCD Screen Software
Designed for the MINECUBE's Quad-LCD display, TT LCD Screen Software combines advanced tools with flexible controls for next-level personalization. For individual screens, choose between static or animated backgrounds, with options to add in tiles that support real-time system information, as well as change screen rotation and layout to suit your preferences and orientation. In the unified display mode, choose between an assortment of preset illustrations made to stretch across all four displays, with the additional option to display real-time system information too.
Tailor Every Detail
MINECUBE allows you to fine-tune every detail of your real-time system information. Choose from a variety of backgrounds, adjust the position and size, and customize the colors and fonts for each information element. This level of flexibility ensures that your display is not only informative but also visually aligned with your personal style.
Preset Dynamic Backgrounds for Captivating Displays
With the TT LCD Screen Software, you can elevate your display with optimized preset visuals, offering seamless multi-screen animations across all four LCD displays as well as dynamic backgrounds on a single screen. The software also supports a wide range of formats, including JPG, GIF, PNG, MP4, MOV, and AVI. Effortlessly upload your favorite images or videos to unlock creativity and achieve a distinct, personalized visual effect.
Unlocks the Full Potential of RGB Lighting
With the Swappable Fan Blade Design, the MINECUBE Ultra ARGB Sync AIO Liquid Cooler incorporates three standard blades and reversed blades, effortlessly switching between the airflow direction for intake or exhaust while fully showing lighting effects. No more sacrificing aesthetics for your airflow direction!
The Ultimate Cooling Performance of an ARGB Fan
To achieve optimal cooling efficiency for high-performance systems, the SWAFAN EX12 has a maximum operating speed of 2000 RPM.
Standard Fan Blades can provide an static pressure of 2.39 mm-H2O (Max) and 57.11 CFM (Max) airflow while maintaining under 30.6 dB-A noise level and
Reverse Fan Blades can provide an static pressure of 2.02 mm-H2O (Max) and 56.26 CFM (Max) airflow while maintaining under 32.5 dB-A noise level and
Steady Connection with MagForce 2.0
The SWAFAN EX fans included in MINECUBE Ultra ARGB Sync are upgraded to the MagForce 2.0 connector, whose Pogo pin contact pads are TWO times larger for greater tolerance. This enhancement significantly reduces the potential faulty alignment, whether you are daisy-chaining fans together or connecting fans with cable, further boosting the installation efficiency and streamlining the building experience.
Say Goodbye to Excessive Cables
Connect your fans with SWAFAN EX's MagForce 2.0 Quick Connect Design and be free from messy cables!

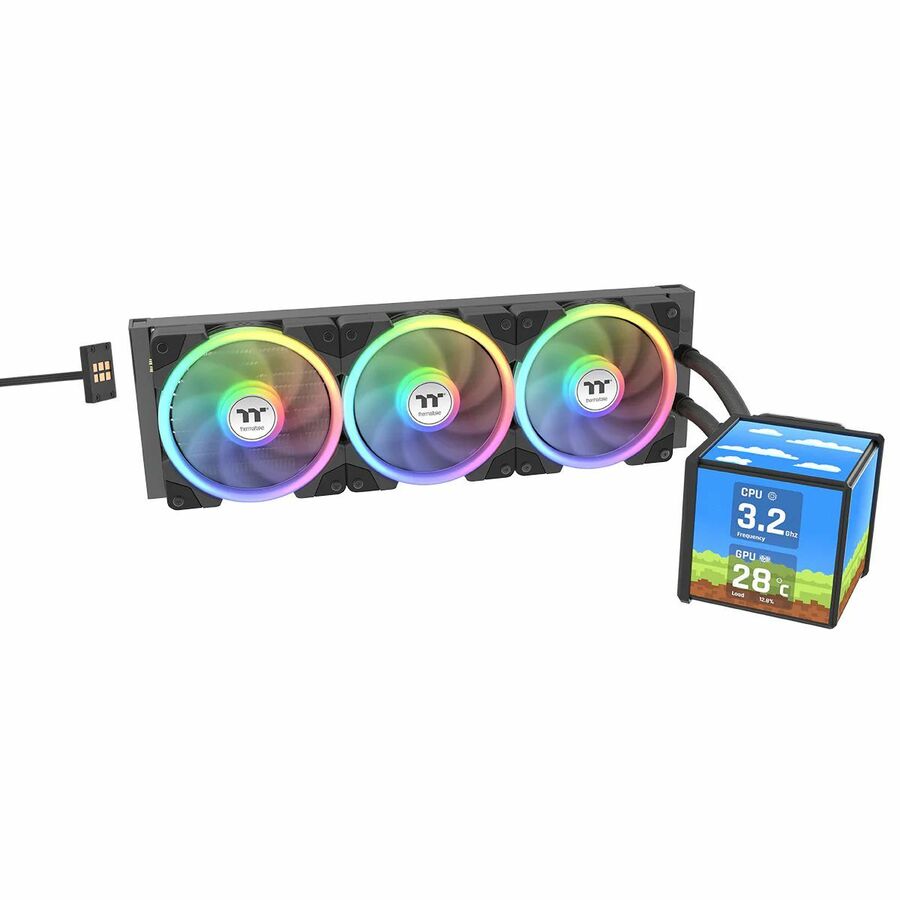

Enhanced Cooling Surface With A Compact Design
The MINECUBE Ultra ARGB Sync series has a 27mm slim radiator with a thickened 20mm copper chamber, ensuring the same easy installation but with even better cooling performance.
- Cooling Fan/Radiator/Water Block/Pump offers enhanced cooling/heating with maximum productivity
- ARGB LEDs add vibrant colors to the fan
- The competent cooling system is specially designed for standard cpus
| Brand | |
|---|---|
| Brand | Thermaltake Technology Co. |
| CPU / Processor | |
|---|---|
| Compatible Intel Socket | H3 LGA-1150 |
| Compatible AMD Socket | FM1 |
| Screen / Display | |
|---|---|
| Pulse-width Modulation (PWM) | Yes |
| Power & Battery | |
|---|---|
| Rated Current | 720 mA |
| Size / Dimensions | |
|---|---|
| Maximum Fan Diameter | 4.72" |
| Fan Depth | 0.98" |
| Fan Width | 4.72" |
| Fan Height | 4.72" |
| Radiator Depth | 1.06" |
| Radiator Width | 4.72" |
| Radiator Height | 15.59" |
| Appearance | |
|---|---|
| LED Color | ARGB |
| General Features | |
|---|---|
| Cooler Type | Liquid Cooler |
| Radiator Material | Aluminum |
| Manufacturer | Thermaltake Technology Co., Ltd |
| Maximum Air Pressure | 2.39mmH2O |
| Fan Speed (Max) | 2000 rpm |
| Fan Speed (Min) | 500 rpm |
| Number of Fans | 3 |
| Maximum Airflow | 57.11 CFM |
| Cables | |
|---|---|
| Connectors | 9PIN |
| Compliance & Certification | |
|---|---|
| Noise Levels (A-Weighted) | 32.5 dB(A) |
