Compatible with Hidden-Connector Motherboards

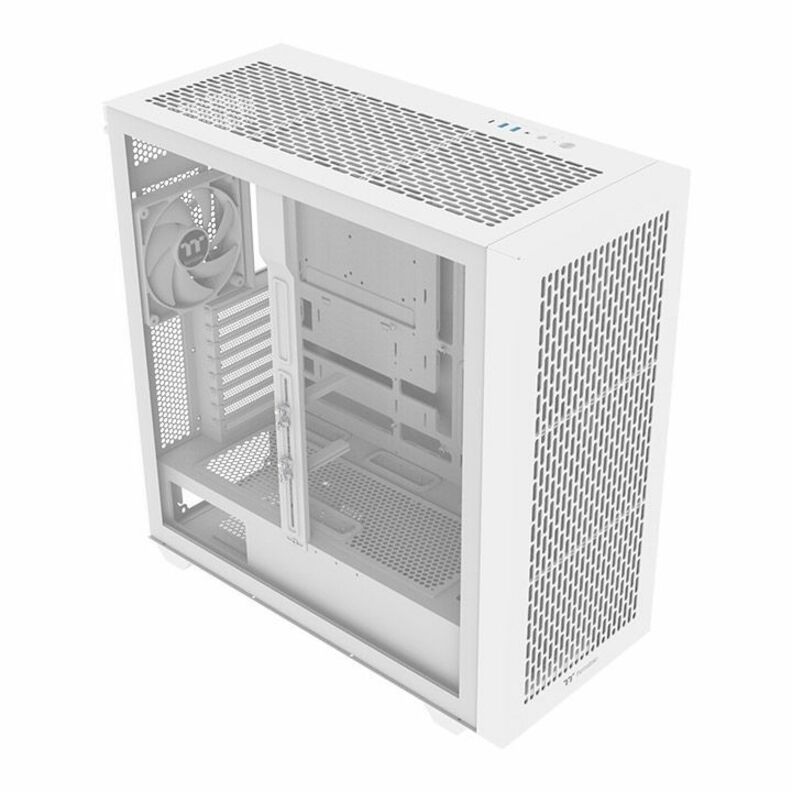

The AX500 Snow Full Tower Chassis supports up to one E-ATX/EEB motherboard, and the motherboard tray has cutouts for the latest hidden-connector ATX and micro-ATX motherboards.
Compatible with hidden-connector motherboards:
ASUS BTF Series
MSI PROJECT ZERO Series
GIGABYTE PROJECT STEALTH Series
Excellent Radiator Support
Users can install dual 420mm/360mm radiators on the top and front of the chassis for superior cooling.
Note: The top fan + radiator thickness limit is 82mm
Four 140mm CT140 Fans Pre-installed
Four 140mm CT140 fans come pre-installed in the chassis, providing effective cooling support to ensure optimal system performance.
Superior Cooling Support
Up to fourteen 120mm or nine 140mm fans can be installed. With the fan cover on, it supports one E-ATX/EEB motherboard; with the cover off, it fits three 120mm fans.
GPU Holder
The AX500 series chassis features a built-in graphics card holder for added support, preventing sagging with multiple GPUs.
Storage Support
Two drive cages under the PSU cover hold up to four hard drives, while an additional drive plate behind the motherboard supports one 3.5" or two 2.5" hard drives.
Dimensions
550*248*548mm
CPU Cooler
Max height 185mm
Motherboard
6.7" x 6.7" (Mini ITX), 9.6" x 9.6" (Micro ATX), 12" x 9.6" (ATX) , 12" x 13" (E-ATX), SSI-CEB, SSI-EEB
PSU
Max length 200mm
GPU
Length limitation 460mm
Fan Capacity
- 120mm
- 140mm
Radiator Capacity
- 120mm
- 140mm
- 240mm
- 280mm
- 360mm
- 420mm
Perfect Dust Protection
The AX500 Snow Full Tower Chassis features dust filters on the front, top, bottom, and motherboard sides to protect the system.
Handy I/O Ports
The top I/O ports include:
- 1 x USB 3.2 Gen 2 Type-C
- 2 x USB 3.0 Type-A
- HD Audio
- Reset Button
- HDD LED
- Power Button with LED
- Mini ITX motherboard builds a perfect symmetry of hardware components required in media server or NAS box
- 6 bays help in upgrading the system by increasing number of hardware components
- For a better airflow, full-tower structure supports up to 14 fan(s) with ample space to store hardware
| Brand | |
|---|---|
| Brand | Thermaltake Technology Co. |
| GPU / Graphics | |
|---|---|
| Maximum GPU Length | 18.11" |
| Power & Battery | |
|---|---|
| Maximum PSU Length | 7.87" |
| USB Ports | |
|---|---|
| Total Number of USB Ports | 3 |
| USB Port Details | 2 x USB 3.0 Type-A |
| Audio Ports | |
|---|---|
| Total Number of Audio Out Por | 1 |
| Total Number of Audio In Ports | 1 |
| Size / Dimensions | |
|---|---|
| Form Factor | Full-tower |
| Appearance | |
|---|---|
| Window Panel | Yes |
| Window Panel Location | Left Side |
| General Features | |
|---|---|
| Motherboard Supported | SSI EEB |
| Cooler Type | Fan/Liquid Cooler |
| Installed Fan Size | 5.51" |
| Installed Fan Size Details | 4 x 140mm |
| Fan Size Supported | 5.51" |
| Maximum CPU Cooler Height | 7.28" |
| Manufacturer | Thermaltake Technology Co., Ltd |
| Number of Fans Supported | 14 |
| Number of Fans Installed | 4 |
| Expansion Slots | |
|---|---|
| Total Number of Expansion Slots | 8 |
| Drive Bays | |
|---|---|
| Number of Total Expansion Bays | 6 |
| Number of Internal 2.5" Bays | 6 |
