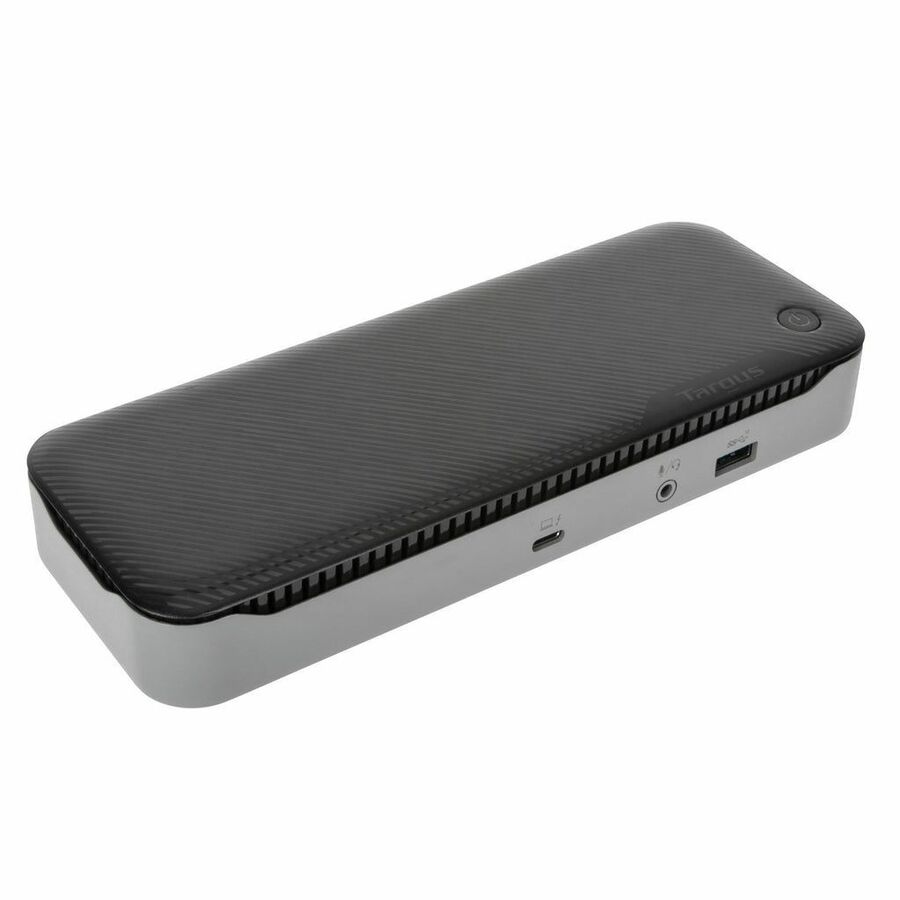

Enjoy Thunderbolt speeds and high-resolution graphics with DOCK215USZ, the ideal Thunderbolt™ 3 docking station. Designed for graphics departments, video-editing agencies, photography studios, animators, and frequent CAD and CAM users, DOCK215 offers compatibility with most laptop brands and connects to dual 4K UHD monitors at 60hz or a single 8K HDR monitor at 30hz.
Packed with ports, this patented alternate mode Thunderbolt 3 dock comes with two USB-C 3.2 Gen 2 port and two USB-A 3.2 Gen 1 ports and one USB-A 3.2 Gen 2 port to accommodate workspace peripherals like a mouse and keyboard, external drive and more. Top that off with 85W power delivery and ease-of-use in a compact form factor, and DOCK215USZ is the perfect dock to keep creatives connected, powered, and productive.
Its compact design ensures it doesn't take up precious desk real estate for working essentials. A rubber-padded bottom provides grip to ensure the dock stays in one place. The dock even comes equipped with a VESA® bracket mounting provision, which allows for use of the Targus VESA Mount Bracket (ACX003GLZ - sold separately) to hold your dock behind your display for even greater space savings.
- Supports single 8K @30hz or dual 4K UHD @60hz monitor video
- 2 DisplayPort™ 1.4 ports
- Power Delivery up to 85W
- 2 USB 3.2 Gen 2 Type-C ports (10 Gbps)
- 2 USB 3.2 Gen 1 Type-A ports (5 Gbps)
- 1 USB 3.2 Gen 2 Type-A fast charging port (10 Gbps) for the latest peripherals
- 1 RJ45 Gigabit Ethernet port
- 1 3.5mm combo Audio In/Out for mics, speakers, and headphones
- 1 Thunderbolt™ 3 upstream port with 0.8M passive 40Gbps 5A Thunderbolt 3 detachable cable (C/M to C/M)
- Integrated lock slot accommodates standard security locks to safeguard equipment
| Brand | |
|---|---|
| Brand | Targus Group International |
| GPU / Graphics | |
|---|---|
| Number of Displays Supported | 2 |
| Screen / Display | |
|---|---|
| Screen Mode Supported | 8K |
| Supported Resolutions | 7680 x 4320 |
| USB Ports | |
|---|---|
| USB Power Delivery | 85W |
| USB Type-C | Yes |
| USB Type-A | Yes |
| Number of USB Type-A Ports | 3 |
| HDMI Ports | |
|---|---|
| Number of HDMI Ports | 0 |
| Thunderbolt Ports | |
|---|---|
| Thunderbolt | Yes |
| Number of Thunderbolt 3 Ports | 1 |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Number of DisplayPorts | 2 |
| DisplayPort Version | 1.4 |
| Number of Mini DisplayPort | 0 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Number of RJ-45 Ports | 1 |
| Audio Ports | |
|---|---|
| Headphone/Microphone Combo Po | Yes |
| Security | |
|---|---|
| Kensington Security Slot | Yes |
| General Features | |
|---|---|
| Maximum Data Transfer Rate | 1.25 GB/s |
| Manufacturer | Targus Group International |
| Misc Ports | |
|---|---|
| Host Interface | Thunderbolt 3 |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
