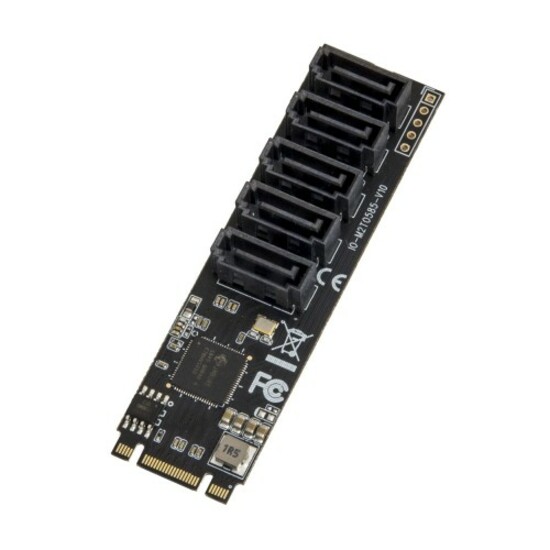

Using the JMB585 chipset, the SI-ADA40141 can provide M.2 (PCIe Gen3 x2 bandwidth) to 5 Port SATA 6Gb / s card solution. For the storage solution based on data transfer of multiple hard drives, the newly added FIS-based switching design can overcome the bottlenecks created by operating multiple SATA storage devices simultaneously. The data transmission rate of the JMB585 can achieve to 1700MB/s, which is the maximum transfer speed of PCIe Gen3 x2.
- 2-Lane M.2 PCI-Express 3.0 interface (B and M Key). Complies with PCI Express Base Specification Revision 3.1a.
- This card is only design for storage use only, can not boot any OS / System drives. Backed by Syba 3 Year Hassle-free Warranty and Lifetime Customer Service.
- Can support Port Multiplier that is not in a RAID configuration. Compatible with SATA hard drives and solid state drives and computer systems with SATA controllers.
- Plug and play supported, no additional software installation or setting required.
- Connect five SATA drives to a M.2 B+M Key Connection, providing up to 1700 MB/s speed.
| Brand | |
|---|---|
| Brand | SYBA Multimedia |
| Storage | |
|---|---|
| RAID Supported | No |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| General Features | |
|---|---|
| Controller Type | Serial ATA/600 |
| Manufacturer | SYBA Multimedia, Inc |
| Misc Ports | |
|---|---|
| SATA Connector Details | 5 |
| Host Interface | PCI Express 3.0 x2 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
