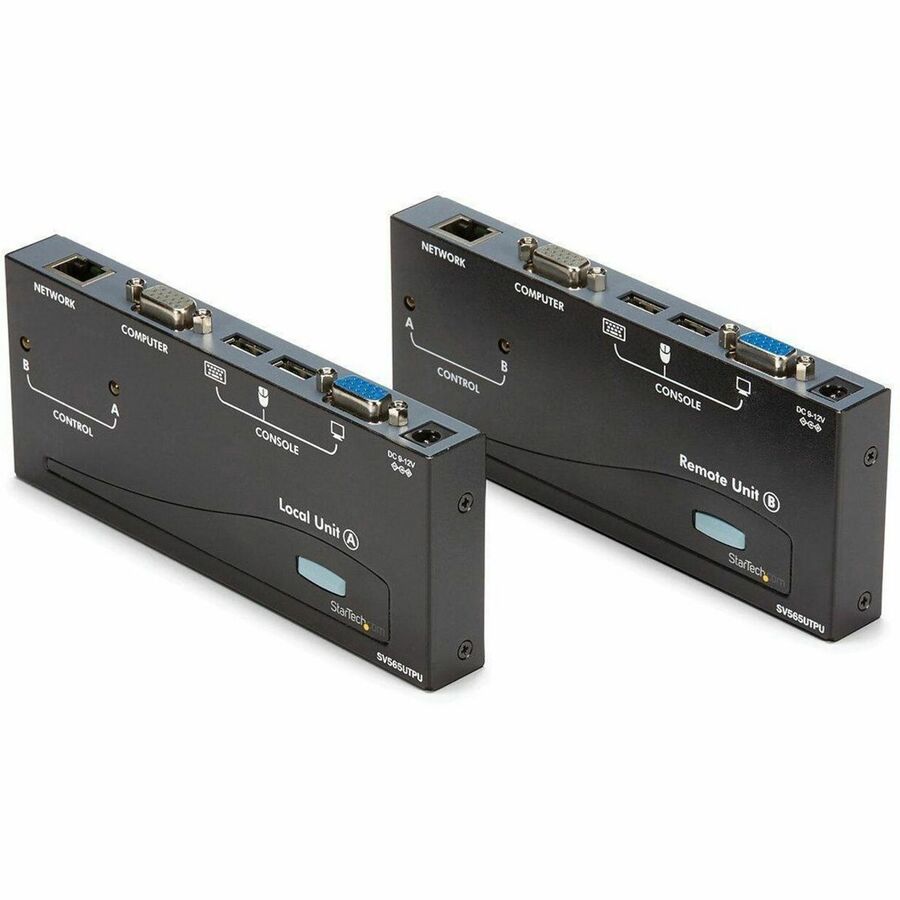

The SV565UTPU USB VGA KVM Console Extender over CAT5 UTP (500 ft) lets you control a server, computer or multiple computers (connected through KVM Switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 500 ft (150 m) away. PC connection cables are included with this product for a ready out of the box solution. You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location. This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support. More from the Manufacturer
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this CAT5 KVM extender is backed for 2-Years, including free lifetime 24/5 multi-lingual technical assistance
- EASY INSTALLATION: Plug and play KVM over Ethernet extender is easy to install using industry-standard UTP network cables and is OS independent, requiring no software or drivers to install
- FLEXIBLE CONFIGURATION: KVM console extender can be used with a single computer or connected to an existing KVM switch; Offers broad support for USB keyboards, mice, and even most combo/wireless configurations
- COST-EFFECTIVE KVM EXTENSION: The KVM Extender provides a cost-effective way to convert existing standard KVM units into remote-access hardware, extending the capabilities of your hardware
- REMOTE OPERATION: Use the VGA over CAT5 extender to control a USB & VGA KVM or PC up to 500ft (150m) away; Supports hotkey commands, auto-switching between host and remote unit or dedicated control
| Brand | |
|---|---|
| Brand | StarTech.com |
| GPU / Graphics | |
|---|---|
| Graphic Mode | XGA |
| Power & Battery | |
|---|---|
| Input Voltage Range | 110V AC to 240V AC |
| Input Voltage | 240 V AC |
| Power Consumption | 5.40 W |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 4 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Network (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 1024 x 768 |
| Software & Licensing | |
|---|---|
| Number of Local Users Support | 1 |
| Number of Remote Users Suppor | 1 |
| Size / Dimensions | |
|---|---|
| Transmitter Weight (Approxima | 1.32 lb |
| Receiver Length | 3" |
| Transmitter Length | 3" |
| Form Factor | Desktop |
| Receiver Width | 6.10" |
| Receiver Weight (Approximate) | 1.32 lb |
| Receiver Height | 0.80" |
| Transmitter Height | 0.80" |
| Transmitter Width | 6.10" |
| General Features | |
|---|---|
| KVM Technology | Analog |
| Maximum Operating Distance | 500 ft |
| Manufacturer | StarTech.com |
| Number of Computers Supported | 2 |
| Video Ports | |
|---|---|
| VGA | Yes |
| Number of VGA Ports | 4 |
| Compliance & Certification | |
|---|---|
| REACH free of SVHC | Yes |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
