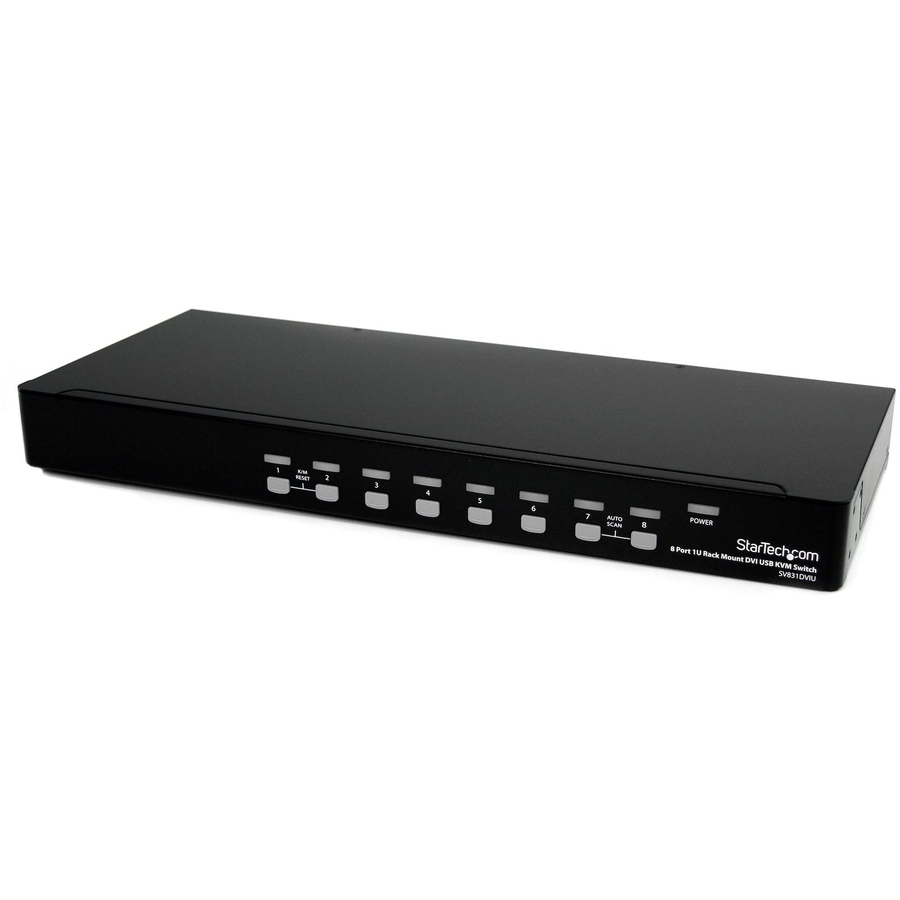

The SV831DVIU 8-Port 1U Rack Mount DVI USB KVM Switch lets you control up to 8 USB-connected computers (each with DVI or HDMI display output) from a single keyboard, mouse and monitor.
The KVM switch offers maximum control, allowing you to switch computers using hot-key commands or front panel push-buttons. Supporting digital resolutions up to 1920x1200 via DVI or HDMI connection (using DVI to HDMI adapter - see accessories), the KVM provides the high resolutions recommended for newer displays, allowing you to take full advantage of your monitor/screen capability.
A perfect addition to any server room or software test lab, this 8-port switch can be rack-mounted into 1U of cabinet space.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
Note: This KVM supports digital signals only, and cannot be used with DVI-to-VGA adapters.
More from the Manufacturer
- and restored when switching
- Supports Mac and Sun keyboard mapping - Keyboard states automatically saved
- USB console interfaces for keyboard and mouse
- Connects to USB-based computer systems
- Auto-scan function cycles through computers sequentially
- Front panel push-buttons and Hot-key functions allow for easy switching
- OS independent - No software or drivers required
- Support for most combo/wireless keyboard and mice
- Supports DVI/HDMI resolutions up to 1920x1200
- Can be used with DVI to HDMI adapters to connect HDMI based systems
| Brand | |
|---|---|
| Brand | StarTech.com |
| GPU / Graphics | |
|---|---|
| Graphic Mode | WUXGA |
| Power & Battery | |
|---|---|
| Input Voltage Range | 110V AC to 240V AC |
| Input Voltage | 240 V AC |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 10 |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 1920 x 1200 |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| General Features | |
|---|---|
| Manufacturer | StarTech.com |
| Number of Computers Supported | 8 |
| Video Ports | |
|---|---|
| DVI | Yes |
| Number of DVI Ports | 9 |
| Compliance & Certification | |
|---|---|
| REACH free of SVHC | Yes |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
