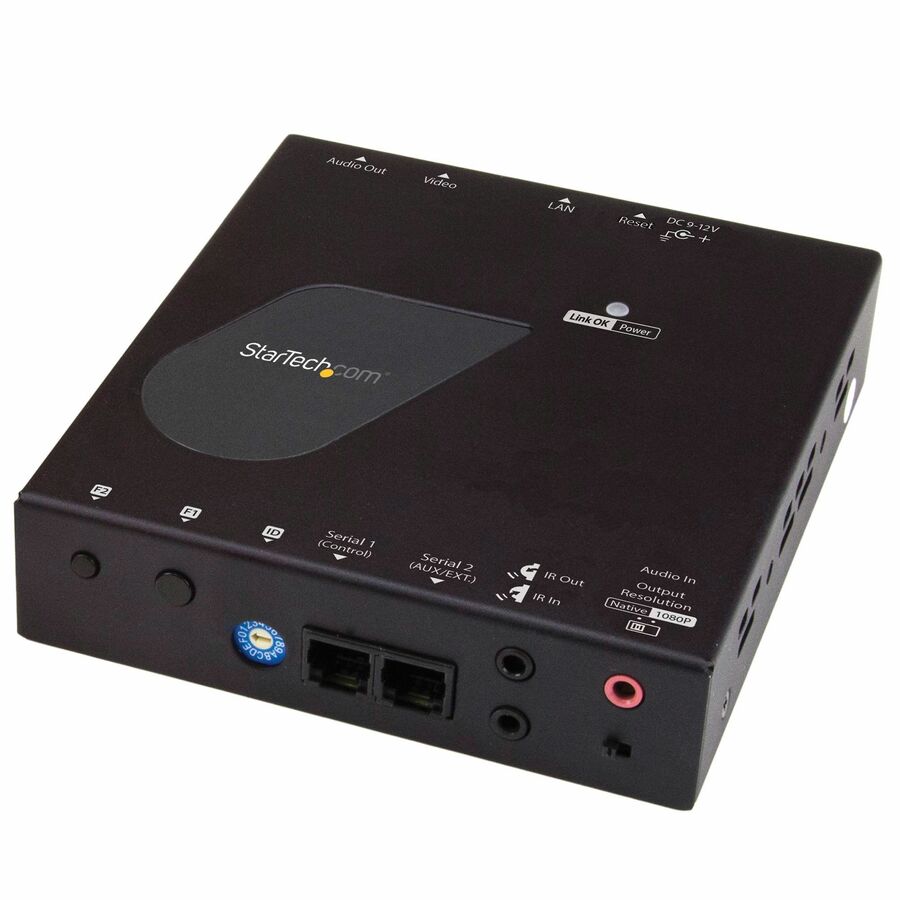

This HDMI® over IP Receiver works with the HDMI over IP Extender Kit ST12MHDLAN4K (sold separately). Designed for IT professionals, system integrators, and digital signage specialists, this solution delivers unmatched flexibility for scaling video distribution without the limitations of traditional HDMI splitters or fixed extenders.
Scalable HDMI Over IP
Easily expand your A/V distribution setup and build dynamic video walls using the ST12MHDLAN4K extender kit and additional receivers:
- One-to-Many: Connect up to 16 receivers to a single transmitter, ideal for broadcasting HDMI over IP to multiple displays
- Many-to-Many: Integrate up to 16 ST12MHDLAN4K extender kits and additional ST12MHDLAN4R receivers with a maximum of 16 transmitters and 256 receivers.
Centralized Video Control App
The included iOS/Android Video Control App empowers administrators to name sources and displays, switch inputs, and configure video walls, all from a mobile device. With RS232 passthrough, TVs or serial-controlled devices can be managed remotely through the same network.
Flexible Installations for Any Environment
Perfect for digital signage in retail, hospitality, and corporate settings, as well as command centers or other mission-critical environments. The kit includes mounting hardware for clean shelf or rack installations and supports both static and dynamic signage needs.
Note: For optimal performance, a managed network switch with IGMP is recommended when using more than one transmitter or more than four receivers. Non-managed switches may impact the performance of other devices on your network. Jumbo frames support must be enabled to stream 4K video effectively.
- The IT Pro's Choice: Backed by decades of connectivity expertise from legacy VGA to modern USB4 and AVoIP solutions; TAA compliant for government and enterprise procurement; Work with a single trusted partner for all your A/V connectivity needs
- Flexible Deployment: Suitable for digital signage in retail, hospitality, corporate or any other environment, as well as mission-critical video wall setups in command and control rooms; Mounting brackets included
- Scalable HDMI over IP: Easily expand your A/V network with one-to-many or many-to-many video wall setups by simply adding transmitters and receivers; Requires adequate network bandwidth and multicast / jumbo frames support
- Video Control App and RS232: Control video routing in a centralized way with the free iOS/Android app; Name sources/displays, set up video walls, and use RS232 passthrough to manage TVs or serial devices remotely
- Receiver for ST12MHDLAN4K: Extend your HDMI over IP Extender Kit (ST12MHDLAN4K) with this 4K receiver; Ideal for IT teams and system integrators building scalable, cost-effective and future-ready A/V systems without splitters or fixed extenders
| Brand | |
|---|---|
| Brand | StarTech.com |
| GPU / Graphics | |
|---|---|
| Graphics Modes | 4K |
| Power & Battery | |
|---|---|
| Power Plug Type | Type M |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| Number of HDMI Outputs | 1 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 3840 x 2160 |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Receiver Width | 4.60" |
| Receiver Weight (Approximate) | 1.31 lb |
| Receiver Height | 1.20" |
| Receiver Depth | 5.20" |
| General Features | |
|---|---|
| Number of Output Devices Supp | 1 |
| Maximum Operating Distance | 328.08 ft |
| Supported Video Modes | 720p |
| Manufacturer | StarTech.com |
| Number of Output Devices Supported | 1 |
| Misc Ports | |
|---|---|
| Remote (IR) Input | 1 |
| Remote (IR) Output | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Twisted Pair Cable Standard | Category 5e |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
