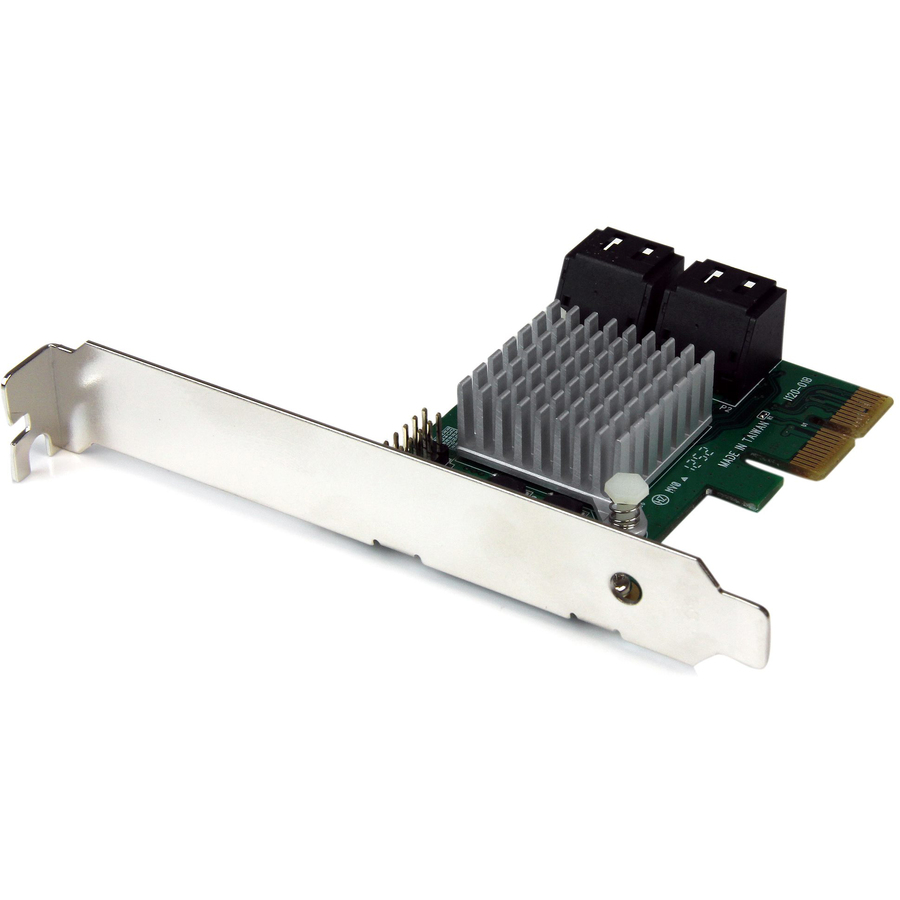

The PEXSAT34RH 4-Port PCI Express 2.0 SATA Controller Card with HyperDuo adds 4 AHCI SATA III ports to a computer through a PCIe slot (x2), delivering multiple internal 6Gbps connections for high-performance hard drives and Solid State Drives (SSDs). Featuring HyperDuo technology, the SATA card offers SSD auto-tiering which lets you balance the performance advantages of SSD storage with the cost-effectiveness and large capacity of standard hard drives. By combining SSD and HDD drives into a single volume (up to 3 SSD + 1 HDD), HyperDuo discreetly works in the background to identify and move frequently accessed files to the faster SSD drive(s) for improved data throughput - up to 80% of SSD performance! (Note: The HyperDuo automatic storage tiering feature is compatible with computers that use a BIOS.) The PCIe SATA controller card supports Port Multiplier (PM), enabling multiple SATA drives to be connected to one port over a single cable, for a total of 7 drives (Up to 4 drives through PM on one port, and a single drive to the remaining 3 ports). Plus, the SATA controller card offers an effective hardware RAID solution, with native RAID (0, 1, 1+0) support. Throughput Benchmark Drive configuration Throughput Drive size 1 x HDD 112.81 MB/s 2 TB 1 x SSD 490.28 MB/S 120 GB 1 x HDD + 1 x SSD HyperDuo (Safe Mode) 489.28 MB/s 2 TB 1 x HDD + 2 x SSD HyperDuo (Safe Mode) 715.13 MB/s 2 TB Drives Used: SSD: OCZ Vertex 3 Series 2.5" 120 GB (VTX3-25SAT3-120G) HDD: Western Digital Caviar Green 3.5" 2 TB (WD20EARS) Software Used: IO Meter, 256KB Sequential Read, queue depth = 10 This PCIe SATA 6gbps card is backed by a 2-year StarTech.com warranty and free lifetime technical support. More from the Manufacturer
- THE IT PRO'S CHOICE: IT professionals choice for over 30 years; This SATA PCIe adapter controller card converter is backed for 2 years, including free 24/5 North America based multi-lingual assistance
- EASY INSTALL: Expansion card includes full and low-profile brackets for PCIe slot compatibility - Marvell Storage Utility software included for card configuration and drive management
- COMPATIBILITY: Supports PCIe 2.0, SATA III & AHCI specs and backwards compatible w/ earlier versions - Supports Windows, Mac, and Linux and is also compatible with Optical/Blu-Ray drives - NOTE: HyperDuo configuration supported in Windows only
- MARVELL RAID CONTROLLER: JBOD or Hardware RAID 0, 1, and 1+0 modes can be configured through BIOS - HyperDuo feature allocates frequently accessed files to faster SSD drive - Supports Port Multiplier, Native Command Queuing (NCQ) and ATA/ATAPI commands
- HIGH-PERFORMANCE: Add four SATA III 6Gbps ports to your desktop computer or server using a PCIe x1 slot to connect SATA drives (HDD/SSD); 4-Po
| Brand | |
|---|---|
| Brand | StarTech.com |
| Storage | |
|---|---|
| RAID Supported | Yes |
| RAID Levels | 1+0 |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| Card Height | Low-profile |
| Maximum Height Adjustment (Above) | 0.8" |
| Appearance | |
|---|---|
| Color | Not Specified |
| General Features | |
|---|---|
| Controller Type | Serial ATA/600 |
| Manufacturer | StarTech.com |
| Misc Ports | |
|---|---|
| Total Number of SATA Ports | 4 |
| Number of SATA Ports (Internal) | 4 |
| Host Interface | PCI Express 2.0 x2 |
| Compliance & Certification | |
|---|---|
| REACH free of SVHC | Yes |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Brand | StarTech.com |
| UPC/GTIN | 065030849951 |
| MPN | PEXSAT34RH |
| Unit Count | 1 Units |
| Warranty | 2 Year |
| Return Policy | This product is eligible for 30-day returns. See our return policy for details. |
| Customer Reviews | 2.9 (17) |
