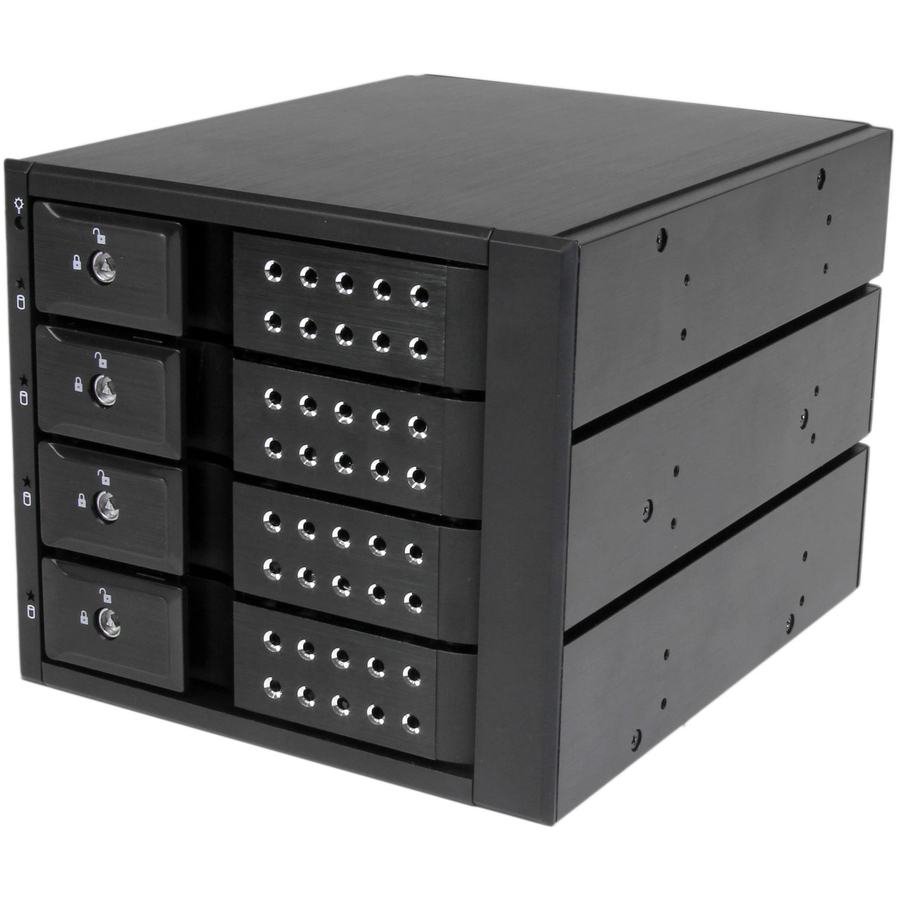

The HSB4SATSASBA Removable 4-drive Backplane makes inserting and removing drives fast and easy, by turning three 5.25" bays into a hot-swappable interface for up to four 3.5" SATA or SAS hard drives (HDD). For added versatility, the hot swap bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal solution for enterprise system applications. For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides drive cooling with a built-in fan and excellent heat dissipation with a vented aluminum enclosure. The HSB4SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support. More from the Manufacturer
- THE IT PRO'S CHOICE: Designed and built for IT professionals, this 4-Bay hard drive backplane is backed for 2 years, including free lifetime 24/5 multi-lingual technical assistance
- MAINTAIN OPTIMAL TEMPERATURE: To help prevent drive failure, the 4-drive hot swap backplane features a vented solid aluminum enclosure that provides excellent heat dissipation in addition to a built-in fan with speed control; UL VO flammability rated
- EASY TO USE: For a quick and secure method of installing and removing drives, this trayless hot swap mobile rack backplane features individual ejection levers for each bay and a key-lock design (includes two keys)
- MAXIMUM COMPATIBILITY: The hot swap backplane for 3.5in SAS II/SATA III can interface with SATA I/II/III and SAS I/II hard drives, an ideal solution for enterprise system applications; Power and status LEDs for each bay
- INCREASED PRODUCTIVITY: The mobile rack backplane for 3.5in SAS II/SATA III turns three 5.25in bays into a hot-swappable interface for up to four 3.5" SATA or
| Brand | |
|---|---|
| Brand | StarTech.com |
| Storage | |
|---|---|
| Number of Hard Drives Install | No |
| Number of Hard Drives Support | 4 |
| Number of Hard Drives Installed | No |
| Drive Interface | Serial Attached SCSI (SAS) |
| Number of Hard Drives Supported | 4 |
| Networking & Connectivity | |
|---|---|
| Wireless LAN | No |
| Size / Dimensions | |
|---|---|
| Form Factor | Internal |
| Compatible Drive Bay Width | 5.25" |
| General Features | |
|---|---|
| Cooling Fan | Yes |
| Manufacturer | StarTech.com |
| Drive Bays | |
|---|---|
| Number of Total Expansion Bays | 4 |
| Number of 3.5" Bays | 4 |
| Misc Ports | |
|---|---|
| Host Interface | Serial ATA/600 |
| Compliance & Certification | |
|---|---|
| REACH free of SVHC | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Brand | StarTech.com |
| UPC/GTIN | 065030859547 |
| MPN | HSB4SATSASBA |
| Unit Count | 1 Units |
| Warranty | 2 Year |
| Return Policy | This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. |
| Customer Reviews | 5.0 (2) |
