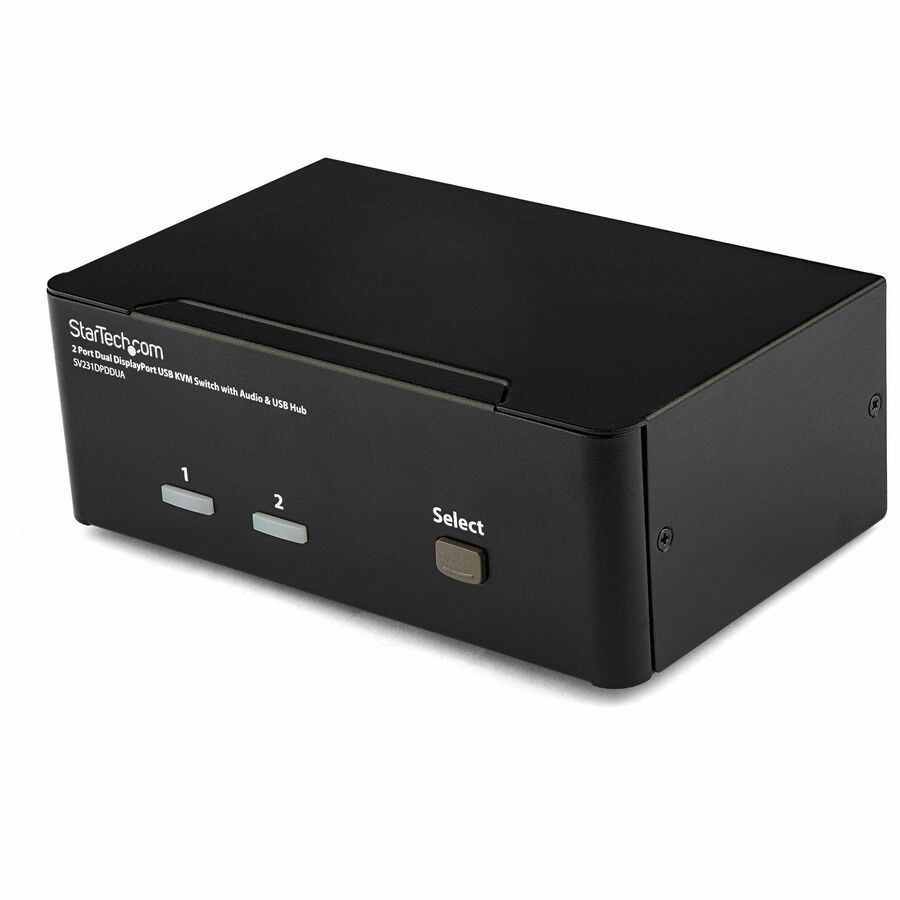

The SV231DPDDUA 2-Port USB Dual DisplayPort KVM Switch with Audio and USB 2.0 Hub combines next generation digital display standards with seamless KVM control, allowing you to switch between 2 dual head or twin DisplayPort systems. Also ideal for systems with a single DisplayPort output, and a second video source such as DVI or HDMI, using a low cost accessory adapter. Delivering multi-computer control for high-res multimedia applications, the dual view KVM supports resolutions of 2560x1600 (@60 Hz) with DisplayPort HD audio, as well as 2-channel analog stereo audio and microphone input. Suitable for high quality static imaging, such as medical applications (MRI, X-ray, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates. More from the Manufacturer
- Full plug-and-play support with USB console interfaces
- OS Independent
- Hotkey and push-button switching
- No driver or software installation required
- Integrated 2 port hub for USB 2.0 peripheral sharing
- 3.5mm 2-channel stereo audio and microphone
- 7.1 Channel High Definition Digital Audio supported via the DisplayPort interface
- Maximum resolutions of 3840x2400 at lower refresh rates
- Supports 2560x1600 @ 60Hz resolutions; beyond 1080p
- Native dual DisplayPort connections - no adapter required
| Brand | |
|---|---|
| Brand | StarTech.com |
| GPU / Graphics | |
|---|---|
| Graphic Mode | WQUXGA |
| Power & Battery | |
|---|---|
| Input Voltage Range | 110V AC to 240V AC |
| Input Voltage | 230 V AC |
| Power Consumption | 18 W |
| Networking & Connectivity | |
|---|---|
| Daisy Chain Supported | No |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 6 |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Number of DisplayPorts | 6 |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 3840 x 2400 |
| Software & Licensing | |
|---|---|
| Number of Local Users Support | 1 |
| Size / Dimensions | |
|---|---|
| Form Factor | Desktop |
| General Features | |
|---|---|
| Manufacturer | StarTech.com |
| Number of Computers Supported | 2 |
| Compliance & Certification | |
|---|---|
| REACH free of SVHC | Yes |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
