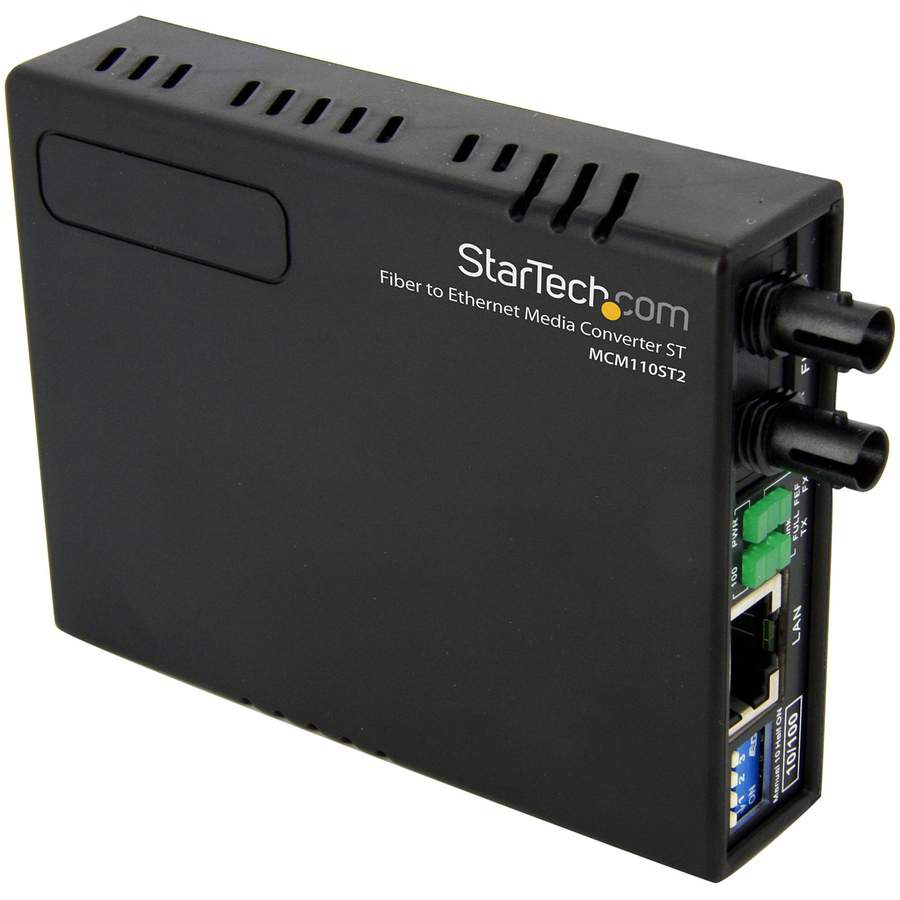

The MCM110ST2 10/100 Multi Mode ST Fiber Ethernet Media Converter (2 km) creates a cost-effective Ethernet to fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over a multimode fiber backbone. The ST media converter supports a maximum multimode fiber optic cable distance of 2km (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using ST-terminated multimode fiber, while delivering solid network performance and scalability. Easy to setup and install, this compact, value-conscious fast Ethernet media converter features auto-switching MDI and MDI-X support on the RJ45 UTP connections as well as manual controls for UTP mode, speed, Full and Half Duplex, as well as LFP (Link Fault pass-through) on/off. Backed by a StarTech.com 2-year warranty and free lifetime technical support. More from the Manufacturer
- THE IT PRO'S CHOICE: Designed for reliability in edge and on-prem deployments, our media converters are lab-tested and field-proven for seamless integration and maximum uptime; Backed by free lifetime 24/5 multi-lingual technical assistance
- DEPLOY EFFICIENTLY IN COMPACT, POWER-SENSITIVE SPACES: Operates at just 2.4W with 12V DC input via included power adapter or an optional chassis power supply, supporting 32°F to 122°F (0°C to 50°C) environments; Does not support PoE
- CONFIGURABLE DIP SWITCHES: Plug-and-play media converter auto-negotiates across networks or uses DIP switches to force speed, duplex, and link-fault passthrough settings, reducing mismatches, isolating faults, and accelerating deployments
- DEPLOY ANYWHERE WITH MINIMAL SETUP: Compact media converter installs in tight spaces, enabling fast integration into data centers or server rooms; TAA compliant for procurement standards; Does not work with MCM7-MEDIA-CHASSIS or MCM15-MEDIA-CHASSIS
- ENABLE LONG-RANGE NETWORK CONNECTIVITY: Conver
| Brand | |
|---|---|
| Brand | StarTech.com |
| Power & Battery | |
|---|---|
| Plug/Connector Type | Type M |
| Power Source | AC Adapter |
| Power Consumption | 2.40 W |
| Networking & Connectivity | |
|---|---|
| Network Technology | 100Base-FX |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Network (RJ-45) | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | External |
| General Features | |
|---|---|
| Maximum Distance Supported | 2 km |
| Manufacturer | StarTech.com |
| Misc Ports | |
|---|---|
| Total Number of Ports | 2 |
| ST Port Type | Duplex |
| Number of ST Ports | 1 |
| Printer/Scanner/Fax Specs | |
|---|---|
| Media Type Supported | Twisted Pair |
| Cables | |
|---|---|
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 1310 nm |
| Compliance & Certification | |
|---|---|
| REACH free of SVHC | Yes |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Brand | StarTech.com |
| UPC/GTIN | 065030835633 |
| MPN | MCM110ST2 |
| Unit Count | 1 Units |
| Warranty | 2 Year |
| Return Policy | This product is eligible for 30-day returns. See our return policy for details. |
