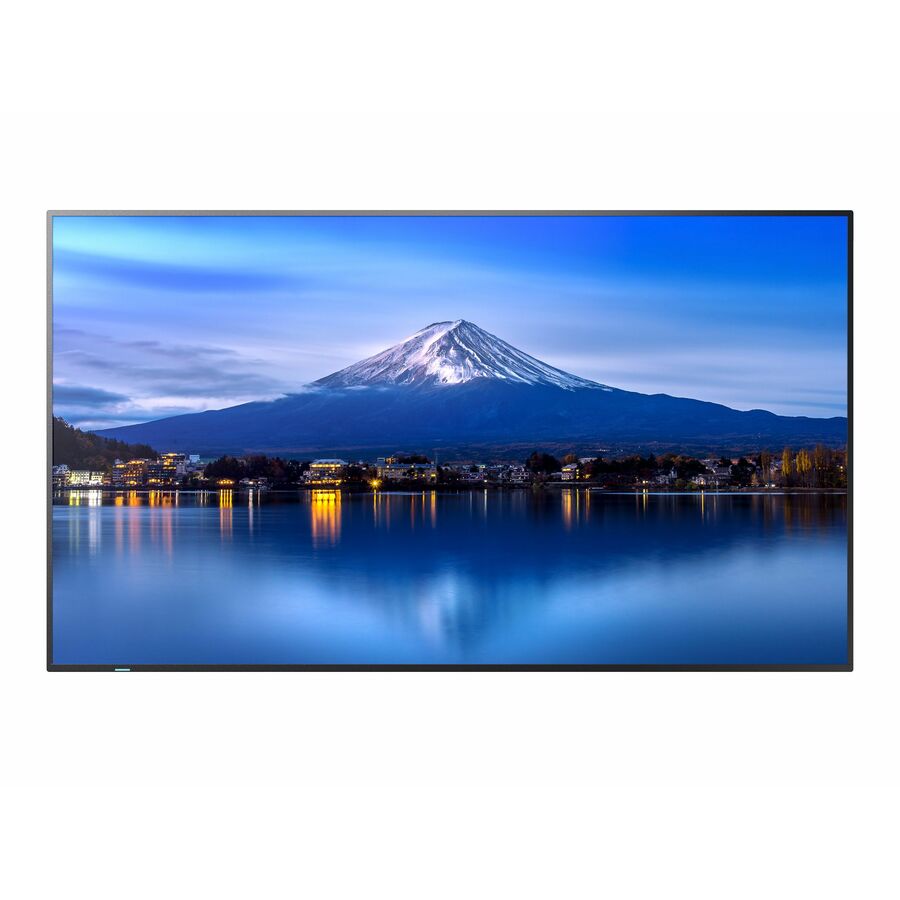

Precision performance for critical applications
When reliability, security, and exceptional visual performance are mandatory, the Sharp MultiSync® P6 Series delivers with precision and resilience. Despite its slim profile, the P6 Series is endorsed for use in heavy traffic spaces with a durable all-metal chassis that complies to the strictest fire safety standards. Building on NEC's trusted heritage, the next generation Sharp P6 Series is designed for longevity and integration flexibility. Its modular architecture supports custom computing options by Intel® SDM or Raspberry Pi, and flexible connectivity including AVoverIP for versatile deployments. Native video daisy chaining via HDMI and DisplayPort enables content to be easily cloned or expanded across multiple displays. Compatibility with leading platforms such as Crestron, Cisco Webex, and Q-Sys enhances its future-proof appeal, while 802.1x LAN support safeguards robust security against cyber threats.
Benefits
- Enhanced imaging precision - when brand consistency and corporate identity are important, NEC's SpectraView Engine provides full control over colour, gamma, and uniformity for accurate and impactful content.
- Unhindered readability - a high-haze panel reduces glare from windows and ambient light, keeping signage content and presentations clear for uninterrupted viewing in any environment
- Security assured - 802.2x support over LAN enables high-level security for corporate networks, giving peace of mind for IT teams and enterprise environments.
- Mission-critical performance - with 700 cd/m² brightness, long-life components and robust flame-resistant metal chassis, the P6 series is engineered to deliver lasting clarity and durability in challenging environments without the need for bulky housings.
- Trusted integration - full compatibility with major AV ecosystems, including Crestron XiO Cloud and NVX, Q-Sys, Cisco Webex, Matrox IPMX, and CMS solutions, ensures seamless setup and scalability.
- Digital Signage Display - Ideal for rack, passageway, booth or display counter
- Experience luminescent visual images with LCD display
- Features a 4k Ultra HD 3840 x 2160 resolution
- 2160p 4K UHD - Regardless of wherever or whenever the content is watched and no matter how detailed it is, this signage system is made to impress its viewers
- Direct LED backlighting technology enabled for a bright and sharp display
| Brand | |
|---|---|
| Brand | Sharp Electronics |
| GPU / Graphics | |
|---|---|
| Number of Screens | 1 |
| Screen / Display | |
|---|---|
| Native Contrast Ratio | 000:1 , 8 |
| Screen Size Class | 42.50" |
| Viewable Screen Size | 43" |
| Backlight Technology | Direct LED |
| Horizontal Frequency | 15kHz to 135kHz |
| Vertical Frequency | 23Hz to 76Hz |
| Display Resolution | 3840 x 2160 |
| Display Screen Type | LCD |
| Aspect Ratio | 16:9 |
| Panel Technology | In-plane Switching (IPS) Technology |
| Brightness | 700 Nit |
| Response Time | 8 ms |
| Color Gamut | 86% DCI |
| Pixel Pitch | 9.6 mil |
| Color Depth | 10-bit |
| Power & Battery | |
|---|---|
| Input Voltage | 230 V AC |
| Networking & Connectivity | |
|---|---|
| Ethernet | Yes |
| USB Ports | |
|---|---|
| USB | Yes |
| USB Type-C | Yes |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Number of HDMI Outputs | 1 |
| Number of HDMI Inputs | 2 |
| Number of HDMI 2.0 Ports | 2 |
| DisplayPort | |
|---|---|
| DisplayPort In | Yes |
| DisplayPort | Yes |
| DisplayPort Output | Yes |
| Number of DisplayPorts | 2 |
| Number of DisplayPort Outputs | 1 |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 2 |
| Audio Ports | |
|---|---|
| Number of Audio Line Out | 1 |
| Digital Audio Optical Output | Yes |
| Size / Dimensions | |
|---|---|
| VESA Mount Standard | 300 x 300 |
| Mount Type | Table Mount |
| Orientation | Face-up/Landscape/Portrait/Face-down |
| Bezel Width (Top) | 0.39" |
| Bezel Width (Bottom) | 0.55" |
| Bezel Width (Left) | 0.39" |
| Bezel Width (Right) | 0.39" |
| Appearance | |
|---|---|
| Housing Material | Metal |
| Bezel Color | Black |
| General Features | |
|---|---|
| Operation Hours | 24 Hours/7 Days |
| Manufacturer | Sharp Electronics |
| Misc Ports | |
|---|---|
| Serial | Yes |
| RS-232C Input | Yes |
| Printer/Scanner/Fax Specs | |
|---|---|
| Scan Format | 2160p |
| Compliance & Certification | |
|---|---|
| Energy Efficiency Certificati | ENERGY STAR 8.0 |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Storage Temperature | 140°F (60°C) |
| Minimum Storage Temperature | -4°F (-20°C) |
| Maximum Operating Humidity | 80% |
| Minimum Operating Humidity | 20% |
| Minimum Storage Humidity | 10% |
| Maximum Storage Humidity | 80% |
| Energy Star | Yes |
| Ingress Protection (IP) Rating | IP2X |
| Miscellaneous | |
|---|---|
| Product Name | LCD 43" Professional Large Format Display |
