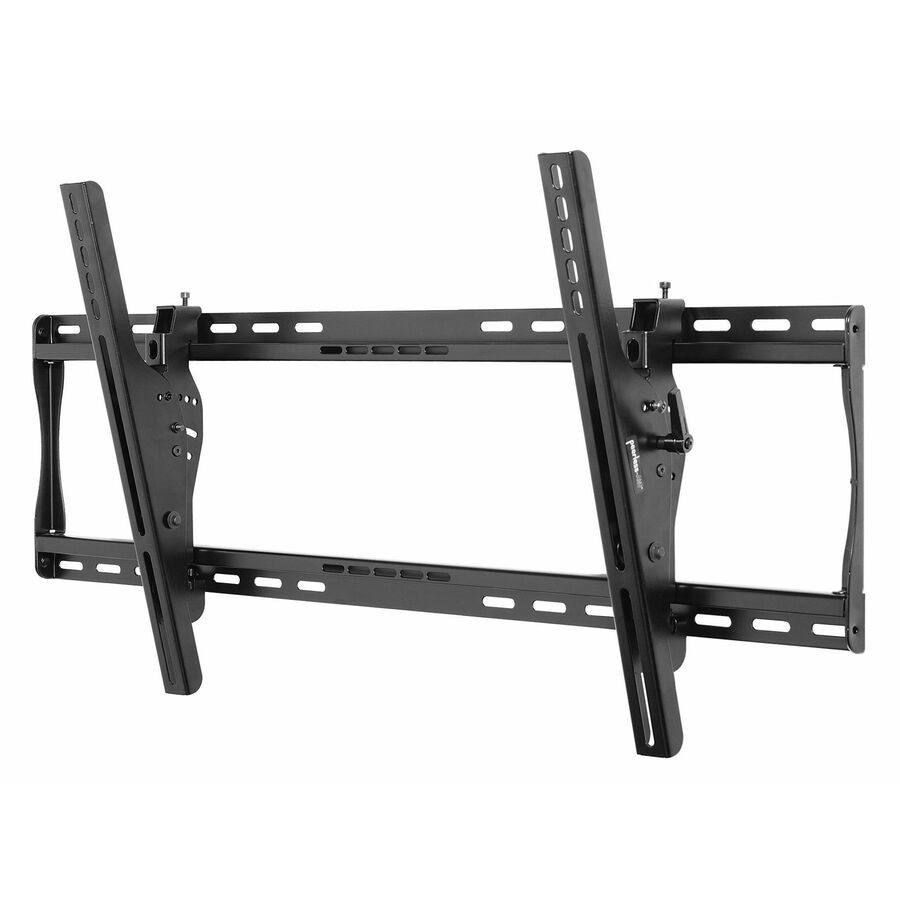

The SmartMount®Universal Tilt Wall Mount series offers the most versatile installation features and mounting options. Horizontal and vertical adjustment abilities allow for post installation leveling and side-to-side positioning, making it easier than ever to find the perfect TV position. Lock the tilt angle at installation to prevent tampering or moving with the IncreLok™ tilt technology. Security screws provided in the ST660 models deter tampering and theft. The open wall plate design offers total wall access, increasing the electrical and cable management options. The display can now simply be installed by a single person with the Hook-and-Hang™ system. The Easy-Glide™ adaptors hook onto the wall plate for an overall quick, simple, and secure installation.
- For mounts requiring standard hardware, installed with a Philips screw driver, please purchase ST660P
- Integrated security options available
- For mounts requiring theft resistant hardware, installed with security tool (included), please purchase ST660
- Design is UL listed and tested to four times stated load capacity
- Includes all necessary wall and display attachment hardware
- Horizontal display adjustment up to 8.00"(203mm) for centering display on wall
- Up to 0.25" (6mm) of vertical adjustment on each universal display adaptor bracket for post-installation leveling and height adjustment fine-tuning
- Easy-GripTMratcheting handle locks tilt angle into place
- Adjustable 15° degrees forward tilt and 5° degrees backward tilt for finding the optimal viewing angle
- Universal mount fits displays with mounting patterns up to 824 x 405mm (32.44" W x 15.95" H) and accommodates up to 800 x 400mm VESA patterns
| Brand | |
|---|---|
| Brand | Peerless Industries |
| Screen / Display | |
|---|---|
| Maximum Screen Size Supported | 80" |
| Minimum Screen Size Supported | 39" |
| Power & Battery | |
|---|---|
| Maximum Load Capacity | 200 lb |
| Size / Dimensions | |
|---|---|
| Form Factor | Wall Mountable |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 800 x 400 |
| Mount Surface | Wall |
| Maximum Adjustable Depth | 5.40" |
| Minimum Adjustable Depth | 2.62" |
| Minimum Tilt Angle | -5° |
| Maximum Tilt Angle | 15° |
| Appearance | |
|---|---|
| Height Adjustable | Yes |
| Mount Function | Wall Mount |
| Finishing | Fused Epoxy |
| General Features | |
|---|---|
| Mount Pattern | Universal |
| Mount Pattern Compatibility T | Universal |
| Durability | Theft Resistant |
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Product Class | Tilt |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| UL Listed | Yes |
| Miscellaneous | |
|---|---|
| Assembly Required | Yes |
