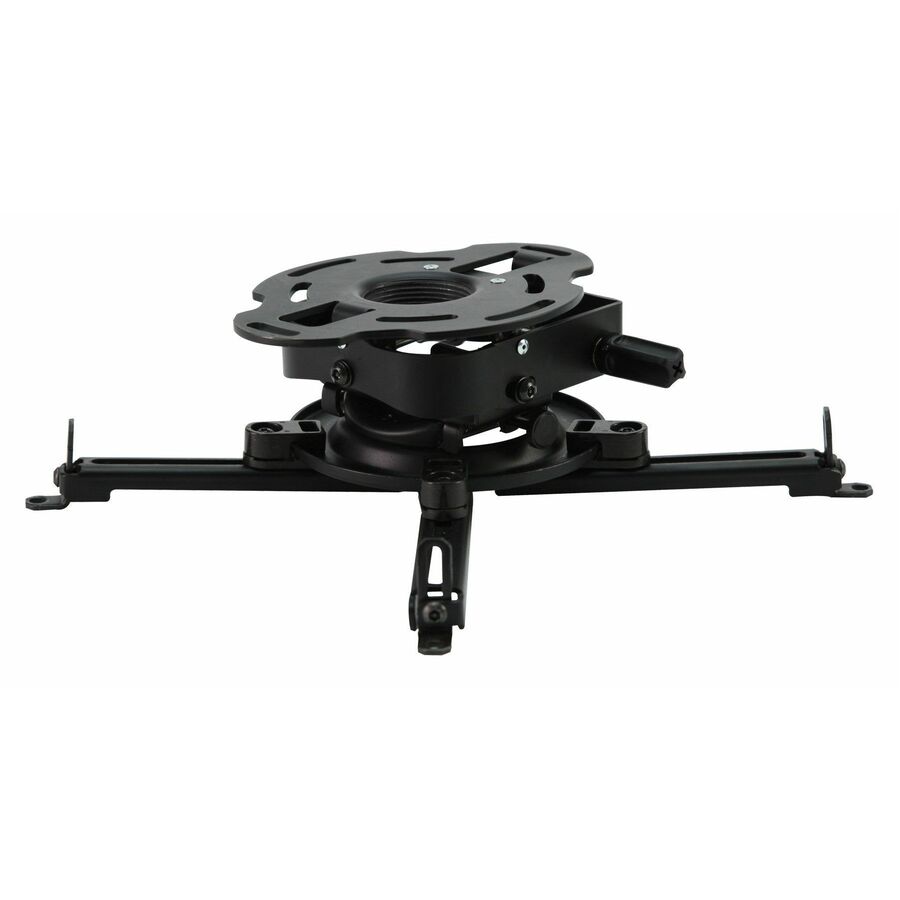

The PRGS Projector Mount simplifies the way image alignment is done. The precision gear design allows exact pitch and roll image positioning by either simply turning two adjustment knobs with a Phillips screw driver, or using the tool-less option by extending the knobs to adjust by hand. Just set the precision gear to the desired position to secure it in place. It will hold its position even during projector maintenance. With Peerless-AV® PRGS Projector Mount, just set it and forget it. No more adjustment screws. No more micro adjustments. No more hassles.
- Spider® Universal Adaptor Plate extends up to 17.63" (448 mm) to fit most projector models
- Specifications: Pitch: +15°/-20° Roll: ±5° Swivel: 360° (during installation)
- Quick release mechanism to easily service projector
- Open frame assembly provides easy cable routing through the projector mount itself
- Low profile design allows projector to be flush with the ceiling
- Quick-release thumbscrew enables easy-glide removal of the projector in and out of the mount
- Pre-installed security screws provide tilt and roll locking ability to prevent tampering and adjustments
- Achieve pin-point image alignment by simply turning the adjustment knobs by hand or with a Phillips screwdriver
- Two adjustment knobs to control tilt and roll image alignment and accurately hold image position, virtually eliminating any sag or drift
| Brand | |
|---|---|
| Brand | Peerless Industries |
| Power & Battery | |
|---|---|
| Maximum Load Capacity | 50 lb |
| Size / Dimensions | |
|---|---|
| Maximum Adjustable Width | 4.63" |
| Mount Profile | Low Profile |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 448 x 448 |
| Mount Surface | Ceiling |
| Maximum Adjustable Depth | 17.63" |
| Minimum Adjustable Depth | 8.50" |
| Maximum Adjustable Height | 17.63" |
| Minimum Tilt Angle | -5° |
| Maximum Tilt Angle | 5° |
| Maximum Swivel Angle | 360° |
| Appearance | |
|---|---|
| Height Adjustable | Yes |
| Mount Function | Cable Management |
| Finishing | Powder Coated |
| General Features | |
|---|---|
| Mount Pattern | Universal |
| Durability | Tamper Resistant |
| Indoor/Outdoor | Indoor |
| Manufacturer | Peerless Industries, Inc |
| Manufacturer Product Class | Projector Mount Universal |
| Compliance & Certification | |
|---|---|
| TAA Compliant | Yes |
| UL Listed | Yes |
| Miscellaneous | |
|---|---|
| Product Name | PRGS Projector Mount for Projectors up to 50lb (22kg) |
| Assembly Required | Yes |
