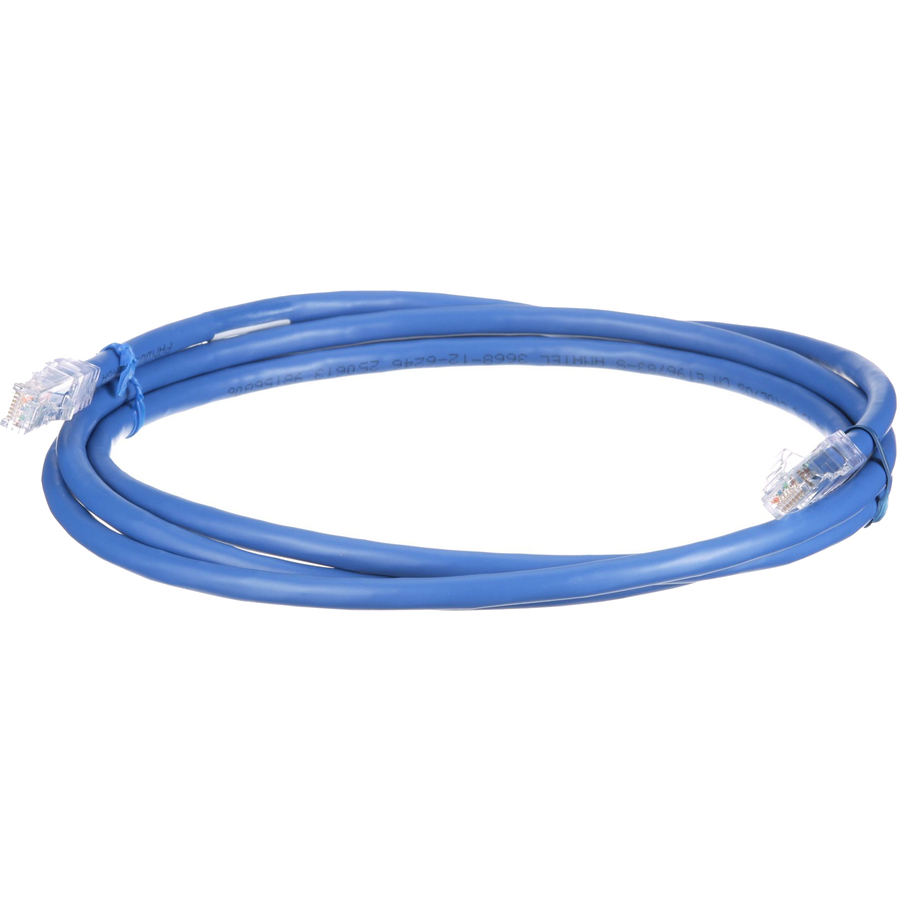

The TX6A™ 10Gig UTP Patch Cord is constructed of 24 AWG, unshielded, twisted pair, solid, CM cable with enhanced performance modular plugs. The patch cord offers a small 0.250 inch (6.4mm) cable diameter. The patented tangle free latch prevents snags and provides easy release saving time on frequent moves, adds, and changes. The patch cord's slender strain relief boot provides easy access in high-density applications. The patch cord is 10 feet and blue.
- 100% performance tested : Confidence that each patch cord delivers specified performance
- Superior headroom warranty : Provides the highest margins above the industry standard for both electrical and alien crosstalk performance
- Flexible cable design : Improved cable management in high density applications enabling easier installations
- Center de-embedded plug : Performs in center of ANSI/TIA-568.2-D component range ensuring interoperability and superior performance
- Integral pair manager : Optimizes performance, consistency, and reliability by reducing untwist at plug
- Patented tangle-free latch : Prevents snags and provides easy release, saving time and providing reliability on frequent moves, adds, and changes
- Slender strain relief boot : Provides easy access in high-density applications
- Robust construction : Rated to 2500 mating cycles
- Identification : Provides identification of performance level, length, and quality control number for future traceability
- Variety of cable colors and lengths : Meets individual
| Brand | |
|---|---|
| Brand | PANDUIT CORP |
| Appearance | |
|---|---|
| Boot Color | Clear |
| General Features | |
|---|---|
| Data Transfer Rate | 10 Gbit/s |
| Manufacturer | PANDUIT CORP |
| Cables | |
|---|---|
| Cable Length | 10 ft |
| Cable Type | Category 6a |
| Cable Characteristic | Patch Cable |
| Connector Type on First End | RJ-45 Network - Male |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Contact Plating | Gold |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Jacket Type | CM |
| Shielding | No |
| American Wire Gauge | 24 AWG |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
