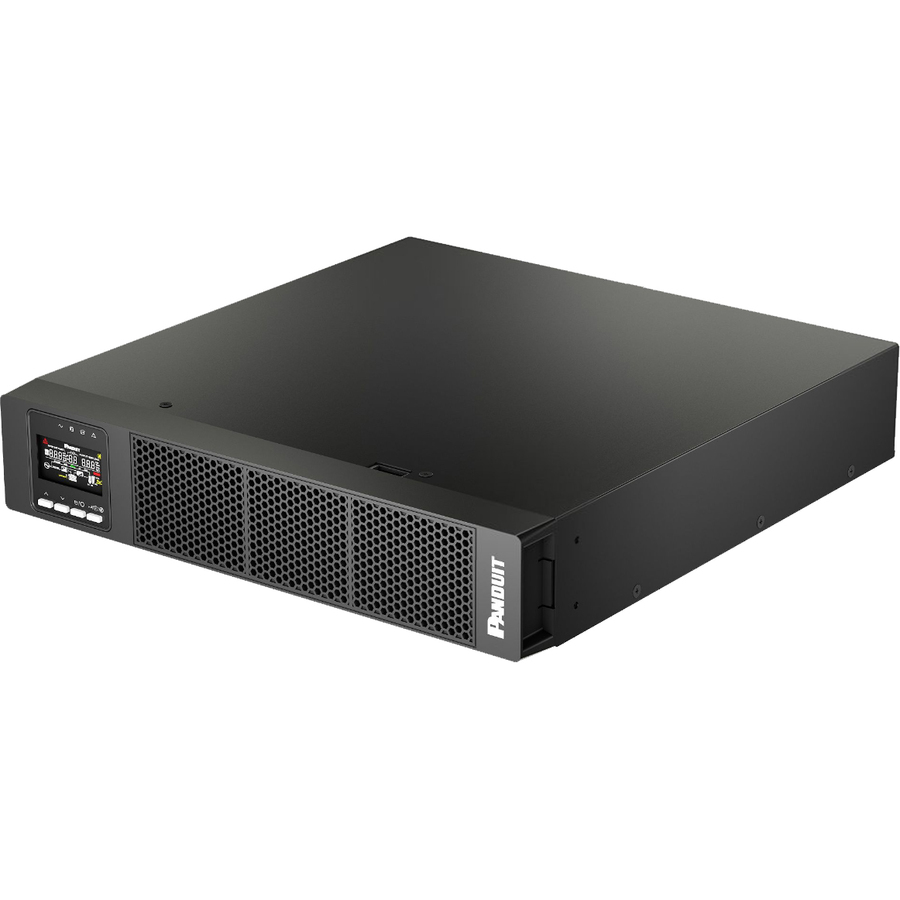

The Panduit®SmartZone™Intelligent Rack UPS with compact, high capacity, and long life Lithium Ion battery, 1-3kVA single phase 120 V Line-Interactive unit and 230 V unit with pure Online Double Conversion system that delivers highly efficient and reliable power protection and backup power for your computer IT equipment. With excellent electrical performance, enhanced intelligent monitoring and network functions and complying with EMC and safety standards to meet the continually growing power demands of Data Center, Enterprise and Edge IT equipment.
- Works adequately in situations where the supply is prone to sags and surges
- Keep your sensitive devices powered with a backup of up to 7.50 minute at full load
- Prevent critical data loss by staying powered during a blackout with up to 1350 W load capacity
- 1500 VA load capacity provides sufficient backup during power failures
- Overload protection feature effectively prevents motor damage by monitoring the current in the motor circuit and breaking the circuit when an electrical overload is detected
- 4 Hour typical battery recharge time to allow optimal performance for longer hours with added efficiency
- Replaceable battery for reliable output for prolonged usage with maximum efficiency
- Lithium-Ion (LiFePO4) battery chemistry for your convenience and better usability
- NEMA 5-15P plug/connector type for convenient usage with added dependability
- NEMA 5-15R receptacle type offers maximum safety, convenience, and increased usability
| Brand | |
|---|---|
| Brand | PANDUIT CORP |
| Power & Battery | |
|---|---|
| Replaceable Battery | Yes |
| Phase | Single Phase |
| Input Frequency | 60 Hz |
| Overload Protection | Yes |
| AVR | Yes |
| EPO Port | Yes |
| Receptacle Detail | 6 x NEMA 5-15R |
| Receptacle Type | NEMA 5-15R |
| Plug/Connector Type | NEMA 5-15P |
| Battery Chemistry | Lithium-Ion (LiFePO4) |
| Battery Characteristics | Hot-swappable |
| Typical Battery Recharge Time | 4 Hour |
| Input Voltage Range | 100 V AC - 125 V AC |
| Input Voltage | 120 V AC |
| Output Voltage | 125 V AC |
| Load Capacity (Watt) | 1350 W |
| Load Capacity (VA) | 1500 VA |
| Output Frequency | 60 Hz |
| DC System Voltage | 48 V DC |
| Backup/Run Time (Full Load) | 7.50 Minute |
| Backup/Run Time (Half Load) | 19 Minute |
| Transfer Time | 6 ms |
| Waveform Type | Pure Sine Wave |
| USB Ports | |
|---|---|
| USB (HID Compliant) Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Tower/Rack Convertible |
| Rack Height | 2U |
| Keyboard/Keypad Weight (Approximate) | 37.70 lb |
| Maximum Height Adjustment (Above) | 3.41" |
| Appearance | |
|---|---|
| Color | Black |
| General Features | |
|---|---|
| Manufacturer | PANDUIT CORP |
| Thermal Dissipation | 41.62 W |
| Misc Ports | |
|---|---|
| Number of Serial Ports (External) | Yes |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | -13°F (-25°C) - 131°F (55°C) |
| Maximum Operating Elevation | 9842.52 ft |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Sound Emission | 55 dB |
| Brand | PANDUIT CORP |
| UPC/GTIN | 613056825314 |
| MPN | U02N11L |
| Unit Count | 1 Units |
| Warranty | 5 Year |
| Return Policy | This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. |
