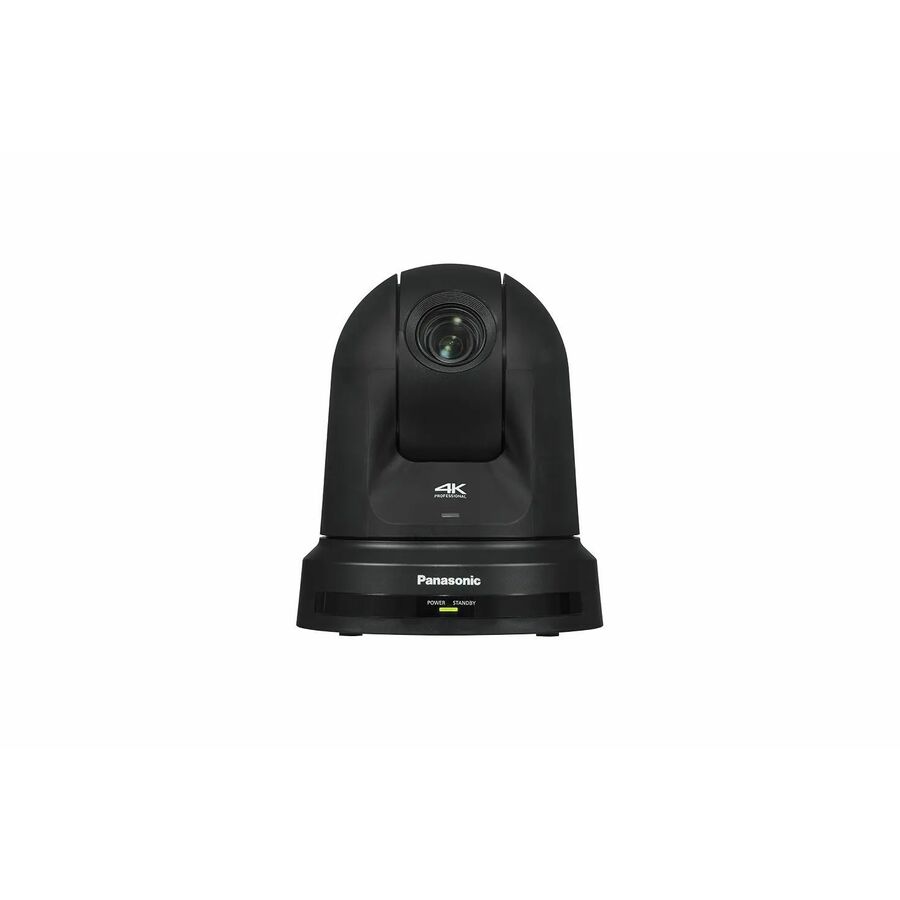

Panasonic Connect AW-UE40 Video Conferencing Camera - 60 fps - Black - USB

3,264.99 3,264.99
3,264.99

3,264.99 / Units
  • Brand
  • Depth
  • Weight (Approximate)
  • Height
  • Product Name
  • Marketing Information
  • Brand Name
  • Manufacturer Part Number
  • Width
  • Unified Communications Platfo
  • Noise Canceling
  • Digital Zoom
  • Features
  • Focus Modes
  • Connectivity Technology
  • HDMI Out
  • Network (RJ-45)
  • Host Interface
  • Product Color
  • Color Family
  • Mounting Type
  • Screen Mode
  • Maximum Operating Temperature
  • Minimum Operating Temperature
  • Maximum Video Resolution
  • Input Voltage
  • Input Current
  • Image Sensor Type
  • Video Formats
  • Maximum Aperture
  • Supported Video Modes
  • Operating System Supported
  • Package Contents
  • Manufacturer
  • Product Type
  • Product Model
  • Compatibility
  • Device Supported
  • Manufacturer Website Address
  • Maximum Frame Rate
  • Power Source Type
  • Field Of View (FOV) Angle
This product is eligible for 30-day returns. See our return policy for details. Terms and Conditions
Shipping: 1-6 Business Days

Remote cameras enhance visual communication in a variety of applications ranging from online classes to online seminars. The AW-UE50/UE40 supports a compact design to blend in with the surroundings and operates very quietly to permit flexible use in any video shooting locations or conditions. The AW-UE50/UE40 offers high security and it is easy to install and operate for capturing stable images, so even people unfamiliar with video shooting or camera operation can utilize it. The excellent flexibility of the product simplifies wiring and operation. Linkage with online conference software or online application is possible, so online video streaming is easy to initiate. The AW-UE50/UE40 is a standard model perfect for people who want to utilize online video streaming more frequently or enhance the quality of online video streaming.

Zoom Certified PTZ Camera

The AW-UE40 supports UVC so it can be used with an existing USB-based system. A single LAN cable can be used to connect multiple camera units to a PC, allowing wire-saving installation and configuration of a simple and compact system. By using the free software, PTZ Virtual USB Driver, the AW-UE401 can be used as a web camera linkable to an online conference service via LAN cable even when the USB cable cannot reach the camera installation location such as a ceiling.

With Zoom certification and a dedicated mode (USB: Video Conference), the AW-UE40 is ideal for web conferencing.

4K resolution, wide angle and high-magnification zoom

The high-quality images captured by the 4K, wide-angle camera clearly show the ambiences of classrooms and halls as well as the facial expressions of teachers and speakers on the podiums, thus conveying the ambiences and atmospheres through the streaming videos. Furthermore, the zoom function clearly captures the important points on a slide or blackboard for easy-to-understand classroom lessons or business presentations. By utilizing the wide angle of up to 74.1° and the zoom function, it is possible to prevent missing important scenes in classroom teaching or business meeting with a small number of camera units. The AW-UE50/UE40 can be used for a wide range of applications regardless of the size of the room or hall.

Built-in auto-tracking for one-person presentations on-the-fly

The AW-UE40 now features auto-tracking built into the camera. This means no additional hardware or software is needed to have one subject kept in frame. This technology uses body recognition to keep someone on camera. This is an easy and effortless way for corporations and higher education facilities to provide remote or hybrid meetings with little setup.

Auto Tracking Software for event customization and following the messenger

The AW-UE40 also supports Panasonic AW-SF100/AW-SF200 Auto Tracking Software, which uses facial recognition to follow a single presenter among other people on a single camera or multiple presenters to be in-frame using presets from multiple cameras. This is a great way to automatically capture lectures, presentations and hybrid events that change regularly. Since the software performs the camerawork to follow the speaker without the supervisor's detailed camera operation, realistic scenes can be recorded at all times.

  • 24x Optical Zoom
  • Supports NDI
  • HX version 2 and SRT*1 protocol
  • IT Certifications
  • New Direct Drive System for improved responsiveness and quietness
  • Excellent system flexibility to achieve smart wiring and smooth operation
  • Still image JPEG capability
Brand
Brand Panasonic
Screen / Display
Screen Mode 4K
Power & Battery
Input Voltage 12 V DC
Input Current 1.80 A
Power Source Type DC
Networking & Connectivity
Connectivity Technology Wired
HDMI Ports
HDMI Out Yes
Ethernet Port
Network (RJ-45) Yes
Camera / Webcam
Digital Zoom 2x
Focus Modes Auto/Manual
Maximum Video Resolution 3840 x 2160
Image Sensor Type MOS
Maximum Aperture f/1.8
Maximum Frame Rate 60 fps
Field Of View (FOV) Angle 82°
Audio
Noise Canceling Yes
Software & Licensing
Unified Communications Platfo Zoom
Size / Dimensions
Mounting Type Ceiling Mount
General Features
Video Formats H.265
Supported Video Modes 720p
Manufacturer Panasonic
Misc Ports
Host Interface USB
Compliance & Certification
Maximum Operating Temperature 104°F (40°C)
Minimum Operating Temperature 32°F (0°C)
