PTZ cameras play an increasingly important role in teleworking such as online meetings and online classes.The AW-UE20 offers high image quality, wide shooting angle and high-magnification zoom to provide more comfortable communication through high-quality video images and stable transmission.The AW-UE20 is compatible with a wide range of systems such as SDI, HDMI, USB and IP, thus allowing flexible camera setup and operation. The AW-UE20 is a high-quality entry model. The compact unit can be installed in a small place without getting in the way.
Key features
- 4K PTZ Camera
- Compact size & wide angle
- Simultaneous 3G-SDI, HDMI & USB output
- High-Quality Video Streaming for More Comfortable Online Communication
- Excellent system flexiblility to achieve smart wiring and smooth operation
- Network camera - Helps achieve high-quality video results
- Up to 3840 x 2160 resolution for surveillance in real-time
- Features MOS sensor that is used to produce smooth and sharp images
- 46.80 mm maximum focal length for dependable identification distances with better coverage
- f/1.6 maximum aperture for better light absorption and dependable, better-quality results
- 12x optical zoom ensures maximum surveillance productivity without compromising quality
- 4K recording format for a lively video quality experience with maximum dependability
- Varifocal lens type to ensure maximum surveillance productivity with added feasibility
- Enjoy HD quality videos on your HDTV with the HDMI port facility
- DC power source type for your network camera provides maximum energy feasibility and added surveillance productivity
| Brand | |
|---|---|
| Brand | Panasonic |
| Screen / Display | |
|---|---|
| Color Supported | Color |
| Power & Battery | |
|---|---|
| Input Voltage | 12 V DC |
| Power Source Type | PoE |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Camera / Webcam | |
|---|---|
| Optical Zoom | 12x |
| HD Recording | Yes |
| Lens Included | Yes |
| Maximum Video Resolution | 3840 x 2160 |
| Image Sensor Type | MOS |
| Minimum Focal Length | 3.90 mm |
| Maximum Focal Length | 46.80 mm |
| Minimum Aperture | f/2.8 |
| Maximum Aperture | f/1.6 |
| Lens Type | Varifocal |
| Recording Formats | 4K |
| Maximum Frame Rate | 60 fps |
| Field of View | Horizontal angle of view: 71° (wide) to 6° (tele)Vertical angle of view: 43° (wide) to 3° (tele)Diagonal angle of view: 79° (wide) to 7° (tele) |
| Size / Dimensions | |
|---|---|
| Mount Type | Wall Mount |
| Appearance | |
|---|---|
| Color | Not Specified |
| General Features | |
|---|---|
| Remote Management | Yes |
| Video Formats | Motion JPEG |
| Analog Video Signal Format | 3G-SDI |
| Manufacturer | Panasonic |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Humidity | 90% |
| Brand | Panasonic |
| UPC/GTIN | 885170399570 |
| MPN | AWUE20WP |
| Unit Count | 1 Units |
| Return Policy | This product is eligible for 30-day returns. See our return policy for details. |

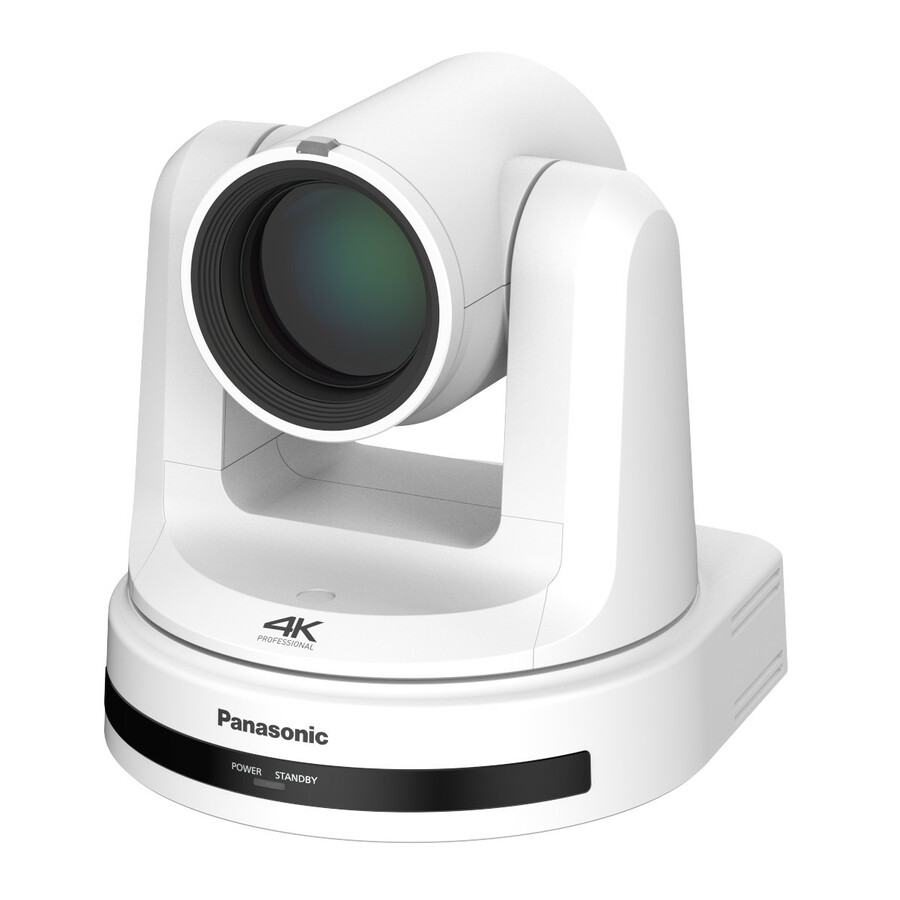

Panasonic AW-UE20 4K Network Camera - Color - White - H.264, H.265, Motion JPEG - 3840 x 2160 - 3.90 mm- 46.80 mm Varifocal Lens - 12x Optical - 60 fps - MOS - HDMI - Wall Mount
