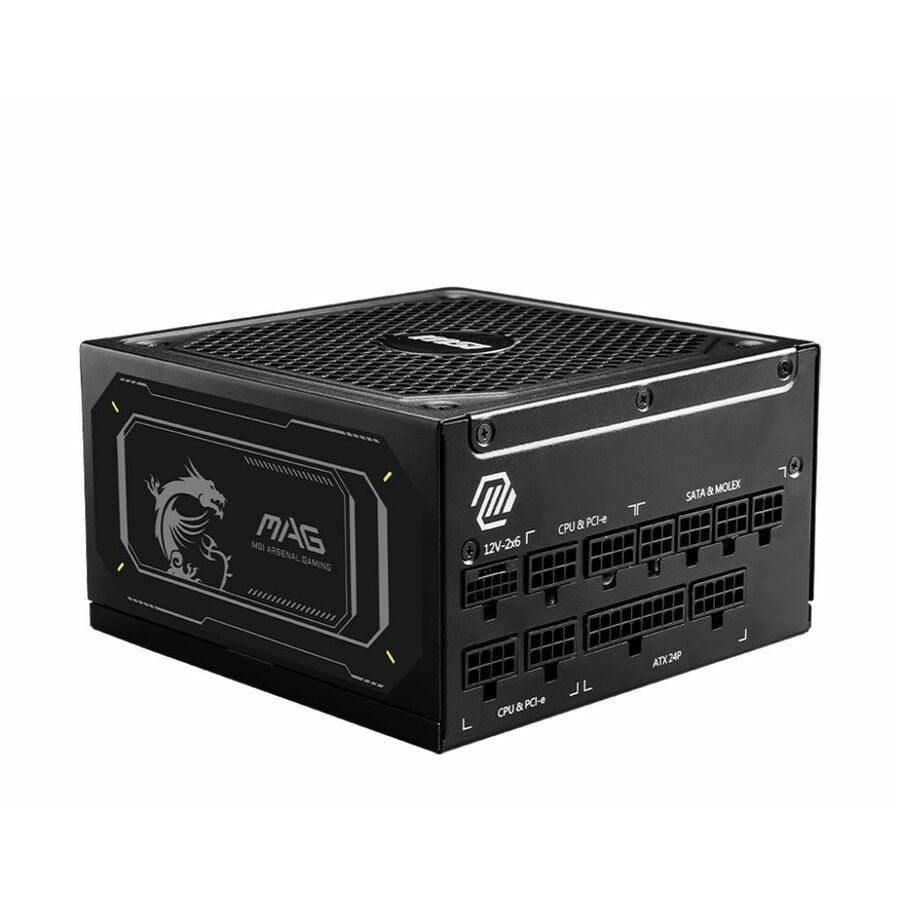

MAG UNITE AS ONE
The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
ATX 3.1 Ready
The gaming power supply can hold up to 2x total power excursion and 3x GPU power excursion, remaining stable when paired with high performing graphics cards.
ENERGY EFFICIENCY CERTIFICATION
The efficiency of your power supply directly influences your system's performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.
ONLY WHAT YOU NEED
The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system's overall build. Additionally, the included cable pack provides a storage solution for any unused cables.
ALL THE MORE ORGANIZED
Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.
FLUID DYNAMIC BEARING
The power supply's fan comes with a fluid dynamic bearing that perfectly balances cooling performance and noise level.
Half bridge LLC + SR + DC/DC
A half-bridge LLC with DC/DC converter combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.
- ATX 3.1 ready, native dual-color PCIe CEM 5.1 connector
- Supports NVIDIA® GeForce RTX™40 series graphics cards
- Fully modular design, flat cables
- 80 PLUS Gold certified for high efficiency
- Active PFC design
- Protection with OVP / OCP / OPP / OTP / SCP / UVP
- 135 mm fluid dynamic bearing fan
- LLC half bridge topology with DC-to-DC module design
| Brand | |
|---|---|
| Brand | MSI |
| GPU / Graphics | |
|---|---|
| NVIDIA SLI Supported | Yes |
| Power & Battery | |
|---|---|
| Number of (6+2 pin) PCI Expre | 4 |
| Number of (4+4 pin) CPU Power | 2 |
| Input Frequency | 60Hz |
| Number of SATA Power Connectors | 12 |
| Number of 4-pin Molex Power Connectors | 4 |
| Input Voltage | 230 V AC |
| Efficiency | 90% |
| Power Factor Correction (PFC) | Active |
| Output Power | 1000 W |
| Size / Dimensions | |
|---|---|
| Form Factor | Internal |
| Fan Diameter | 135 mm |
| Maximum Height Adjustment (Above) | 4.7" |
| Appearance | |
|---|---|
| Color | Not Specified |
| Modular | Yes |
| General Features | |
|---|---|
| Protection Type | Short Circuit |
| Mean Time Between Failures (MTBF) | 150000 Hour |
| Manufacturer | MSI |
| Fan Bearing Type | Fluid Dynamic Bearing |
| Number of Fans | 1 |
| Expansion Slots | |
|---|---|
| PCI Express Connector | Yes |
| Compliance & Certification | |
|---|---|
| Energy Efficiency Certification | 80 Plus Gold |
| Specification Compliance | ATX 3.1 |
| Brand | MSI |
| UPC/GTIN | 824142377116 |
| MPN | MAGA1000GLPCIE5II |
| Unit Count | 1 Units |
