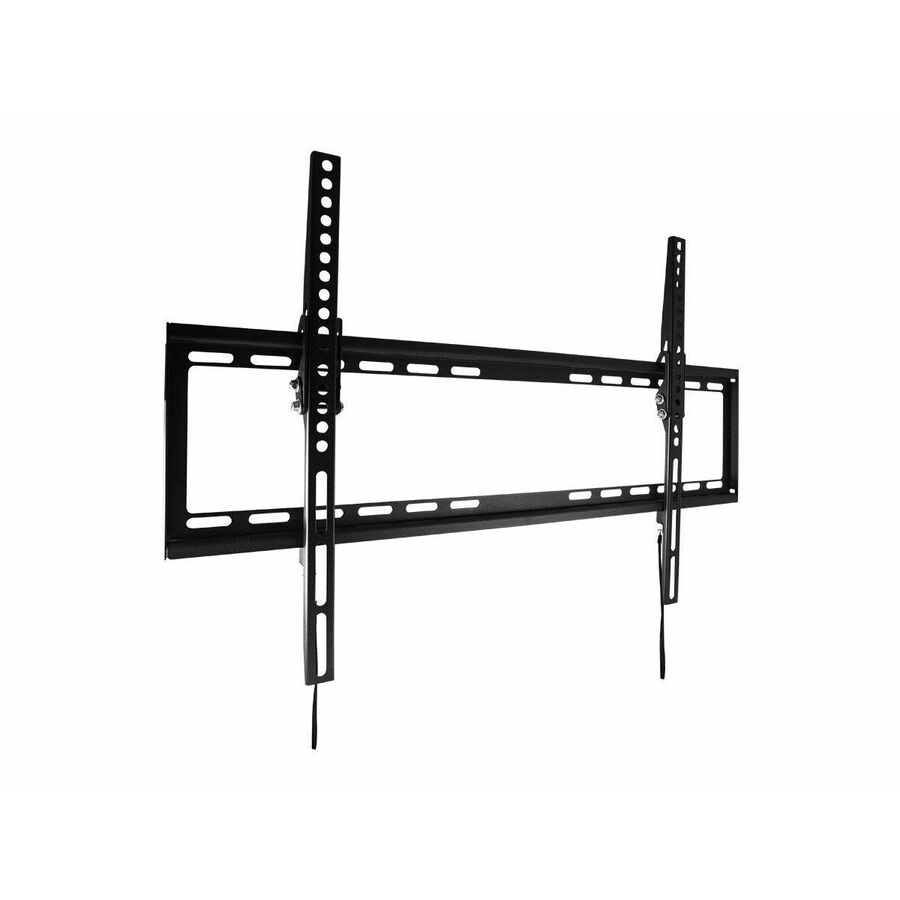

This EZ™ Series Low Profile Tilt TV Wall Mount Bracket is designed to easily mount on the wall. It is meant for displays measuring up to 70" and weighing up to 77 lbs. This slim mount features a simple tilting mechanism that deflects ambient glare away from the viewer's eyes. It has undergone extensive safety testing and has been certified by Underwriters Laboratories® (UL®), which ensures that it will perform safely and reliably. Backed by the Monoprice™ lifetime warranty, you can rest assured that EZ Series Wall mounts are the safest and easiest wall mount solutions.
- Fits VESA® patterns from 200x200 to 600x400
- Designed for 37" to 70" displays
- Supports up to 77 lbs.
- Tilt range of +0/-8 degrees
- Ultraslim design places the back of the TV only 0.81" from the wall
- Includes a carpenter's level, HDMI® cable, and mounting hardware
- Steel construction
- UL® certified
TILT TV WALL MOUNT
Best for TVs that need to be mounted above eye level, the tilt functionality in Monoprice™ tilt TV wall mounts allows you to adjust the screen angle to eliminate glare and to provide a better viewing angle.
SLIM DESIGN
The space-saving, slim design of the Monoprice™ EZ™ Series Low Profile Tilt TV Wall Mount places the back of your TV only 0.81" from the wall. This thinner, agile mount is ideal for displays with side or bottom facing connections.
"IS THIS MOUNT COMPATIBLE WITH MY TV?"
- Check your TV's manual for its VESA® mounting pattern, or vertical and horizontal distances between the mounting holes (in mm).
- This mount supports VESA patterns from 200x200 to 600x400 and supports TVs weighing up to 77 pounds.
- The screen size range is only a suggested approximation.
- Your TV is compatible as long as its VESA mounting pattern is between 200x200 to 600x400 and weighs no more than 77 pounds.
INCLUDED ACCESSORIES
To make your mounting experience as simple and complete as possible, the Monoprice™ EZ™ Series includes a number of practical accessories and tools to make the job easier, including a carpenter's level, a cut-out template, a Monoprice HDMI® cable, and Monoprice hook and loop cable ties.
- Allows the rod to flex and rotate, but stay firm in the position where it is attached to the frame
- Can withstand a maximum weight of 77 lb
- Supports the screen size of 70"
- Built with steel product material to offer usage dependabilty and durability, ensuring prolonged use
- Heavy Duty feature for better reliance and usability
- Concrete application/usage allows adaptability with easy installment
| Brand | |
|---|---|
| Brand | Monoprice |
| Screen / Display | |
|---|---|
| Maximum Screen Size Supported | 70" |
| Minimum Screen Size Supported | 37" |
| Power & Battery | |
|---|---|
| Maximum Load Capacity | 77 lb |
| Size / Dimensions | |
|---|---|
| Mount Profile | Slim/Low Profile |
| Form Factor | Wall Mountable |
| VESA Mount Compatible | Yes |
| Mounting Pattern | 200 x 200 |
| Mount Surface | Concrete |
| Minimum Tilt Angle | -8° |
| Maximum Tilt Angle | 0° |
| Appearance | |
|---|---|
| Mount Function | Tilt |
| General Features | |
|---|---|
| Rugged | Yes |
| Manufacturer | Monoprice, Inc |
| Compliance & Certification | |
|---|---|
| UL Listed | Yes |
| Brand | Monoprice, Inc |
| UPC/GTIN | 889028042038 |
| MPN | 16092 |
| Unit Count | 1 Units |
| Warranty | Lifetime |
| Return Policy | This product is eligible for 30-day returns. See our return policy for details. |
