Monoprice™

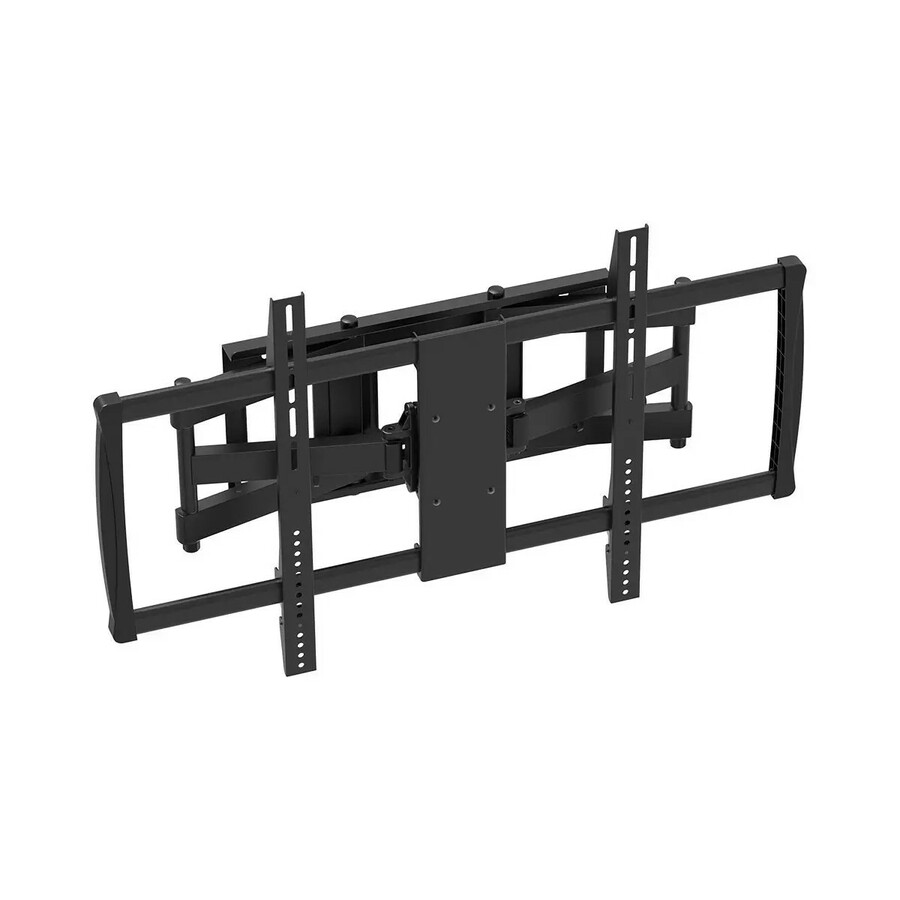

EZ™ Series Full-Motion Articulating TV Wall Mount Bracket
Mounts most TVs from 60" ~ 100" to brick, concrete, and wood stud walls
Designed for easy installation, the Monoprice™ EZ™ Series Full-Motion Articulating TV Wall Mount Bracket provides a solid option for mounting 60" ~ 100" TVs to concrete, brick, and wood stud walls. It supports TVs weighing up to 176 pounds, with VESA® mount patters from 200x200 to 900x600. The full-motion design allows you to adjust the swivel, tilt, and rotation to find the most comfortable viewing angle for almost any seat in the room.
- Fits VESA® patterns from 200x200 to 900x600
- Designed for 60" to 100" displays
- Supports up to 176 lbs.
- Swivels ±45 degrees
- Tilts +5/-15 degrees
- Rotates ±3 degrees
- Extends from 2.8" to 24.6"
- UL® certified
FULL-MOTION ARTICULATING WALL MOUNT
Monoprice™ Full-Motion Wall Mounts offer the ultimate in comfort and flexibility. The articulated swing arm allows you to move the TV towards or away from the wall, tilt up or down, and angle from side to side. The plate holding the TV also allows you to rotate the TV to ensure it is level.
"IS THIS MOUNT COMPATIBLE WITH MY TV?"
Check your TV's manual for its VESA® mounting pattern or measure the vertical and horizontal distances between the mounting holes in millimeters. This mount supports VESA patterns from 200x200 to 900x600 and supports TVs weighing up to 176 pounds. The screen size range is only a suggested approximation. Your TV is compatible as long as its VESA mounting pattern is between 200x200 to 900x600 and it weighs no more than 176 pounds.
HEAVY-DUTY STEEL CONSTRUCTION
This Monoprice™ Full-Motion Articulating Wall Mount Bracket is constructed from high quality, cold-rolled steel, which gives it the strength to support TVs weighing up to 176 pounds. It can be easily mounted to brick, concrete, or wood stud walls.
INCLUDED ACCESSORIES
To make your mounting experience as simple and complete as possible, the Monoprice™ EZ™ Series includes a number of practical accessories and tools to make the job easier, including a carpenters' level, a cut-out template, a Monoprice HDMI® cable, and Monoprice cable ties.
- Makes it quick, convenient, and simple to adjust and reposition connectors in a secure mounting system
- Can withstand a maximum weight of 176 lb
- Supports 100" displays
- Built with cold rolled steel product material to offer high strength and durability
- Articulating feature for maximum productivity with added dependability
- Wall application/usage for better dependability with added efficiency
| Brand | |
|---|---|
| Brand | Monoprice |
| GPU / Graphics | |
|---|---|
| Number of Displays Supported | 1 |
| Screen / Display | |
|---|---|
| Maximum Screen Size Supported | 100" |
| Minimum Screen Size Supported | 60" |
| Power & Battery | |
|---|---|
| Maximum Load Capacity | 176 lb |
| Size / Dimensions | |
|---|---|
| VESA Mount Compatible | Yes |
| Mounting Pattern | 200 x 200 |
| Minimum Extended Height | 2.80" |
| Appearance | |
|---|---|
| Height Adjustable | Yes |
| Height Adjustable | Yes |
| General Features | |
|---|---|
| Manufacturer | Monoprice, Inc |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
