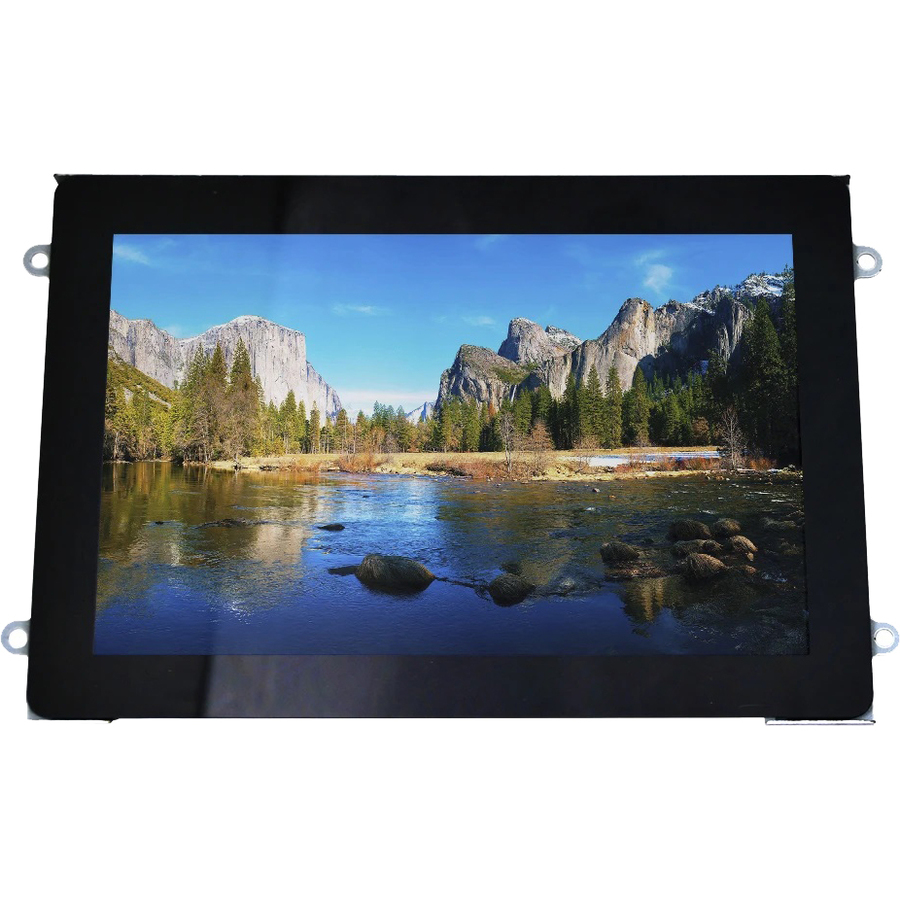

Multi Point Capacitive Touch Open Frame 10.1" IPS USB Monitor
The UM-1080C-OF/UM-1080CH-OF is our widest viewing angle open frame 10.1" monitor. The UM-1080C-OF/UM-1080CH-OF is a 10.1" open frame capacitive touch monitor for applications that will be integrated into other equipment or enclosures. Same slick design features but in a long-lasting molded metal product cycle-enclosure. Future generation panels can be phased-in without external changes. The UM-1080C-OF/UM-1080CH-OF open frame capacitive touch display is designed to provide the most cost effective solutions for consumer, retail POS, and hospitality markets.
Available in Single Cable USB Video
Utilizing the same single cable USB display technology as our line of displays, the UM-1080C-OF is our widest viewing angle 10.1" monitor. The screen can display in either landscape or portrait orientations and has nearly 180 degree viewing angles, all while sending video, touch, and power over a single USB connection.
- Utilizes HDMI input for video and USB or 5v DC for power.
- HDCP Compliant
- Rear 4 point mounting for secure installation
- Capacitive touch (UM-1080CH-OF)
- Non-Touch (UM-1080-OF)
- Surface treatment: Hard coating (3H), anti-glare
- Display colors: 262,144
- Pixel arrangement: RGB vertical stripe
| Brand | |
|---|---|
| Brand | Mimo Monitors |
| Screen / Display | |
|---|---|
| Screen Size Class | 10" |
| Viewable Screen Size | 10.1" |
| Multi-touch Screen | Yes |
| Touchscreen Type | Capacitive |
| Maximum Resolution | 1280 x 800 |
| Screen Mode | WXGA |
| Aspect Ratio | 16:10 |
| Brightness | 350 Nit |
| Response Time | 14 ms |
| Horizontal Viewing Angle | 170° |
| Vertical Viewing Angle | 170° |
| Native Contrast Ratio | 800:1 |
| Contrast Ratio | 800:1 |
| Native Resolution | 1280 x 800 |
| USB Ports | |
|---|---|
| USB | Yes |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Audio | |
|---|---|
| Speakers | Yes |
| Size / Dimensions | |
|---|---|
| VESA Mount Standard | 75 x 75 |
| General Features | |
|---|---|
| Manufacturer | Mimo Monitors, Inc |
| Misc Ports | |
|---|---|
| Interface | HDMI |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Brand | Mimo Monitors, Inc |
| UPC/GTIN | 818283675224 |
| MPN | UM-1080CH-OF |
| Unit Count | 1 Units |
| Warranty | 1 Year |
| Return Policy | This product is eligible for 30-day returns subject to a restocking fee. See our return policy for details. |
