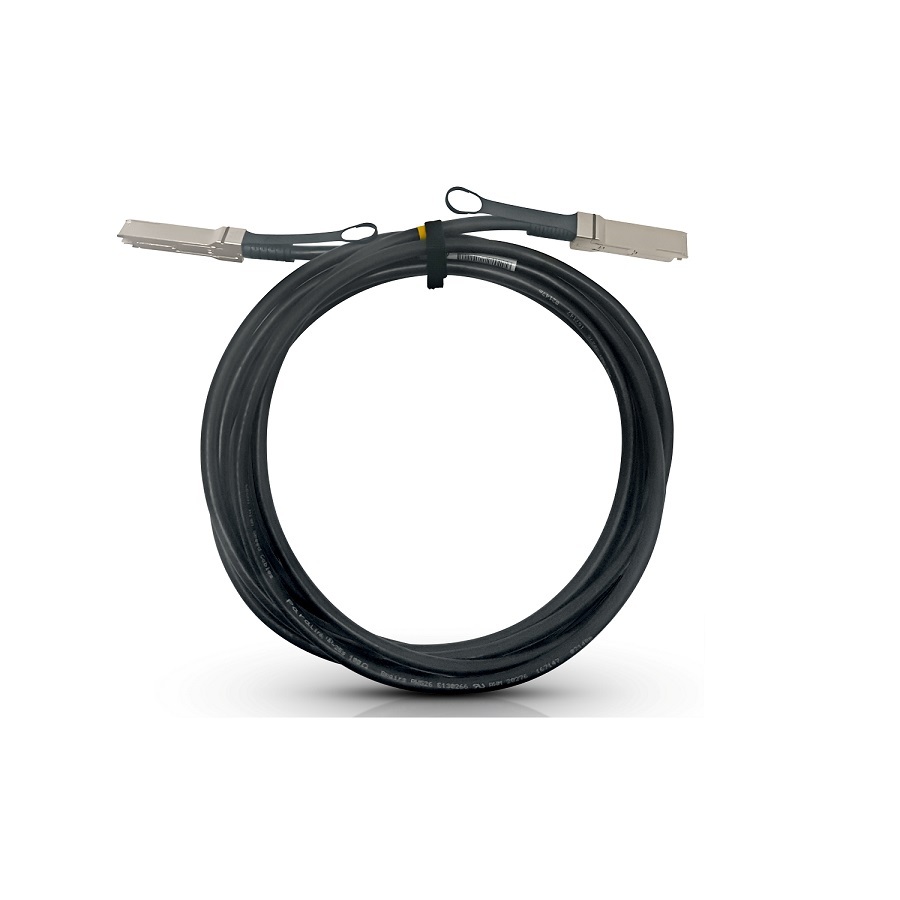

NVIDIA MCP1650-H01AE30 Direct Attach Copper Cable InfiniBand HDR up to 200Gb/s QSFP56 LSZH 1.5m Black Pulltab 30AWG
HDR 200Gb/s QSFP56 Direct Attach Copper Cable
NVIDIA DAC cables are high speed, cost-effective alternatives to fiber optics in 200Gb/s InfiniBand HDR applications.
NVIDIA Networking QSFP56 passive copper cable contains eight high-speed copper pairs, each operating at data rates of up to 50Gb/s. Each QSFP56 port comprises an EEPROM providing product information, which can be read by the host system.
NVIDIA's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. It enables higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability.
Highlights
- IBTA InfiniBand HDR compliant
- Up to 200Gb/s data rate
- 4x 50Gb/s PAM4 modulation
- SFF-8665 compliant
- Operating case temperature 0-70C
- Single 3.3V supply voltage
- Bit Error Rate (BER) better than 1E-15 with InfiniBand HDR systems
- Hot pluggable
- RoHS compliant
- LSZH (Low Smoke Zero Halogen) jacket
- LF (Lead Free) HF (Halogen Free) PCB
- SFF-8636 compliant I2C management interface
- Network cable provides secure access to networked data, ensuring swift and dependable connectivity for consistent system performance
- Features QSFP56 connector configuration for high-throughput interconnects in modern data centers, ensuring efficient and low-latency data transfer across systems
- HDR Support feature designed for convenience and ease of use, ensuring smooth operation and improved functionality across supported devices
- Features SFF-8665 QSFP56 Network connector to make connecting a network device easy, ensuring hassle-free setup and steady performance
| Brand | |
|---|---|
| Brand | NVIDIA Corporation |
| Appearance | |
|---|---|
| Color | Black |
| General Features | |
|---|---|
| Data Transfer Rate | 200 Gbit/s |
| Manufacturer | NVIDIA Corporation |
| Cables | |
|---|---|
| Cable Length | 4.92 ft |
| Cable Type | QSFP56 |
| Connector Type on First End | SFF-8665 QSFP56 Network |
| Connector on First End Details | 1 x SFF-8665 QSFP56 Network |
| Connector Type on Second End | SFF-8665 QSFP56 Network |
| Jacket Type | LSZH |
| American Wire Gauge | 30 AWG |
| Number of Pairs | 8 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Brand | NVIDIA Corporation |
| GTIN | 7290108482263 |
| MPN | MCP1650-H01AE30 |
| Unit Count | 1 Units |
| Warranty | 1 Year |
| Return Policy | This product is eligible for 30-day returns. See our return policy for details. |
