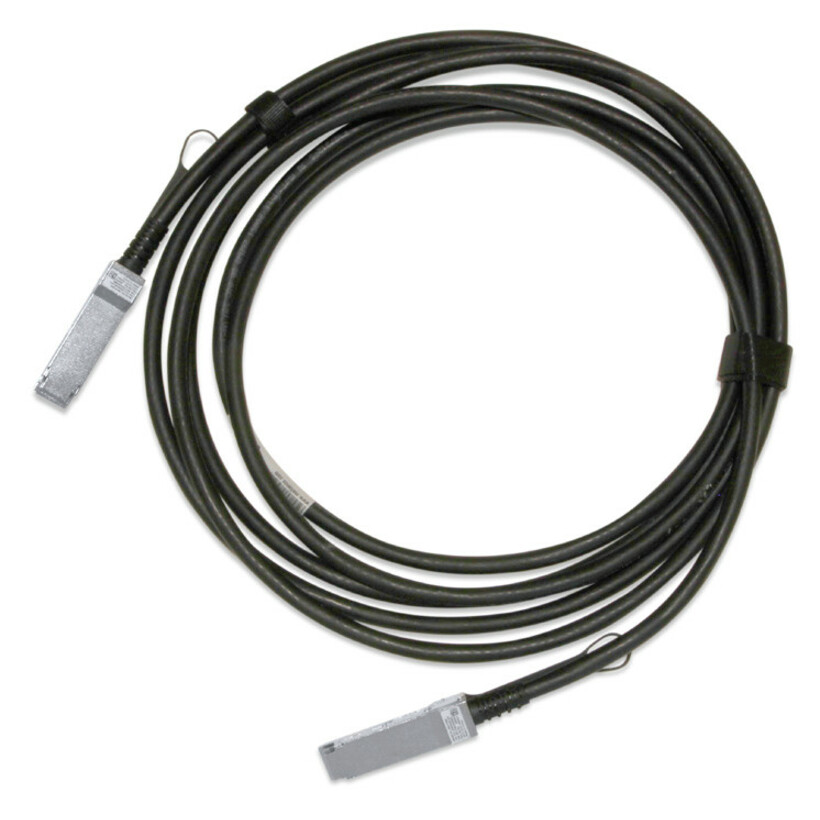

Mellanox® MCP1600-E0xxEy DAC cables are high speed, cost-effective alternatives to fiber optics in InfiniBand 100Gb/s EDR applications.
Mellanox QSFP28 passive copper cables contain four high-speed copper pairs, each operating at data rates of up to 25Gb/s. Each QSFP28 port comprises an EEPROM providing product information, which can be read by the host system.
Mellanox's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. It enables higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability.
- Up to 100Gb/s data rate
- SFF-8665 compliant QSFP28
- Operating case temperature 0-70°C
- Single 3.3V supply voltage
- Bit Error Rate (BER) better than 1E-15 with Mellanox systems
- Hot pluggable
- RoHS compliant
- LSZH (Low Smoke Zero Halogen) jacket
- LF (Lead Free) HF (Halogen Free) PCB
- SFF-8636 compliant I2 C management interface
| Brand | |
|---|---|
| Brand | NVIDIA Corporation |
| Appearance | |
|---|---|
| Color | Black |
| General Features | |
|---|---|
| Data Transfer Rate | 100 Gbit/s |
| Manufacturer | NVIDIA Corporation |
| Cables | |
|---|---|
| Cable Length | 3.28 ft |
| Cable Type | QSFP28 |
| Connector Type on First End | SFF-8665 QSFP28 Network |
| Connector on First End Details | 1 x SFF-8665 QSFP28 Network |
| Connector Type on Second End | SFF-8665 QSFP28 Network |
| Jacket Type | LSZH |
| American Wire Gauge | 30 AWG |
| Number of Pairs | 4 |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Brand | NVIDIA Corporation |
| GTIN | 7290108486193 |
| MPN | MCP1600-E001E30 |
| Unit Count | 1 Units |
| Warranty | 1 Year |
| Return Policy | This product is eligible for 30-day returns. See our return policy for details. |
