High Resolution Display
It offers a resolution that is four times higher than FHD, satisfying customers visually. Additionally, the anti-glare coating on the screen reduces screen reflection in bright lighting environments, increasing visibility and legibility, providing customers with a comfortable screen.
Comprehensive Security
webOS Signage goes beyond security measures at the operating system (OS) level. LG Shield employs a five-tiered defense system, encompassing server, application, operating system, system, and hardware. Each layer operates independently, providing comprehensive protection against various threats. Also webOS platform support ETSI EN 303 645.
Multi-Screen Play with 4K OSD
The new webOS platform supports detailed text-based content playback with 4K OSD, ensuring that 4K app content is displayed smoothly. Thanks to its powerful CPU and GPU performance, it can deliver seamless content playback, even when handling graphics and data-intensive tasks. Additionally, the multi-screen feature offers 4-screen streaming capabilities, enhancing the overall user experience.
Smooth Content Play
Experience seamless 4K playback with UP5Q-E, ensuring smooth content transitions. With 32GB storage, it offers efficient file transfer through USB 3.0, reducing potential delays in content playback and updates.
Convenient webOS Platform
The UP5Q-E is equipped with a high-performance SoC that allows for multiple tasks to be performed without a separate media player. The webOS platform provides app development tools with an intuitive UI that enhances user convenience, enabling easy connection with external sensors and webOS partner apps to create an SI-friendly environment.
Sturdy Design with Fire Flame Resistance
The outer cover of the product is designed to effectively resist fire flame spread, making the product a great fit for installation in public spaces.
Durability that Provides Reliability
Optimized for business environments, the UP5Q-E is protected against salt, dust, iron powder, and humidity due to conformal coating applied specifically to selected areas of the power board. Additionally, its customercentric features such as IP5x, 30-degree tilting, and Shock Monitoring provide both reliability and satisfaction.
SuperSign Solutions
SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that fits you.

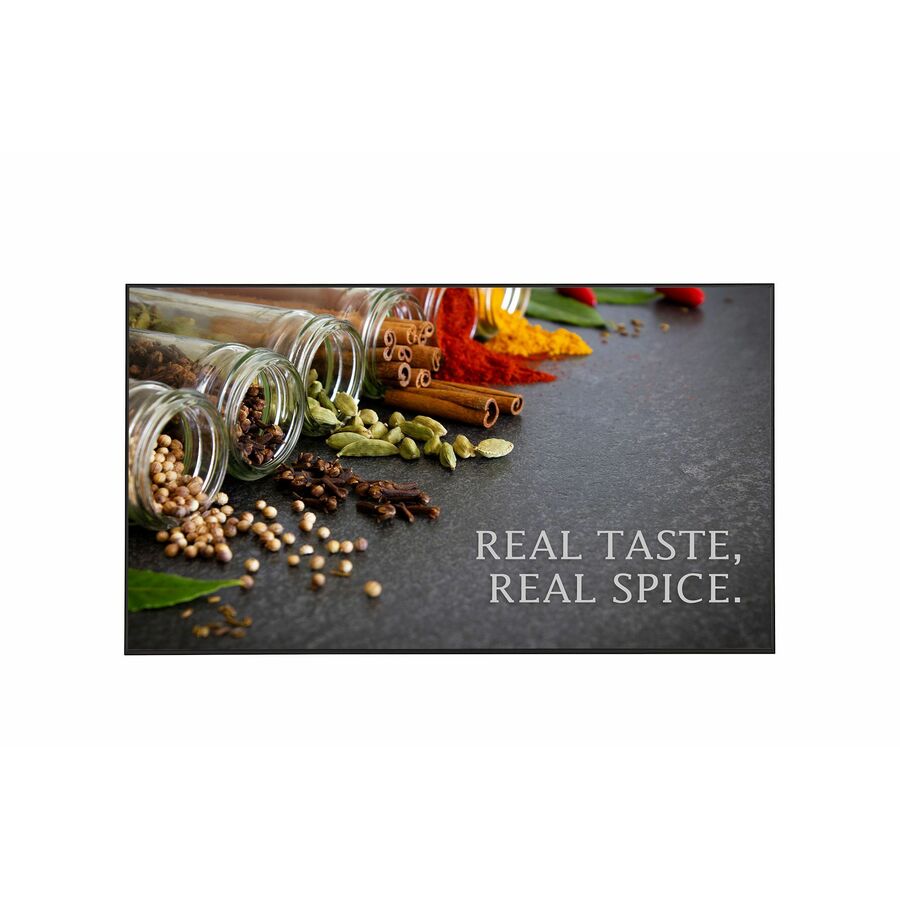

Eye-Catching Large Screen
A large screen effectively captures people's attention as UP5Q-E offers 75/86-inch sizes.
- Resolution : 3,840 � 2,160 (UHD)
- Brightness : 500 nits (Typ.)
- Bezel Width : 12.9 mm (Even)
- Surface Treatment (Haze) : 25%
| Brand | |
|---|---|
| Brand | LG Electronics |
| GPU / Graphics | |
|---|---|
| Number of Screens | 1 |
| Screen / Display | |
|---|---|
| Native Contrast Ratio | 1 , 200:1 |
| Dynamic Contrast Ratio | 000 , 000:1 , 1 |
| On Screen Display (OSD) Langu | Arabic |
| Screen Size Class | 75" |
| Viewable Screen Size | 75" |
| Backlight Technology | Edge LED |
| Display Resolution | 3840 x 2160 |
| Display Screen Type | LCD |
| Aspect Ratio | 16:9 |
| Panel Technology | Advanced Super Dimension Switch ( ADS ) |
| Brightness | 500 Nit |
| Response Time | 8 ms |
| Color Gamut | 95% BT.709 |
| Color Depth | 8-bit+FRC |
| Power & Battery | |
|---|---|
| Input Voltage | 230 V AC |
| Off-Mode Power Consumption | 500 mW |
| Networking & Connectivity | |
|---|---|
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Ethernet | Yes |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB 2.0 Ports | 1 |
| Number of USB 3.0 Ports | 1 |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Number of HDMI Inputs | 3 |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Por | 1 |
| Size / Dimensions | |
|---|---|
| VESA Mount Standard | 600 x 400 |
| Mount Type | Wall Mountable |
| Mount Surface | Wall |
| Orientation | Landscape/Portrait |
| Bezel Width | 0.51" |
| Appearance | |
|---|---|
| Bezel Color | Black |
| General Features | |
|---|---|
| Operation Hours | 24 Hours/7 Days |
| Maximum Heat Generation | 889.4 kJ |
| Manufacturer | LG Electronics |
| Maximum LED Life | 5.7 Year |
| Misc Ports | |
|---|---|
| Serial | Yes |
| RS-232C Input | Yes |
| RS-232C Output | Yes |
| Printer/Scanner/Fax Specs | |
|---|---|
| Scan Format | 2160p |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Humidity | 80% |
| Minimum Operating Humidity | 10% |
| Energy Star | Yes |
| Ingress Protection (IP) Rating | IP5X |
