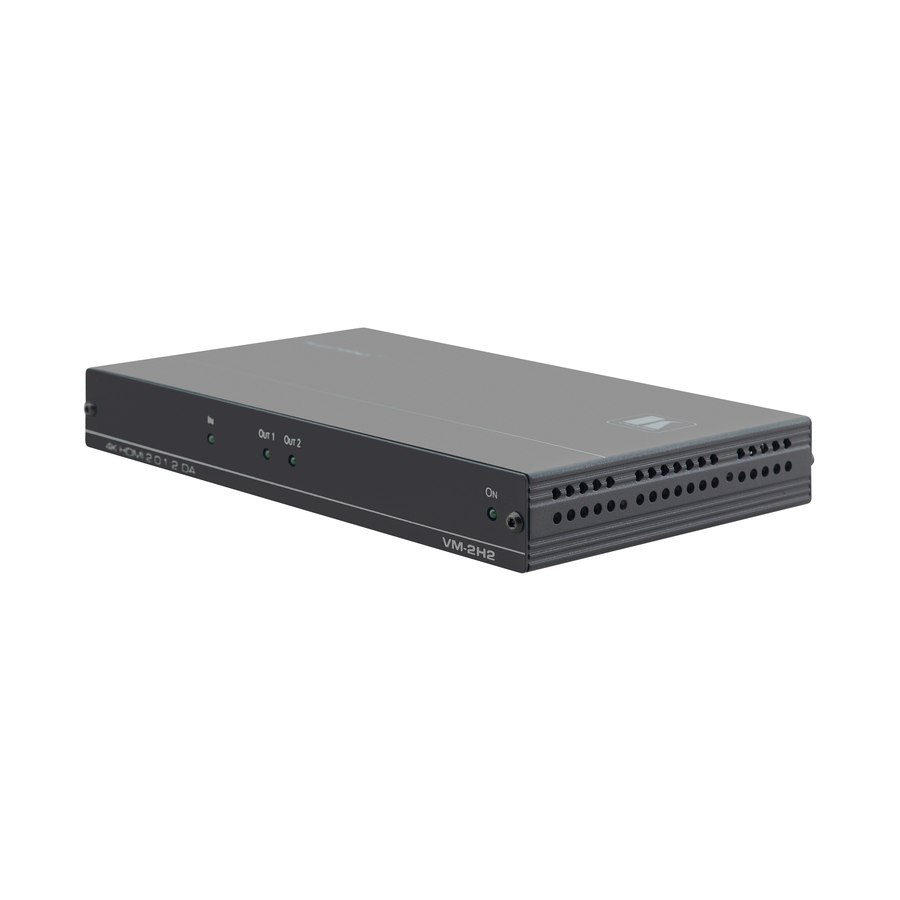

VM-2H2 is a 1:2 distribution amplifier for up to 4K HDR, HDMI 2.0 signals that comply with HDCP 2.2 content protection standard. The unit takes one HDMI input, equalizes and reclocks the signal and distributes it to two identical outputs.
- Max. Data Rate - 17.82Gbps (5.94Gbps per graphic channel).
- Max. Resolution - 4K@60Hz (4:4:4).
- HDMI Signal Transmission - HDR, HDMI 2.0 and HDCP 2.2 compliant signal, supporting deep color, x.v.Color™, lip sync, 7.1 PCM, Dolby TrueHD, DTS-HD, CEC (OUT 1 only), 2K, 4K, and 3D.
- I-EDIDPro™ Kramer Intelligent EDID Processing™ - An intelligent EDID handling, locking, processing and pass-through algorithm ensures Plug and Play operation for HDMI source and display systems.
- Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
- Force RGB - When the display lacks YCbCr capabilities, the user can force native delivery of the RGB color format in HDMI content to improve picture quality.
- Selectable HDCP Authorization - Allows the user to control the appearance of an HDCP or non-HDCP input to the source to permit delivery of protection-free content, such as personal clips and charts, without HDCP encryption. HDCP protected content is not passed in non-HDCP mode.
- Field Maintenance - RS-232 connection for simple field firmware upgrade with Kramer K-Upload tool, easy EDID handling with Kramer EDID-Designer tool, status indicators for HDMI input and output connected signals, and power indicator, for ease of maintenance and troubleshooting.
- Easy Installation - Compact Mega TOOLS™ fan-less enclosure for over-ceiling mounting, or side-by-side rack mounting.
Applications
- Simple distribution of high-resolution 4K signals in corporate, education, hospitality and government market segments
- This Audio/Video Distribution Amplifier split audio and video signals so that they can run from a single source towards multiple systems
- 4096 x 2160 resolution for high-quality video delivery
- Features HDMI input to get connected with the top of the line HDMI supported devices
- Features HDMI port for delivering and transferring high-quality picture and sound simultaneously at a high-speed.
| Brand | |
|---|---|
| Brand | Kramer Electronics LTD |
| Power & Battery | |
|---|---|
| Input Voltage | 5 V DC |
| HDMI Ports | |
|---|---|
| HDMI Out | Yes |
| HDMI In | Yes |
| Number of HDMI Outputs | 2 |
| Number of HDMI Inputs | 1 |
| Appearance | |
|---|---|
| Color | Not Specified |
| General Features | |
|---|---|
| Manufacturer | Kramer Electronics LTD |
| Maximum Video Resolution (Content) | 4096 x 2160 |
| Misc Ports | |
|---|---|
| Number of Serial Ports (External) | Yes |
| Brand | Kramer Electronics LTD |
| GTIN | 7291063079147 |
| MPN | 10-804080190 |
| Unit Count | 1 Units |
| Return Policy | This product is eligible for 30-day returns. See our return policy for details. |
