The GCS1808 Combo KVM Switch allows access and control of up to 64 computers from a single console (keyboard, mouse, and monitor). As many as 8 additional switches can be cascaded bringing the total number of connected computers to 64 computers that can be controlled from a single keyboard-monitor-mouse console. A custom ASIC (patent pending) provides an auto-sensing function that recognizes the position of each station on the installation, eliminating the need to manually set the position with DIP switches.
- Easy to operate - computer selection via front panel LED's, intuitive OSD (on screen display) and hotkeys
- Multi-platform OS support - Windows®, Mac, Oracle® Solaris and Linux®
- Rack mountable in a 19" (1U) system rack
- Broadcast Mode to send commands to all connected computers
- Security - 2 level password protection for OSD
- Auto Scan Mode to monitor connected computers
- Front USB Port - for system upgrades
- Cascade up to 2 levels - control up to 128 computers from a single console
- 8-Port VGA KVMP with USB and PS/2 Interface
- Maximum video resolution: up to 2048 x 1536
| Brand | |
|---|---|
| Brand | IOGEAR |
| GPU / Graphics | |
|---|---|
| Graphic Mode | QXGA |
| Networking & Connectivity | |
|---|---|
| Daisy Chain Supported | Yes |
| Camera / Webcam | |
|---|---|
| Maximum Video Resolution | 2048 x 1536 |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| General Features | |
|---|---|
| Manufacturer | IOGEAR, Inc |
| Number of Computers Supported | 8 |
| Compliance & Certification | |
|---|---|
| Maximum Operating Temperature | 122°F (50°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |

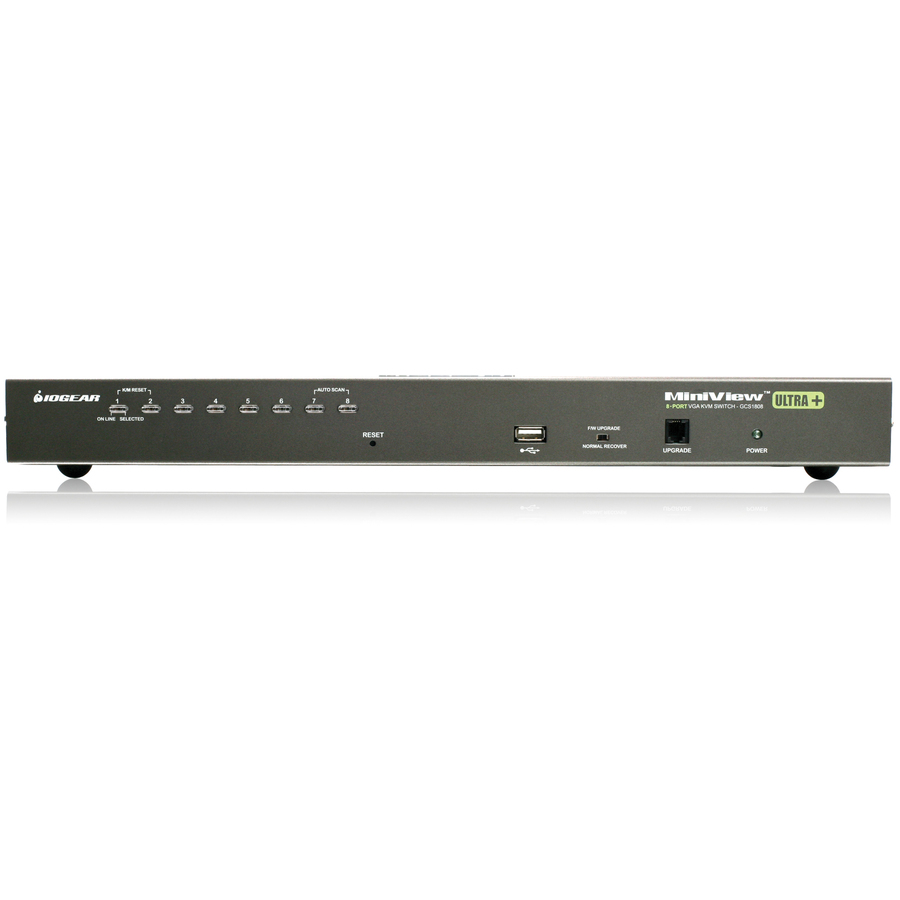

IOGEAR GCS1808 Combo KVM Switch - 8 x 1 - 8 x SPDB-15 Keyboard/Mouse/Video - 1U - Rack-mountable
