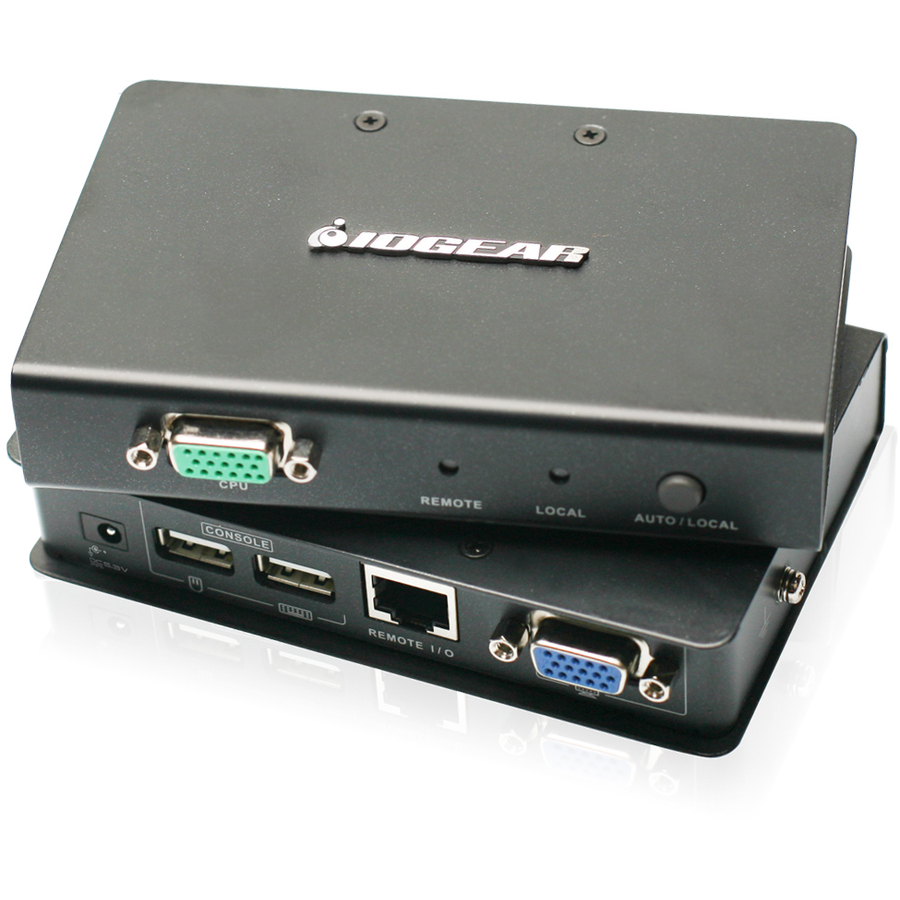

The Iogear's GCE500U KVM Cosole/Extender allows access to a PC with USB or USB KVM switch from a remote USB VGA console (VGA monitor, USB keyboard, and USB mouse) via Cat5e/6 cable up to 500 feet away. This unit is perfect for moving the console away from the computer or the KVM switch. Your console can be moved out of the server room to a location that may be more comfortable and quieter.
- Plug-N-Play - No need for any software driver installation
- Rack Mountable (rack mount kit included)
- Easy To Operate - Push button selection between local and remote console
- USB over-current detection and prevention
- Built-in 8KV ESD protection and 2KV surge protection
- Maximum video resolution up to:1920 x 1200 @ 60Hz (100 ft. - 30m),1600 x 1200 @ 60HZ (330 ft. - 100m),1280 x 1024 @ 60Hz (500 ft. - 150m)
- Dual Console Operation - Control your system from either the local or remote console
- Built-in Application-Specific Integrated Circuit (ASIC) for greater reliability and compatibility
- Auto Signal Compensation (ASC) helps make installation easy, with no need to configure DIP switches
- Extend your KVM console (VGA monitor, USB keyboard & mouse) connection up to 500 ft. via CAT5e cables
| Brand | |
|---|---|
| Brand | IOGEAR |
| GPU / Graphics | |
|---|---|
| Graphic Mode | WUXGA |
| Power & Battery | |
|---|---|
| Input Voltage | 5.3 V DC |
| Networking & Connectivity | |
|---|---|
| Connectivity Technology | Wired |
| USB Ports | |
|---|---|
| USB | Yes |
| Number of USB Ports | 4 |
| Ethernet Port | |
|---|---|
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Software & Licensing | |
|---|---|
| Number of Local Users Supported | 1 |
| Number of Remote Users Supported | 1 |
| Size / Dimensions | |
|---|---|
| Form Factor | Rack-mountable |
| Appearance | |
|---|---|
| Color | Not Specified |
| General Features | |
|---|---|
| KVM Technology | Analog |
| Maximum Operating Distance | 500 ft |
| Manufacturer | IOGEAR, Inc |
| Maximum Video Resolution (Content) | 1920 x 1200 |
| Number of Computers Supported | 1 |
| Video Ports | |
|---|---|
| VGA | Yes |
| Number of VGA Ports | 2 |
| Misc Ports | |
|---|---|
| Proprietary Interface | Yes |
| Compliance & Certification | |
|---|---|
| Environmentally Friendly | Yes |
| Brand | IOGEAR, Inc |
| UPC/GTIN | 881317506016 |
| MPN | GCE500U |
| Unit Count | 1 Units |
| Warranty | 3 Year |
| Return Policy | This product is eligible for 30-day returns. See our return policy for details. |
