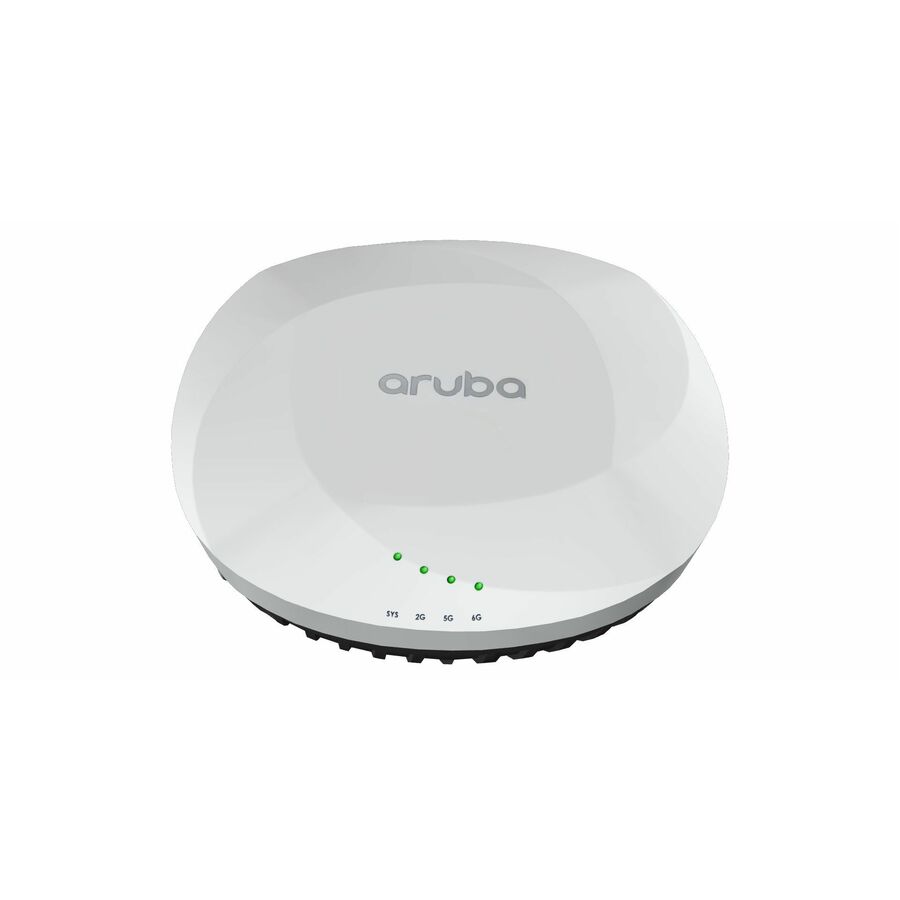

HPE Aruba Networking 610 series Wi-Fi 6E campus access points
Fast, resilient, and secure Wi-Fi 6E connectivity in a compact and affordable platform
For enterprises who need more wireless capacity and/or wider channels, HPE Aruba Networking 610 Series Campus APs are designed to take advantage of the newly available 6 GHz spectrum using a unique dual-radio/tri-band architecture. Adding support for the 6 GHz band to the traditional 2.4 GHz and 5 GHz bands more than doubles the available wireless capacity in a wireless network - so you can meet growing demand due to bandwidth-hungry video, increasing numbers of client and IoT devices, and growth in cloud.
Unique to the 610 Series features two radios that can be tuned to any two of the three available spectrum bands for Wi-Fi (2.4 GHz, 5 GHz, 6 GHz).
This flexibility provides a cost-effective and compact platform that delivers full tri-band coverage as part of a multi-AP deployment and can be used with software that will intelligently and flexibly configure the radios of each of these dual-radio APs.
More capacity and wider channels
The 610 Series APs are designed to take advantage of Wi-Fi 6E and the 6 GHz band, which translates into far greater speeds, wider channels for multi-gigabit traffic, and less interference. Its two 2x2 MIMO radios deliver a combined peak data rate of up to 3.6 Gbps when configured for concurrent 5 GHz and 6 GHz operation.
Advantages of 6 GHz
Wi-Fi 6E provides up to 1200 MHz of additional unlicensed spectrum in the 6 GHz band for higher throughput and improved application performance. With up to seven 160 MHz channels, Wi-Fi 6E can better support low-latency, bandwidth hungry applications like high-definition video and augmented reality/virtual reality applications. Only Wi-Fi 6E capable devices can use the 6 GHz band so there is no interference or slowdowns due to legacy devices.
Device class support
The 610 Series APs are part of the low power indoor (LPI) device class. This fixed indoor-only class uses lower power levels and does not require an Automated Frequency Coordination service (AFC) to manage incumbent outdoor services, which is required for standard class APs.
- Wireless access point supports deployment of a reliable wireless network, helping enable stable data communication across business environments
- IEEE 802.11 a/b/g/n/ac/ax wireless LAN standard defines connection compatibility, helping enable stable communication across supported wireless networks
- 2.5 Gigabit Ethernet Ethernet technology supports wired connectivity, helping provide stable communication with connected network devices
- Ceiling Mountable form factor supports convenient handling, helping improve placement reliability
- 3.60 Gbit/s wireless transmission speed supports fast data exchange, helping maintain reliable wireless communication
- Internal antenna form factor supports flexible placement options, helping optimize signal coverage within different installation layouts
- Data Encryption supports secure handling of network data, helping maintain consistent data protection
- PoE PD port supports device operation from the PoE source, helping eliminate reliance on nearby power outlets
| Brand | |
|---|---|
| Brand | Hewlett Packard Enterprise |
| Power & Battery | |
|---|---|
| Maximum Operating Power Consumption | 12.50 W |
| Networking & Connectivity | |
|---|---|
| Wi-Fi Generation | Wi-Fi 6E |
| Bluetooth Standard | Bluetooth 5 |
| Beamforming Technology | Yes |
| MIMO Technology | Yes |
| Wireless Transmission Speed | 3.60 Gbit/s |
| Frequency Band | 2.40 GHz |
| Network Band | Tri Band |
| USB Ports | |
|---|---|
| USB | Yes |
| USB Standard | USB 2.0 Type A |
| Ethernet Port | |
|---|---|
| Number of Network (RJ-45) Ports | 1 |
| PoE PD Port | Yes |
| Size / Dimensions | |
|---|---|
| Form Factor | Ceiling Mountable |
| Antenna Form Factor | Internal |
| Maximum Height Adjustment (Above) | 1.5" |
| Appearance | |
|---|---|
| Color | Not Specified |
| Security | |
|---|---|
| Data Encryption | Yes |
| Encryption Standard | WPA2-SAE |
| General Features | |
|---|---|
| AI-powered | Yes |
| Indoor/Outdoor | Indoor |
| Manufacturer | Hewlett Packard Enterprise |
| Brand | Hewlett Packard Enterprise |
| UPC/GTIN | 190017702889 |
| MPN | S3J34A |
| Unit Count | 1 Units |
| Return Policy | This product is eligible for 30-day returns. See our return policy for details. |
