WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, a copper plate, 3D active fans, and screen cooling.
ASTONISHING EXTERIOR DESIGN
The GAMING series draws the concept from mech warriors, blending the futuristic armor with mechanical aesthetics to deliver exceptional protection and powerful durability. It goes beyond mere appearances and functionality, offering a profound interpretation of futuristic technology.
MULTI-LAYERED VISUAL
Like armor, the exterior features a multi-layered structure combined with varied surface material finishes.
RGB LIGHTING
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
SLIDING SIDE PLATE
Featuring a power armor design with a sliding side plate, allowing users to customize their build to match their unique style.
This animation is for illustrative purposes only. Actual product appearance may vary.
REINFORCED STRUCTURE
The reinforced metal backplate, securely fastened to the I/O bracket, provides exceptional structural integrity.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.

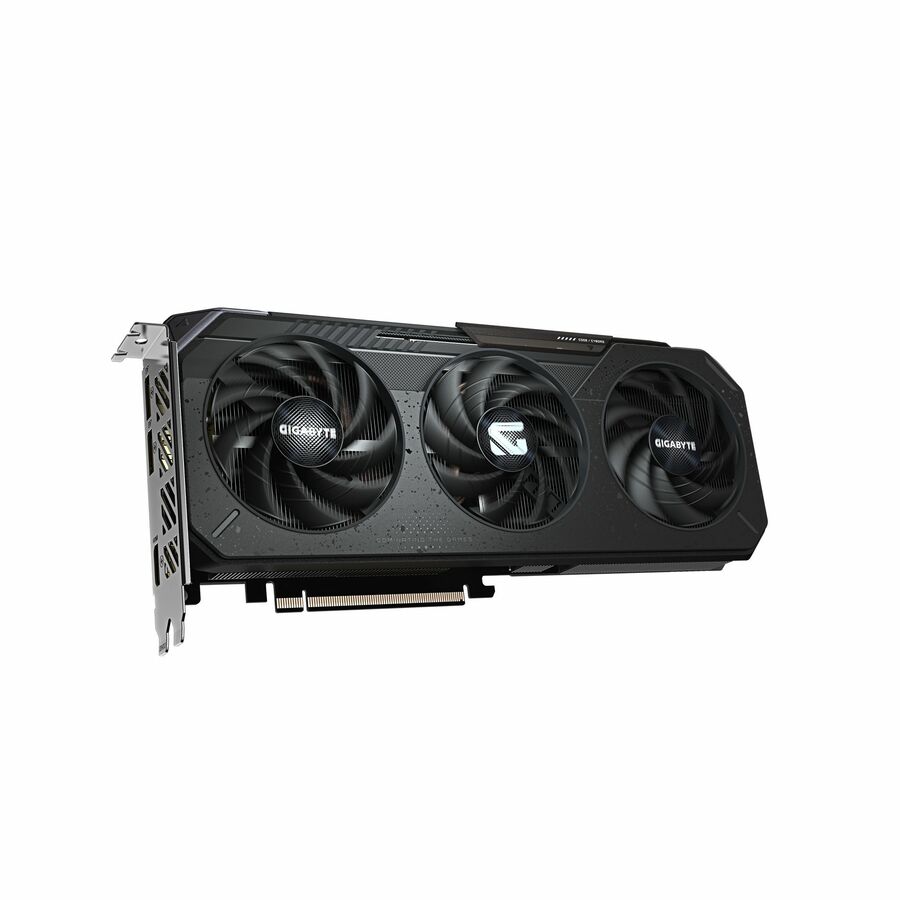

- Powered by Radeon™ RX 9060 XT
- Integrated with 16GB GDDR6 128bit memory interface
- WINDFORCE cooling system
- Hawk fan
- Server-grade thermal conductive gel
- RGB Lighting
- Reinforced structure
| Brand | |
|---|---|
| Brand | GIGABYTE Technology |
| GPU / Graphics | |
|---|---|
| GPU Boost Clock | 3.32 GHz |
| Game Clock | 2.78 GHz |
| Bus Width | 128 bit |
| API Supported | OpenGL 4.6 |
| Number of Monitors Supported | 3 |
| Memory / RAM | |
|---|---|
| Standard Memory | 16 GB |
| Memory Technology | GDDR6 |
| Screen / Display | |
|---|---|
| Maximum Digital Display Resol | 7680 x 4320 |
| Power & Battery | |
|---|---|
| Power Supply Wattage | 450 W |
| Power Connector | 1x 8-pin |
| HDMI Ports | |
|---|---|
| HDMI | Yes |
| Number of HDMI Outputs | 1 |
| DisplayPort | |
|---|---|
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 2 |
| Size / Dimensions | |
|---|---|
| Form Factor | Plug-in Card |
| General Features | |
|---|---|
| Chipset Manufacturer | AMD |
| Chipset Model | RX 9060 XT |
| Chipset Line | Radeon |
| Chipset Series | RX 9000 |
| AI-powered | Yes |
| Cooler Type | Active Cooler |
| Manufacturer | GIGABYTE Technology, Inc |
| Misc Ports | |
|---|---|
| Host Interface | PCI Express 5.0 |
